Universal Flexible Rubber Ball Joint Offers
Rubber soft joint commonly known as can be bent torsion rubber joint, and its products are widely used in water electric chemical shipping system, main performance high voltage, good elasticity (axial transverse angular displacement) drop noise, light quality, reduce vibration, easy installation, use agile, easy to repair, conversion with acid and alkali - resistant oil characteristics of the shock absorber in use process, resistance to weather natural changes can be automatically extended its structural material using densified nylon cord, the outside using high strength aging polarity rubber materials, to prevent the products in the long-term use of natural atrophy and reduce aging rupture, the mesh wire for many body protection can replace are widely used in power plant water sewage plant chemical metallurgy industry other telescopic products, the China architectural design institute oil ministry of chemical industry, metallurgical department joint inspection check.
Main feature:
1,Small volume, light weight, good flexibility, easy installation and maintenance
2,When installation can produce transverse and axial, angular displacement, not affected by pipeline impassability heart, thread unparallel limit
3,Work can reduce structure transfer noise, vibration absorbing ability
4,We developed the company in seamless pressure rubber joint, in high temperature resistance, acid and alkali resistant, oil resistant pipe more effectively prevent the corrosive medium to rubber joint wall erosion and improve the service life
Technical Conditions :
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

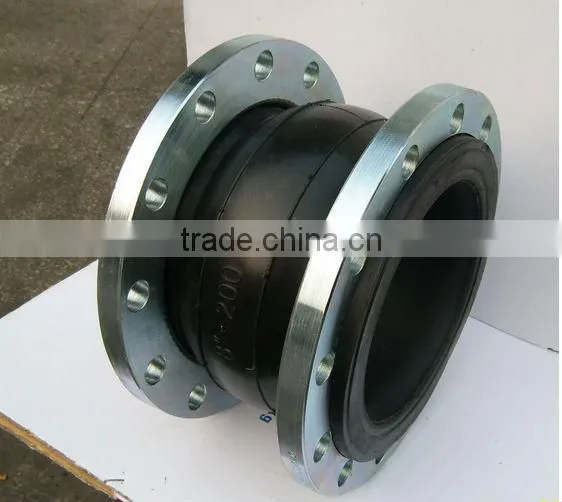

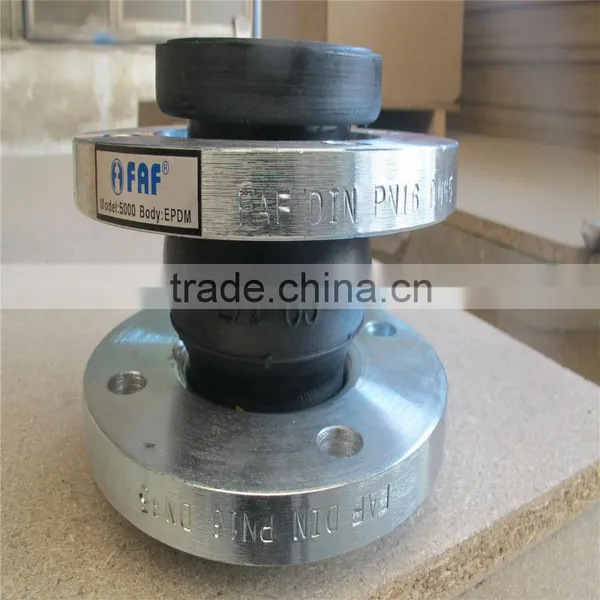

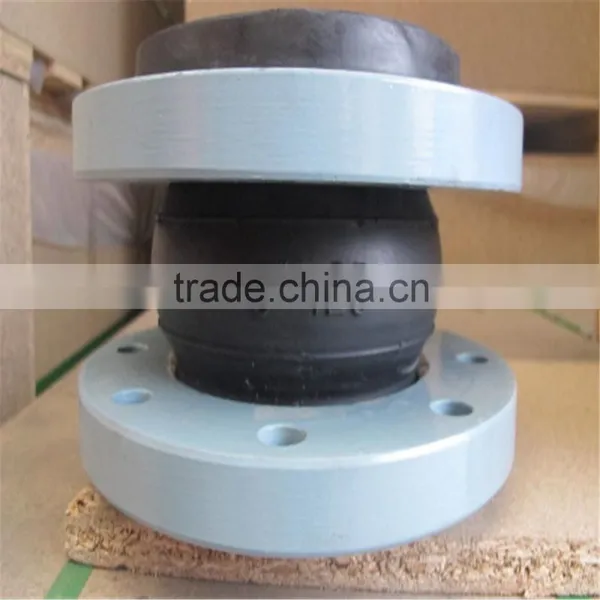

Rubber joint photos show
Installation Instruction of Flexible Rubber Joint
I. Installation over displacement limit is not allowed when installing the flexible compound rubber joint .
II. For ground-horizontally ,suspense and vertically installed rubber joints with over 1.0Mpa pressure,both sides of the pipeline shall have support or support bracket,to avoid fall or damage.
III.The force of fixing support or bracket shall be greater than the axial force of working.Otherwise the anti-fall devise is required .
IV. It shall install the GB/T9115.1(RF) standard flange(small diameter flange) when installing the corresponding flange of flexible compound rubber joints.The size of flange D2 and do shall not be too small for preventing the leakage of sealing face.
V. It shall screw down symmetrically and gradually when installing the flange screw of flexible compound rubber joint,To avoid the partly leakage or damaging the sealing face of the rubber joint.
VI. When the rubber joint is installed vertically or in suspense with over 1.0Mpa pressure ,the screw shall be installed with gasket for preventing partly leakage due to loosened screw.
VII.The flexible compound rubber joint shall have fixing support when vertical installation is made .Heavy press on the rubber joint is forbidden .
All the cargoes under inspection before the shipment.
Conventional packing:
•outside packaging
wooden cases
•inside packaging
carbon cases
Shipping;
.Lead time: about 25-30 days after order is confirmed.
Transport:
There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
Shipping:
1.If the order is urgent, we will try to give the best delivery time;
2.Our delivery time is accurate and fast, it is one of our advantages;
3.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time.
Why us:
Gongyi Huayuan Water supply Equirement Co.,Ltd. is a leading manufacturer of rubber flexible joint in china, we have:
(1) Strong R&D strength;
(2) Strict Quality Control System;
(3) Perfect Test System;
(4) Professional After-sale Service Team;
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
. Gongyi Huayuan Water Supply Equirement Co.,Ltd. is specialized in water supply and drainage equipment, pipe and part.
Through 20 years production history,it is solid in strength and good in quality.
. At present,our products have over 30 types such as JGD flexible synthetic single sphere and double sphere rubber expansion joint,
thread joint, unequal diameter,DN15-DN3000 and so on.
•Our products are subject to stringent checks, so you can rest assured that the quality of products .And our products have gotten high praise from clients domestic and overseas.
Factory show and Cooperative Partners
Our tenet :Your trust is our best honor and we will manufacture high-quality products for you.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Thanks for your attention. For more information, please feel free to contact our me.
