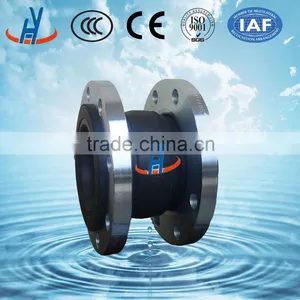

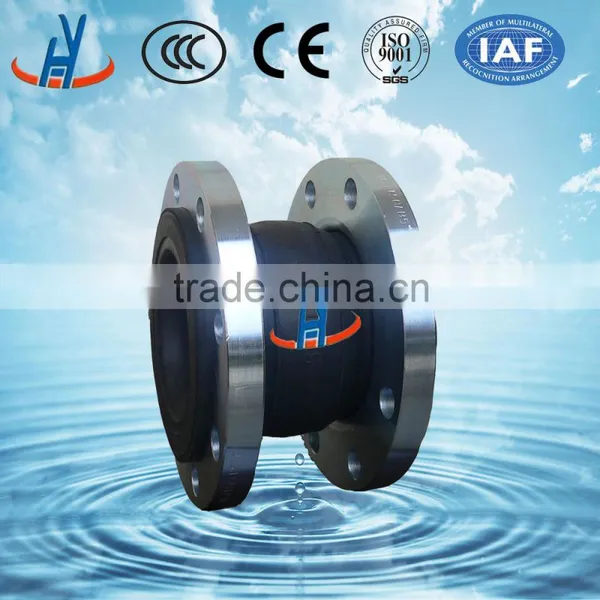

High Temperature Flexible Flange Type Rubber Expansion Joints
♦ Huayuan Rubber Expansion Joint is also called expansion joints or rubber expansion
joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. rubber expansion joints are
flexible connectors made from natural or synthetic elastomers in which special
fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of
movements and requirements of industrial plant and equipment.
Rubber Expansion Joint
♦These include:
Accommodating for pressure loads.
Neutral axial, lateral and angular stress.
Reducing noise.
Isolating sources of vibration.
Compensating for misalignment at plant start up.
Prolonging the life of motive equipment.
They are used in all systems transporting fluids, slurries or gases under pressure, at ambient pressure or under vacuum over a wide range of temperatures.
Technical Conditions of Rubber Expansion Joint:
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
main connecting dimension of Rubber Expansion Joint:
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

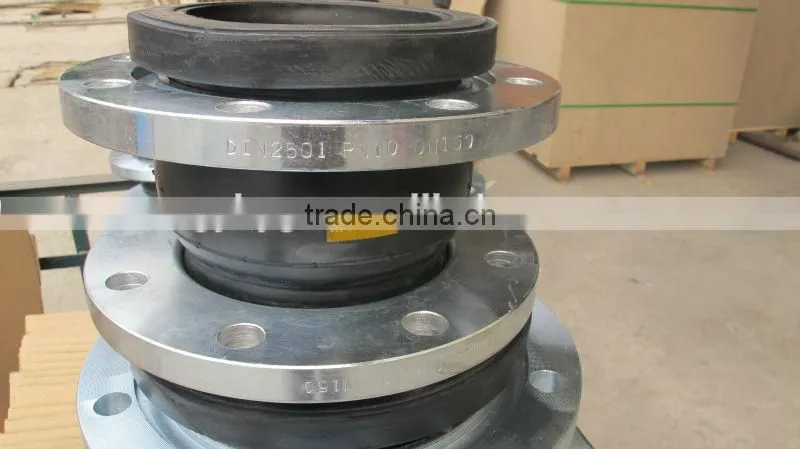

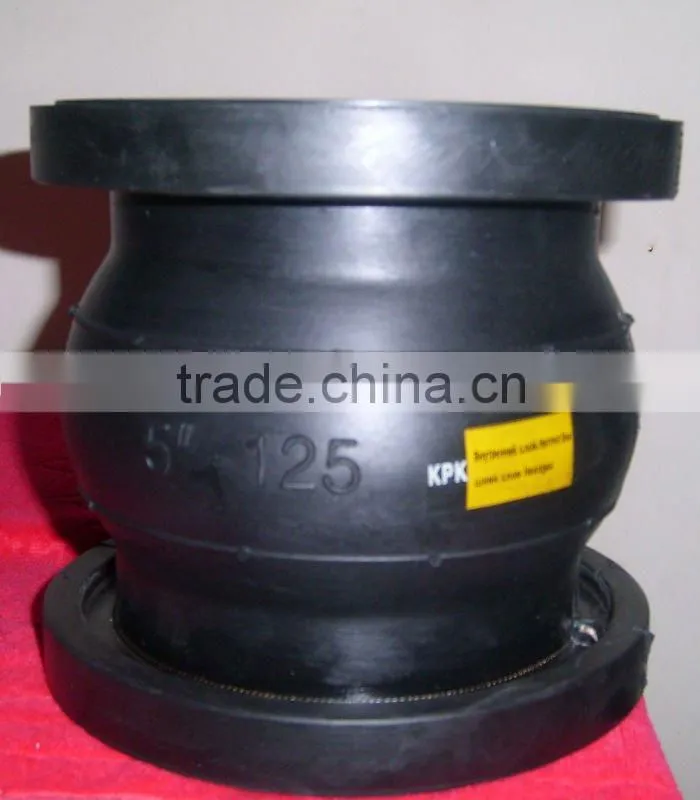

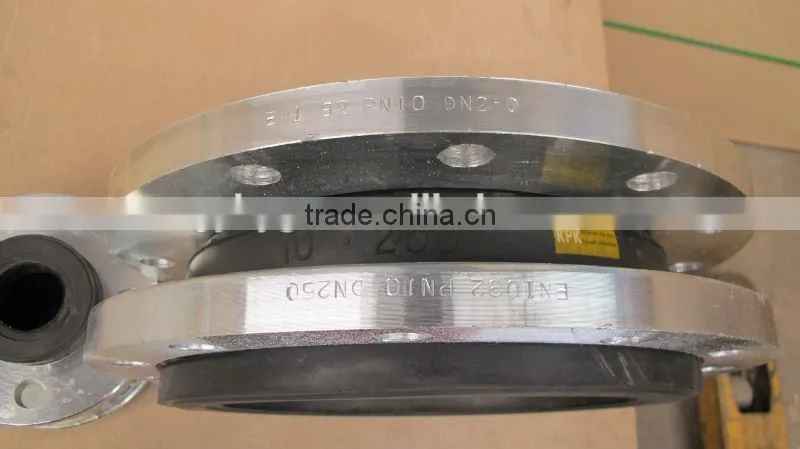

Detailed Photos of Rubber Expansion Joint:
♦Application areas are:
Air conditioning, heating and ventilating systems in industrial buildings, hospitals, hotels and on board ships.
Central and ancillary power generating stations in industrial buildings, factories, ships and off-shore.
Sewage disposal and water treatment plant, pumps, etc.
Process piping in pulp and paper manufacture.
♦ Advantage :
Small volume, light weight, good flexibility, easy installation and maintenance

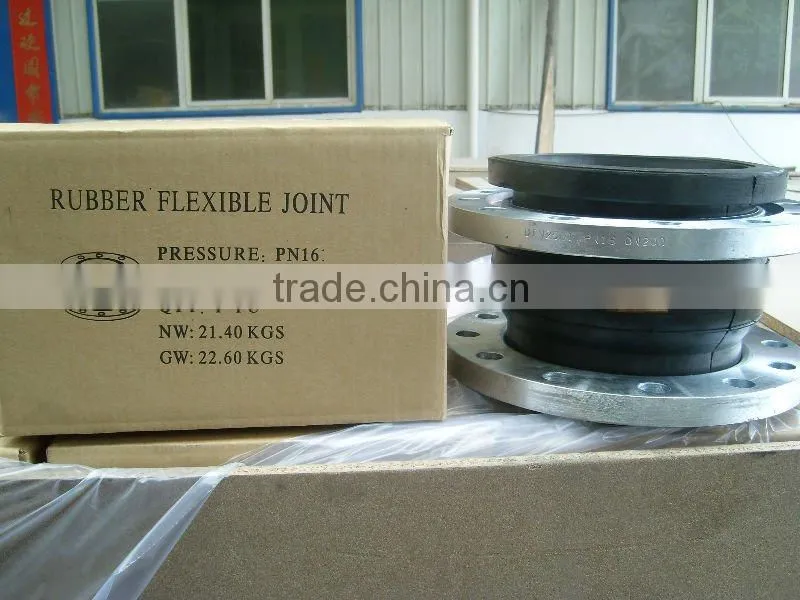

Packaging of Rubber Expansion Joint:
All the cargoes under inspection before the shipment.
Huayuan packs each flexible rubber joint with a separate carton case to prevent the crash of the flanges and rubber hoses, each case painted the name of rubber joint and other details. The carton cases then be filled to plywood cases to ship. Inside of each plywood case, Huayuan always uses moistureproof material to keep the products.
Shipping of Rubber Expansion Joint:
1.Lead time: about 25-30 days after order is confirmed.
2.If the order is urgent, we will try to give the best delivery time;
3.Our delivery time is accurate and fast, it is one of our advantages;
4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time
5.There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
In addition, we can change the shape of the packaging according to customer requirements.
Gongyi Huayuan Water Supply Equirement Co.,Ltd.
Why Us?
Gongyi Huayuan Water Supply Equirement Co.,Ltd. is specialized in water supply and drainage equipment, pipe and part.Through 20 years production history,it is solid in strength and good in quality.It is solid in strength and good in quality.Employees are skilled and experienced.It cooperates with design institutes and research institutions jointly for research and development.The design of product is unique and the structure is rational and updated.
Our services
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
Promise and service from us :
1.Competitive price
2.Reliable quality
3.Shipped the goods on time
4.Meet your special requirements
5.Rich experience
Customer test process
Company Qualifications
Our products have been exported to many countries such as England ,France,America,Australia,Singapore and India etc.
and won a high admiration and is widely trusted at home and abroad. So Product quality is guaranteed.
Our tenet :Your trust is our best honor and we will manufacture high-quality products for you.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And What's your shipment and delivery time?
A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.
Q:And what's your packing?
A: carton cases inside ,export wooden cases outside
You are welcome to browse our website, if you want to know more of Rubber Expansion Joint information or to order our products and please contact me for more details.
