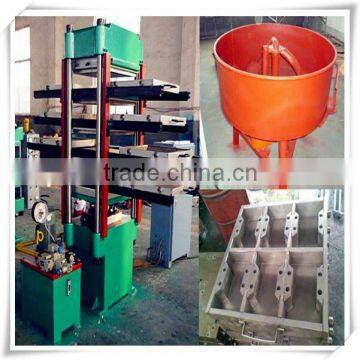

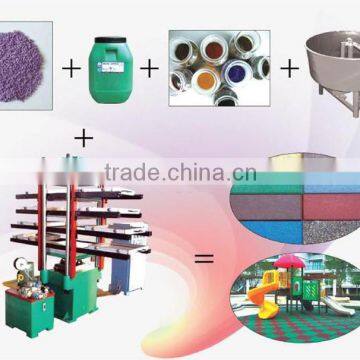

rubber tile production line from waste tire

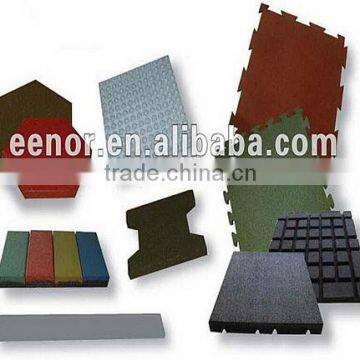

1.The press is used to produce rubber tiles. Each layer s matched with two sets of moulds. So it can be vulcanized batch by batch
2. Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
3.This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and anti-abrasion. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
Type |
XLB-DQ400*400*2 |
XLB-DQ600*600*2 |
XLB-DQ750*850*2 |
XLB-DQ1000*1000*2 |
XLB-DQ1500*1500*2 |
XLB-DQ300*300*2 |
Total pressure |
0.50 MN |
1.00 MN |
1.60 MN |
4.00 MN |
8.00 MN |
0.25 MN |
Plate size |
400*400 mm |
600*600 mm |
750*850 mm |
1000*1000 mm |
1500*1500 mm |
300*300 mm |
Plate clearance |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
2(4) |
2 |
Piston stroke |
250 mm |
250 mm |
250(500) |
250(500) |
250(500) |
250 mm |
Plate pressure |
3.1 Mpa |
2.8 Mpa |
2.5 Mpa |
4.0 Mpa |
3.6 Mpa |
2.1 Mpa |
Motor power |
2.2 kw |
3 kw |
3 kw |
5.5 kw |
5.5 kw |
2.2 kw |
weight |
1300 kg |
3500 kg |
6500 kg |
11000 kg |
22000 kg |
1050 kg |
Above technical data is only for your reference. We can manufacture all kinds of non-standard products as per your specific requests.

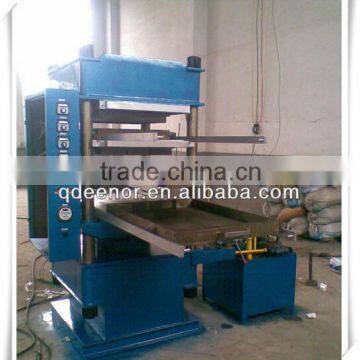

we also have frame structure rubber flooring making machine
this is the picture
