Specifications
1) Open mixing mill is mainly used for mixing rubber and plastic.2) Warranty: 1 year guarantee period.

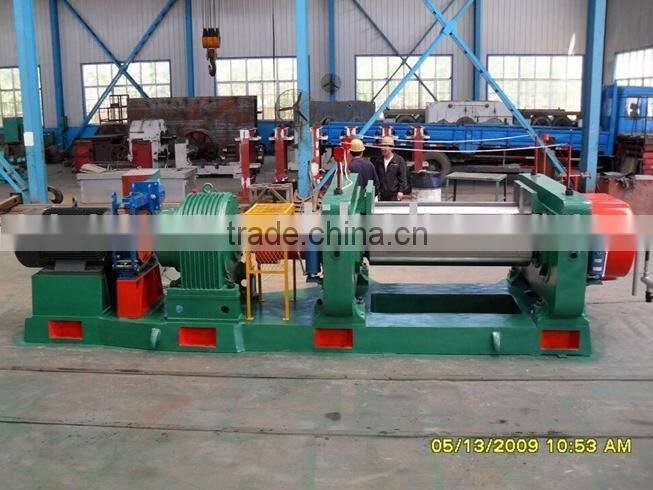

Rubber Open Mixing Mill
1) The machine passed the ISO9001.
2) The machine has highly capacity and reasonable price. It can be easily operated.
3) Features:1. Two rollers are made from Chilled Cast Iron, smooth surface is highly polished and scratch proof by cutting knife, high hardness and wear-resistant 2. The roller is hollow structure, which is for adjusting the temperature of the rollers by steam or cooling water in term of different request 3. Gap adjustment mode: Manual or electric 4. Main bearings: Bearing or Copper bush or Nylon bush 5. The machine is equipped with an overload protection device to prevent the major components from being damaged due to over loading 6. The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rop, and the machine will stop immediately. It is safe and reliable. 7. The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roller.
All type: XK-160,230,250,300,360,400,450,560 and 660.
Type |
Xk-160 |
Xk-250 |
Xk-300 |
Xk-400 |
Xk-450 |
Xk-560 |
Xk-660 |
Working diameter of rolls(mm) |
160 |
250 |
300 |
400 |
450 |
560 |
660 |
Working length of rolls(mm) |
320 |
620 |
750 |
1000 |
1200 |
1530 |
2130 |
Front roll surface speed(m/min) |
8.95 |
14.1 |
15.1 |
18.65 |
24.26 |
27.72 |
28.6 |
Friction ratio |
1:1.35 |
1:1.17 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.24 |
Max.nip(mm) |
4.5 |
8 |
8 |
10 |
15 |
15 |
15 |
Capacity per.batch(kg) |
1-2 |
8-15 |
15-20 |
18-35 |
25-50 |
35-50 |
165 |
|
Motor power (kw) |
5.5 |
18.5 |
22 |
37 |
55 |
90 |
245 |
Overall dimension(mm |
1380*860 *1320 |
3400*1500 *1800 |
3580*1550 *1695 |
4350*1850 *1785 |
5200*2380 *1840 |
5845*2284 *1978 |
7465*3662 *2080 |
Weight(kg) |
1280 |
3500 |
5200 |
7600 |
14000 |
23000 |
49000 |
