9801S Access Control UHF Reader

Name: 9801S Access Control UHF Reader
Brand: M&W MS-9801S access control UHF reader
SKU: 102801631
Availability: InStock

US$ 300 - 450 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

M&W MS-9801S access control UHF reader

Model Number:

MS-9801S access control UHF reader

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name M&W MS-9801S access control UHF reader

Model Number MS-9801S access control UHF reader

Specifications

9801S access control UHF reader
#RS-232,RS-485,Wiegand 26 bits34bits interface
#read distance 8m
#FCC,CMII,TELEC,ETSI
#SDK

9801S access control UHF reader

9801S access control UHF reader Introduce

Built-in 12dBi Horizontal linear Polarization antenna,the max reading distance is 10M
The reader is made of ABS material which have the function of waterproof, anti-jamming, anti-thunder
The reader use for item identification and data acquisition.

9801S access control UHF reader Application:

Transport management:Highway,Railway transport administration and container transportation
Vehicle management
bridge toll fee
Going Through Customs management
Warehousing and Logistics management

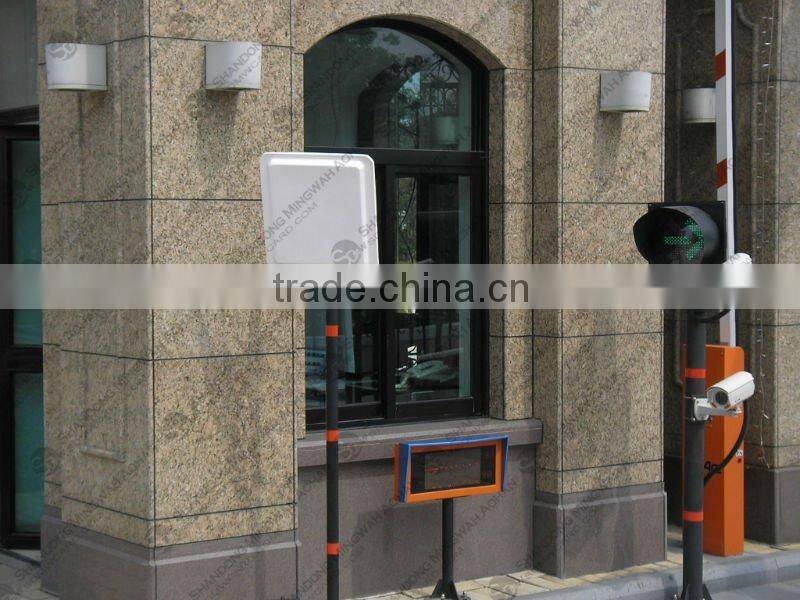

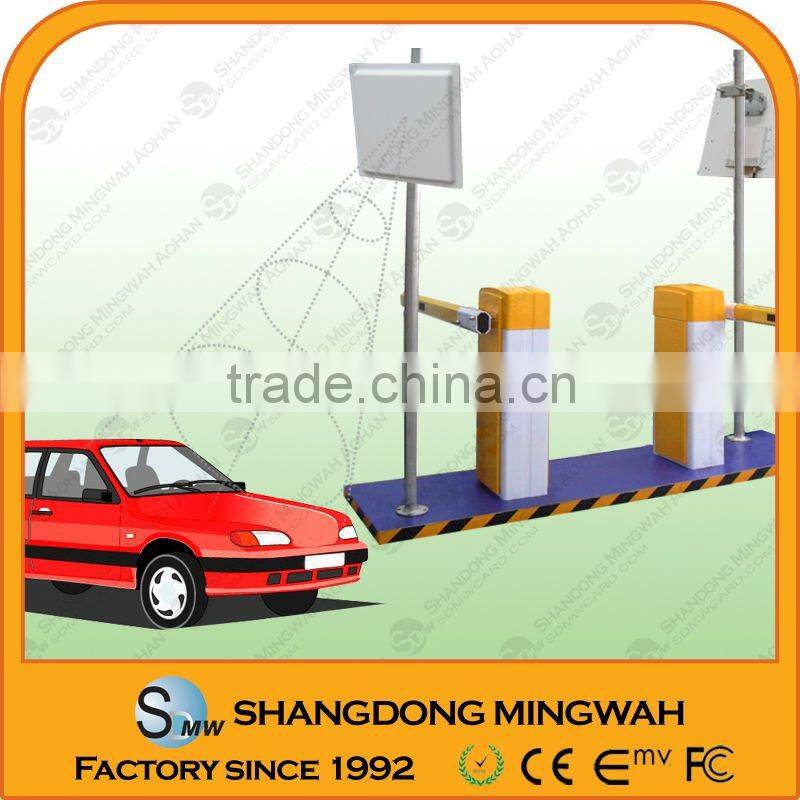

Parking system
Access control
Production processes management
Anti-counterfeiting product

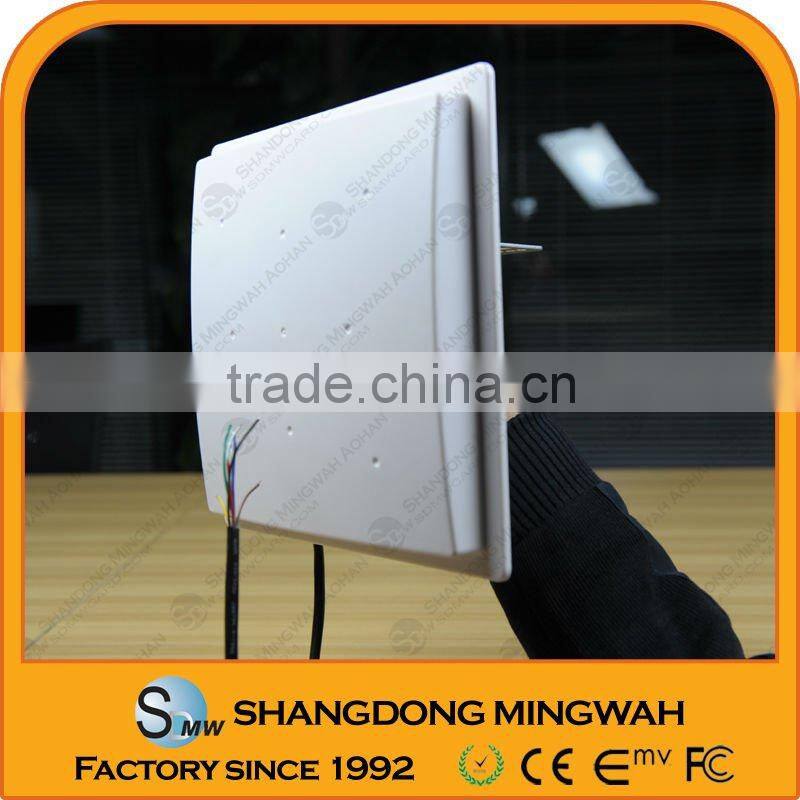

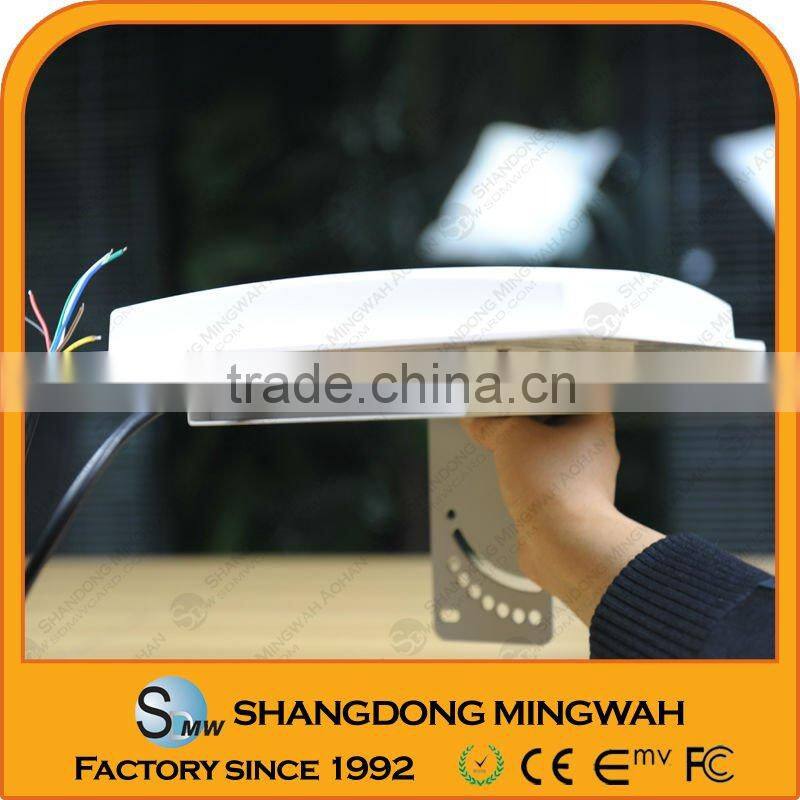

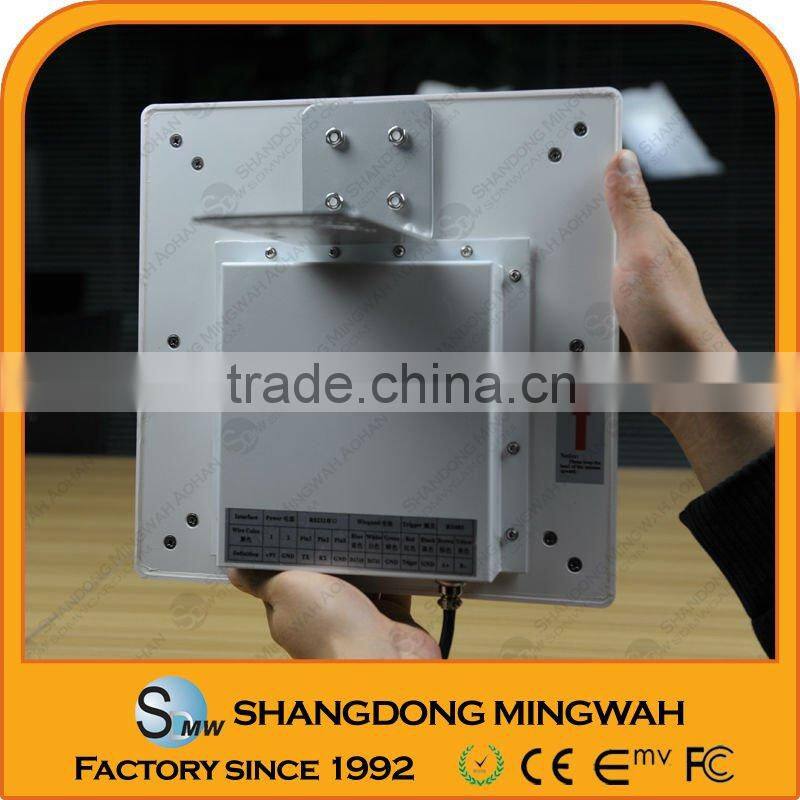

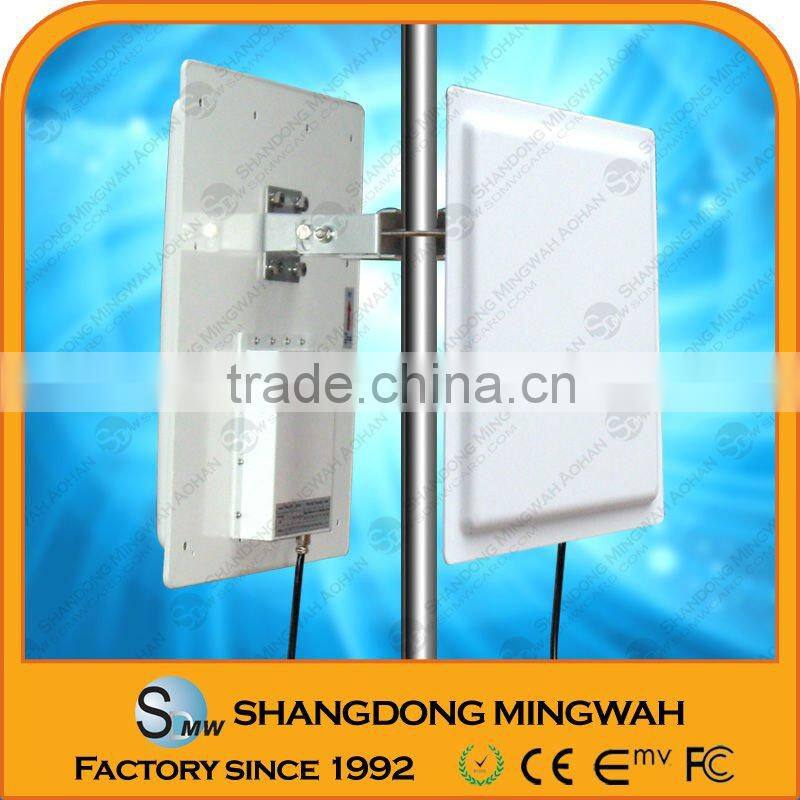

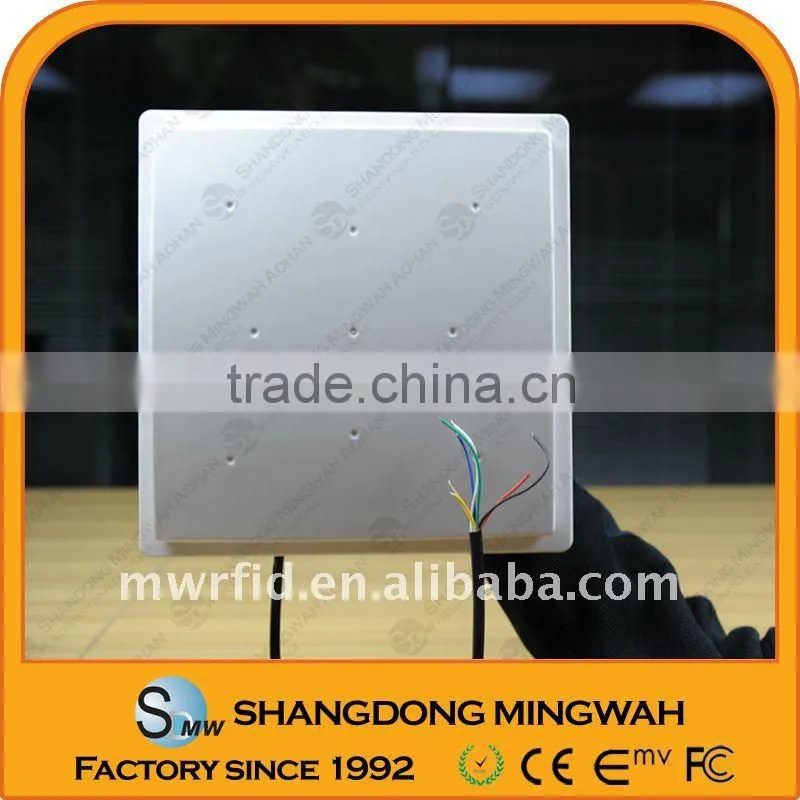

9801S access control UHF reader pictures

9801S access control UHF reader Specification


Work frequency	FCC ISM 902~928MHz or ETSI 865.6 - 867.6 MHz
Work mode	3 Modes: master-slave,timing,Trigger
Power	+15dBm~+32dBm
Antenna	Built-in 12dBi Horizontal linear Polarization
Interface	RS-232,RS-485,Wiegand 26 bits34bits,LAN (optional)
Communication rate	Up to 57,600bps
Tag protocol	Sahara
Reading distance	Depend on the reader and tag
Reading distance	>10M
Writing distance	>5M
Mounting bracket	Two type for choose
Software platform	1)API 2)VB or VC application function
Power supply	+9V~18V DC, less than 3 Amps
Adapter	AC110~220V/DC +12V
Size/Weight	450x450x40 mm 3.4KG
Work temp	-30°C~+75°C
Store temp	-45°C~+95°C
Protect grade	IP65
Certification	FCC CMII TELEC ETSI
