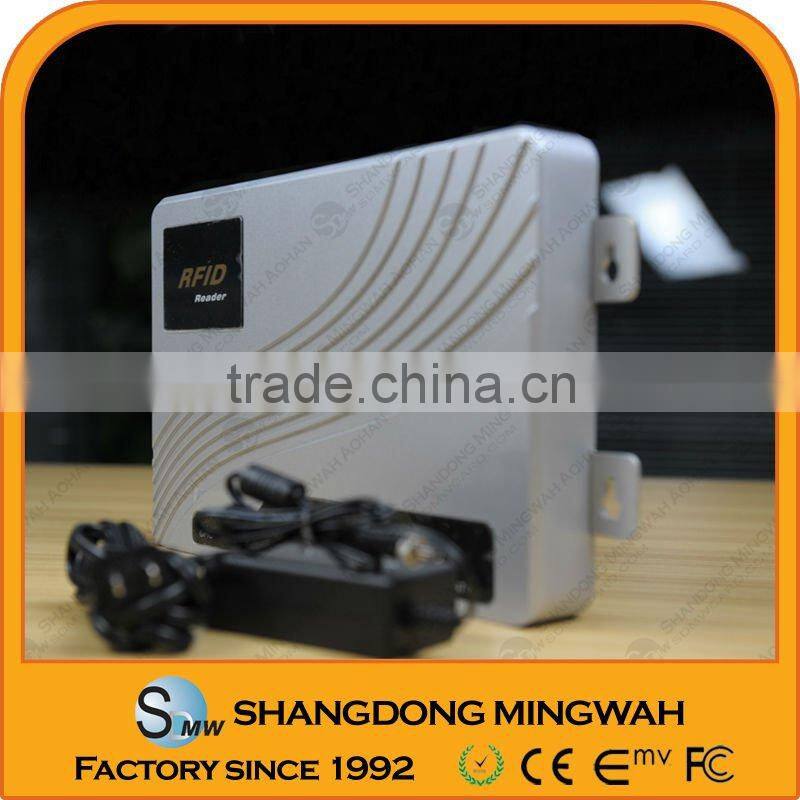

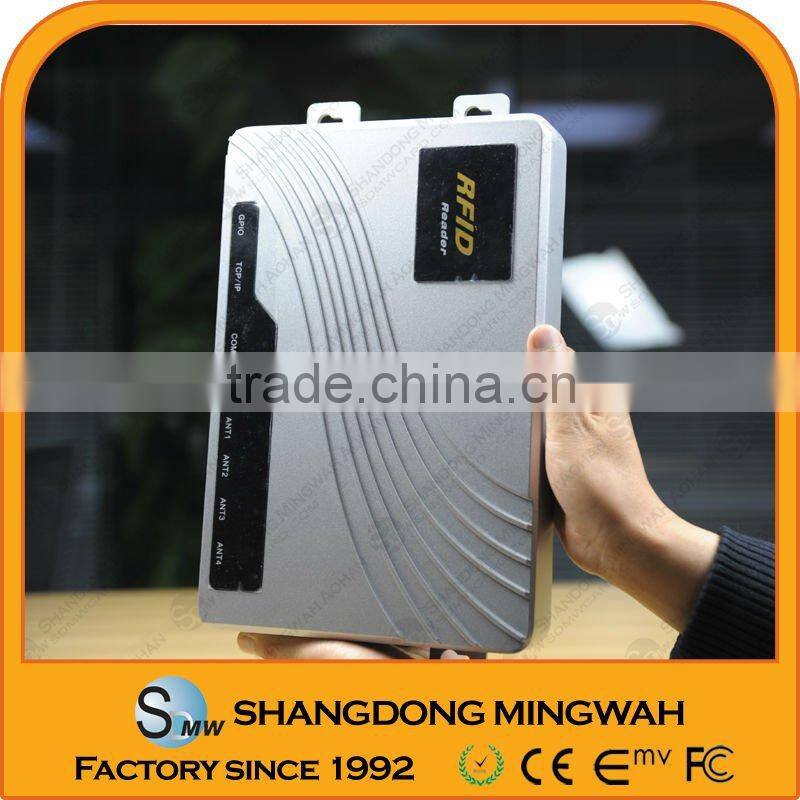

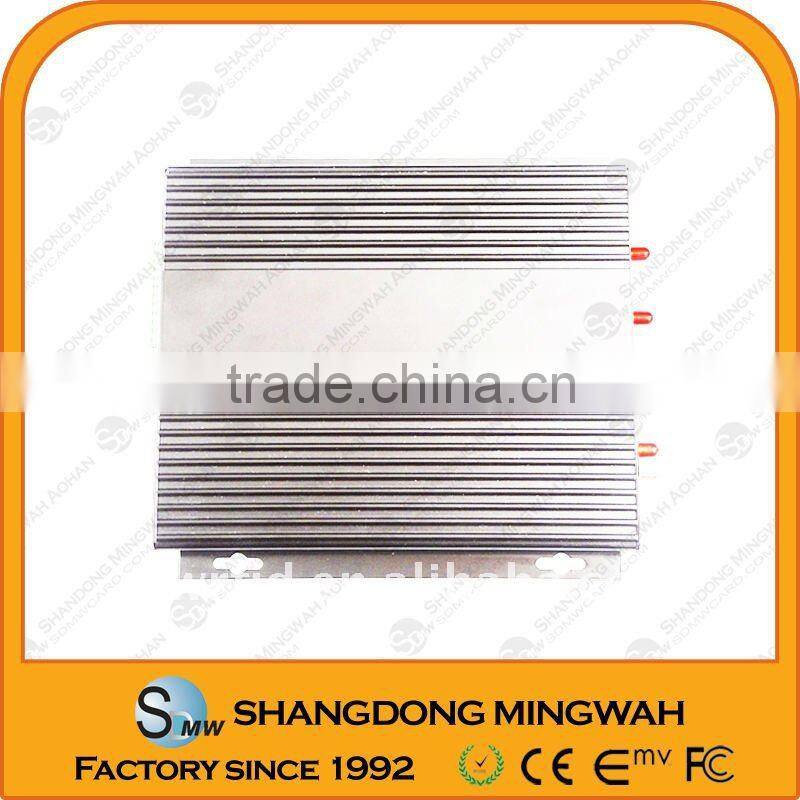

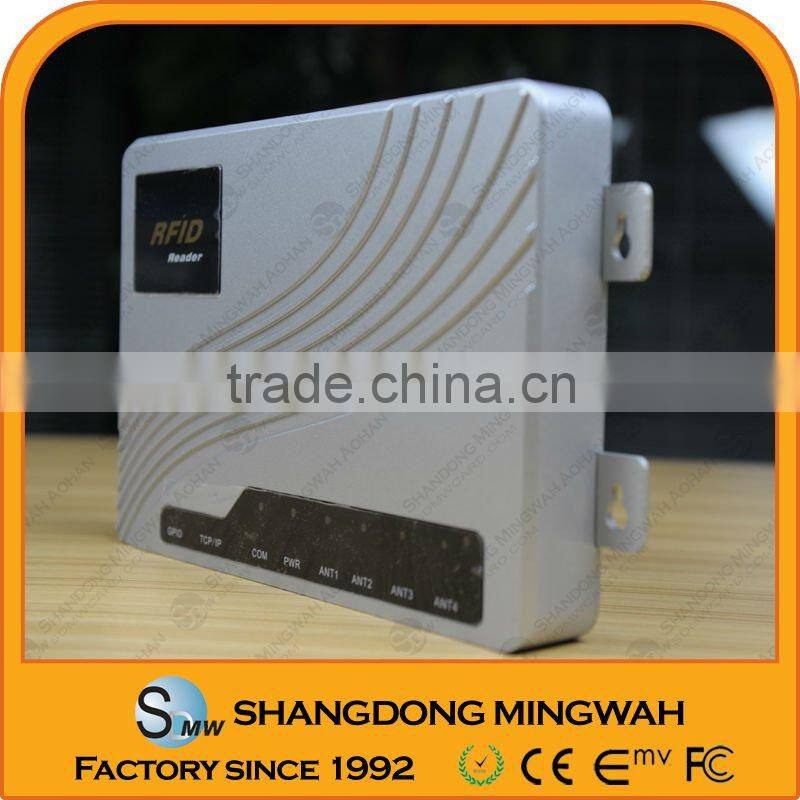

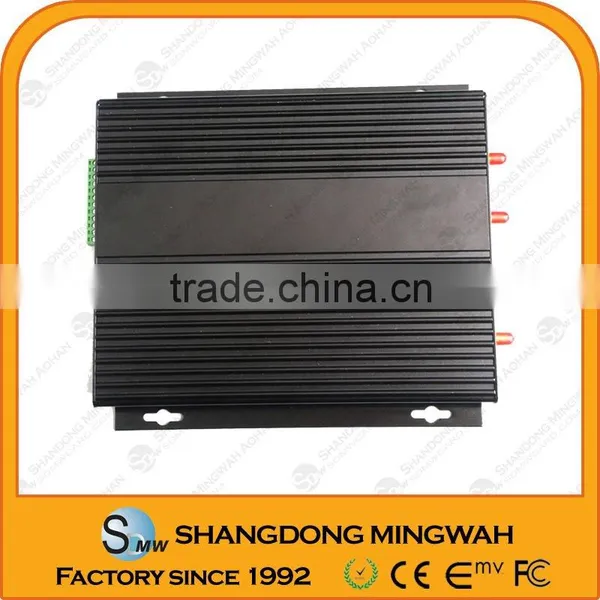

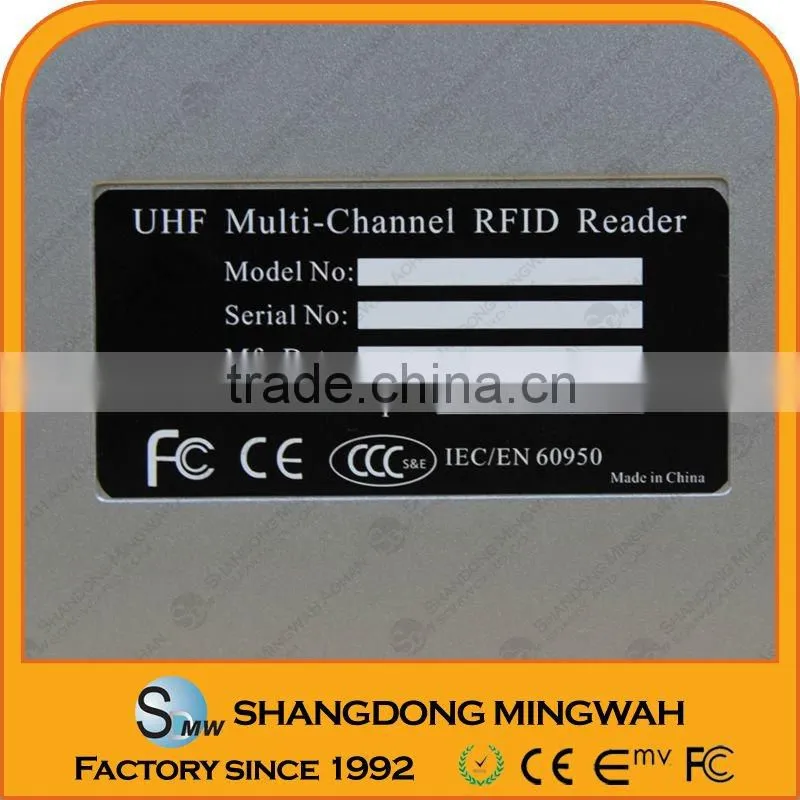

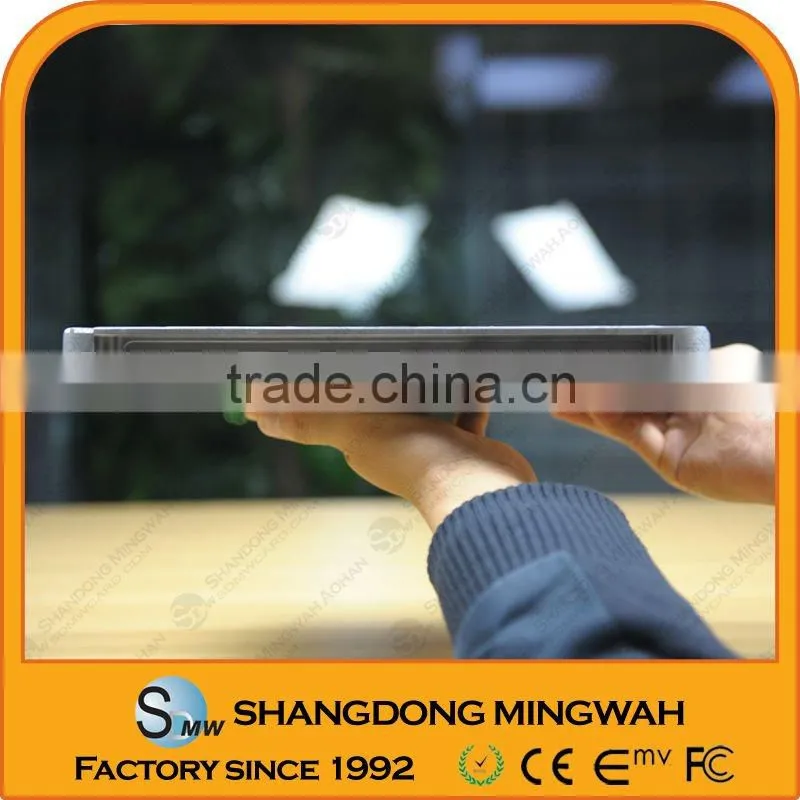

RFID UHF Integrative Long Range Reader & Writer

Name: RFID UHF Integrative Long Range Reader & Writer
Brand: M&W UHF long range rfid reader
SKU: 102801563
Availability: InStock

US$ 280 - 400 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

M&W UHF long range rfid reader

Model Number:

MS-9814 long range rfid reader

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name M&W UHF long range rfid reader

Model Number MS-9814 long range rfid reader

Specifications

long range rfid reader
RFID 2.4g active+UHF passive dual-frequency reader
RS232,wiegand,TCP/IP ,supporting EPC gen2 and 2.45G

TCP/IP 860-960MHZ interface UHF card reader-CE,FCC,ROHS certificate

Working frequency	902MHz~928MHz(customized)
Protocol	ISO18000-6B,EPC Class 1 GEN 2
Working way	PHSS(FHSS)or fixed frequency, can be set by software.
antenna	4 external antennas at most, SMA contact
Maximum RF output	30 dBm
Output power flatness	<0.5 DB
Output range	20~30 dBm,can be adjusted by the software kits offered.
Reading way	Automatic reading card at fixed time, reading by trigger control or reading by the command of software, the reading way can be set.
Identification time	Single card identification less than 8ms
Read/Write time	Reading 8bytes less than 5ms,writing 4 bytes less than 25ms
Read/Write distance	More than 8m,writing distance is 70% of the reading distance
Communication	A type:RS-232,RS-485,Wiegand26/34 E type:RS-232,Wiegand,Ethernet
Input/output interface	Route 2 trigger input, route 2 relay output
Power	DC 5V Power Adapter
Power dissipation	≤5W
Dimension	200mm×190mm×80mm
Weight	1kg
Working temp	-10°C~+55°C
Storage temp	-20°C~+85°C
Working status prompt	Buzzer, Antenna indicator, communication indicator, power indicator, reading indicator, RF transmit indicator
Certification	FCC CE RoHS
