Specifications
RS232 Smart UHF reader1.CE,FCC,ROHS Certification
2.860-960MHZ adjustable
3.Offer free SDK
4.20 years experience

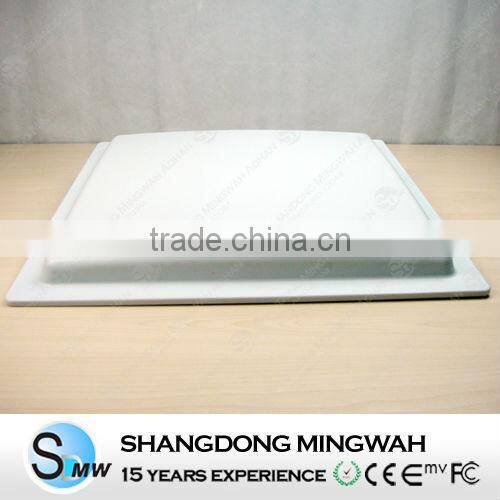

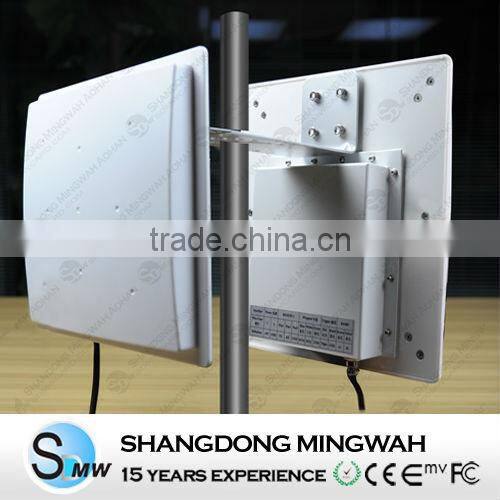

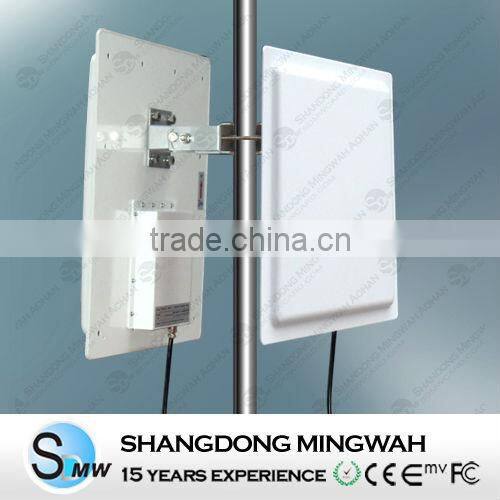

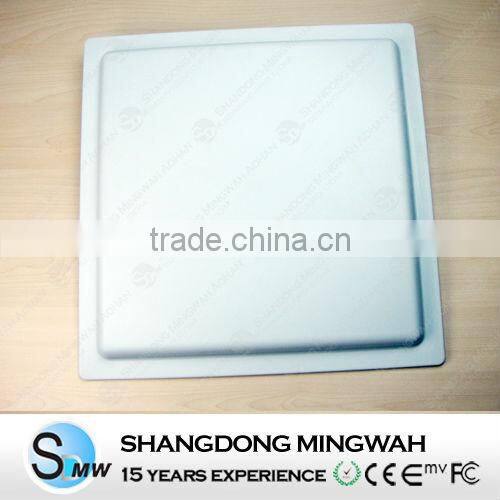

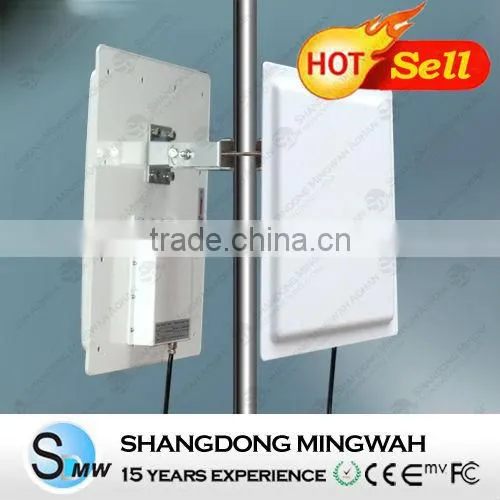

most popular RS232 Smart UHF reader
Brief introduction:
@CE,FCC,ROHS certificate
@860-960MHZ adjustable
@offer free SDK
@20 years experience engineers in RFID field
Specificaton
l Frequency: 860MHz~928MHz
l Protocol :ISO18000-6B,EPC Class 1,EPC Class 1 GEN 2
l Read & Write Distance : 10-20m,write distance is 70% of read
l Interface: RS-232,RS-485. Wigand, TCP/IP.
l Relay Data output
l Size: 460mm×460mm×50mm
Application

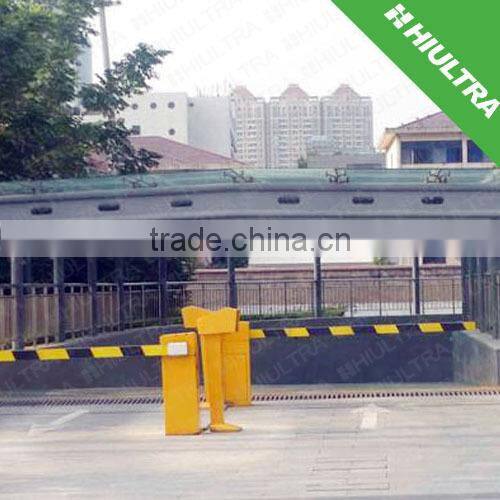

Vehicle Management; Parking system; Store management; Property management; Access control;
Why do you choose us?
&15 years experience in RFID field
&Experienced in RFID software and hardware
&Timely delivery, competitive price and free sample for test
1. Brief Description:

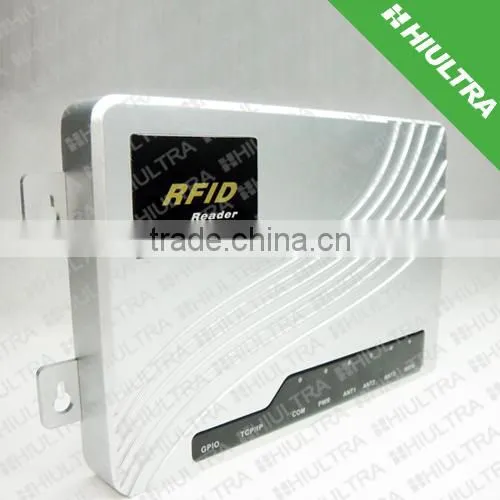

RFID uhf Reader
1) Interface: RS232, RS485, Wiegand, TCP/IP
2) Reading distance: 3-6m, 8-15m or more

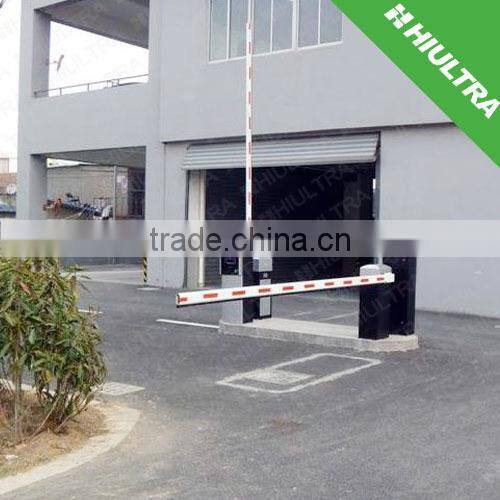

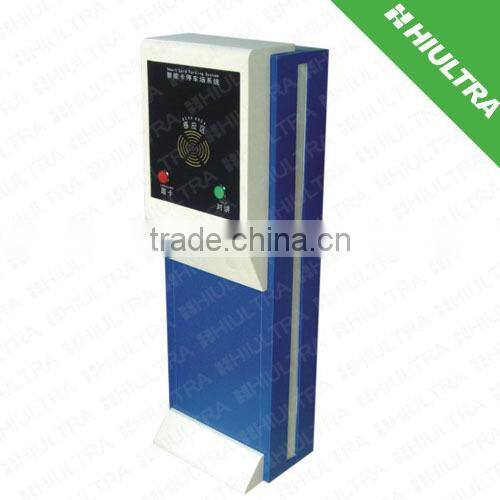

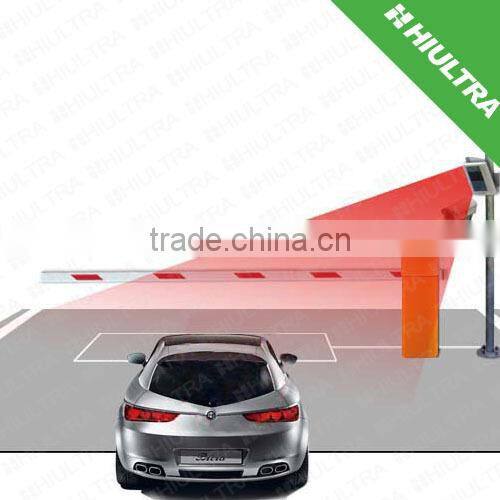

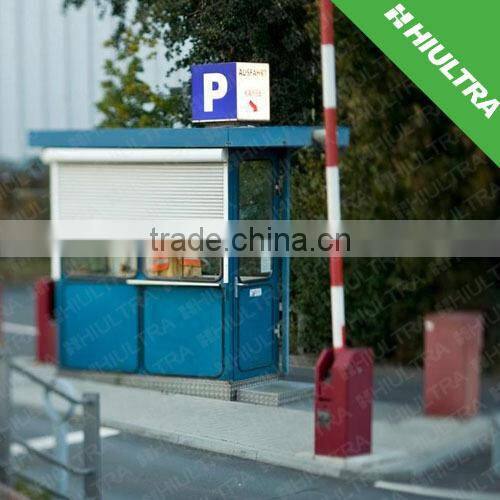

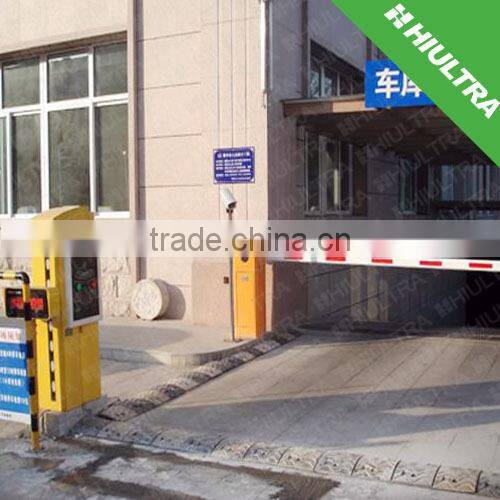

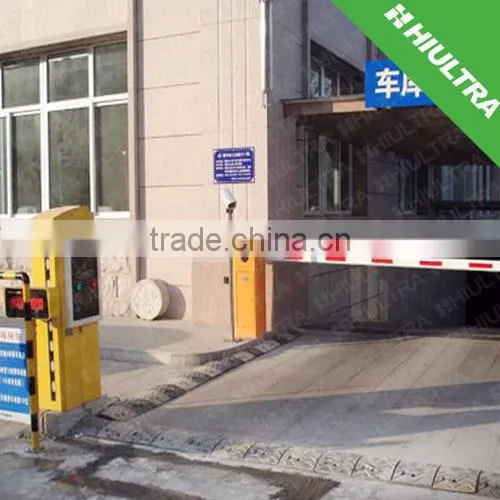

3) Application: Parking lot management
4) Free SDK and timely technical supports
2.Performance Characteristics:
Product Description
The advantage of product is compatible with multi-protocol, integrated design, fast reading speed, multi-tag identification and waterproof, which can be widely used in a variety of RFID system.
Product Features
Ø Logistics and warehouse management: goods flow, warehouse management and the flow management for mail, parcels,luggage
Ø Supply chain application: supply chain process application
Ø Anti-counterfeiting detection: using the internal write protection features of tag to identify the truth from falsehood
Ø Other application: club management, library management, time attendance management, repast management, pool management
Basic Parameters | |
Model |
MS-9801H Long Distance RFID Reader |
Dimensions |
440mmX440mmX50mm |
Weight |
2 Kg |
Operating Temp |
-20°C to +80°C |
Interface |
Standard: Viegand26, Viegand 34, RS485, RS232, set by software Optional: WiFi, RJ45 |
Data Input Interface |
One group Trigger Input |
Indicator |
Buzzer |
Power Supply |
DC 9V (equipped with power adaptor) |
Certificates |
FCC CE CCC |
RFID Parameters | |
Frequency Range |
Standard ISM 902 to 928MHz and ISM 865 to 868 for option, can customized other frequency |
Protocols |
ISO18000-6B, ISO18000-6C (EPC GEN2) |
Work Mode |
FHSS |
RF Power |
0 to 30dBm, set by software |
Antenna |
Build-in 12dBi linearly polarized antenna |
Read Range |
>12.0m |
Read Mode |
Timing reading , triggering reading, set by software |
Reading Speed |
<6ms per 64 bits, set by software |
3. Contact Detail:
Address |
Yinhe Building, 2008 Xinluo str. High-tech District, Jinan 250101 Shandong Province, China |
Mob |
+8615069005136(Jenny Xu) |
Office |
0531-88118020-833 |
Skype |
sdmwrfid06 |

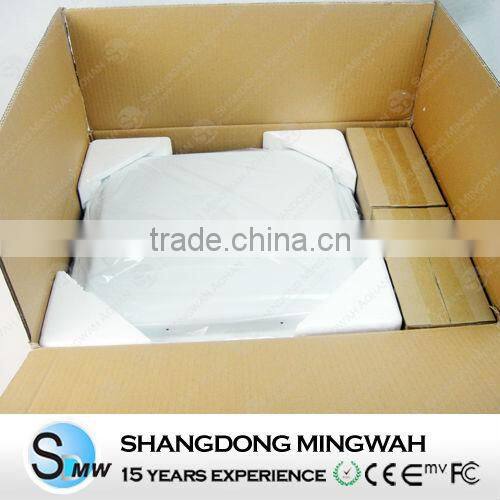

4.Product detail picture:
