furnace

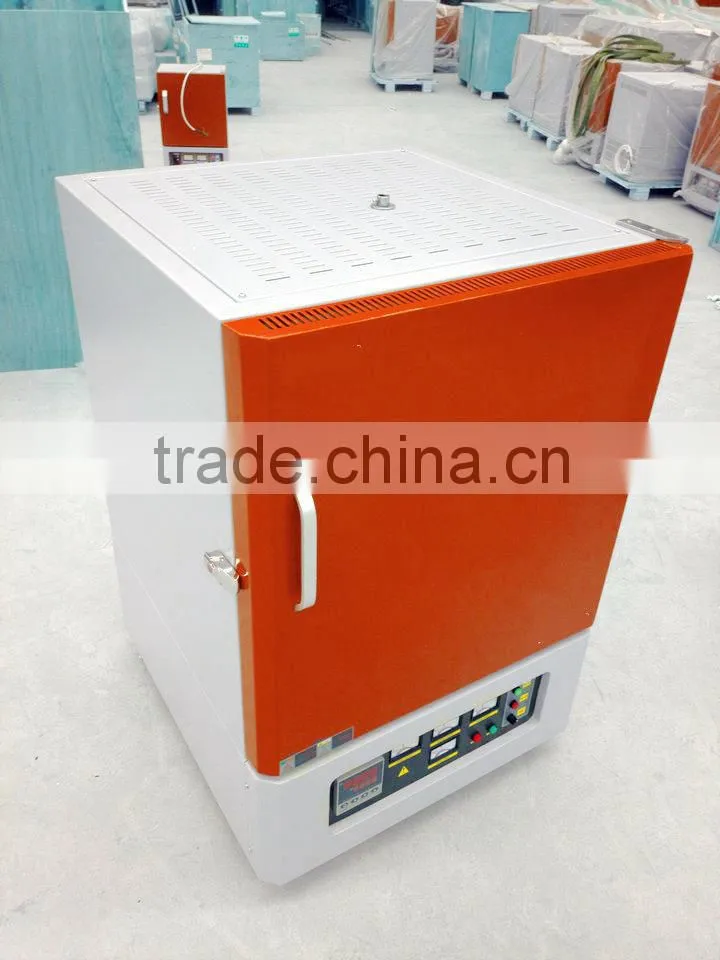

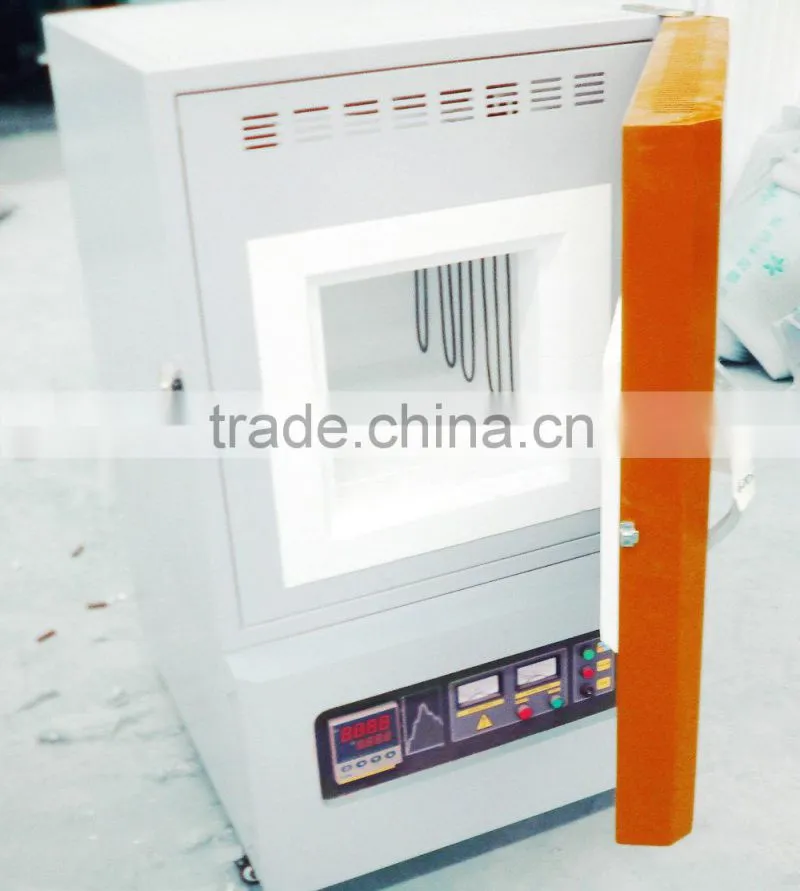

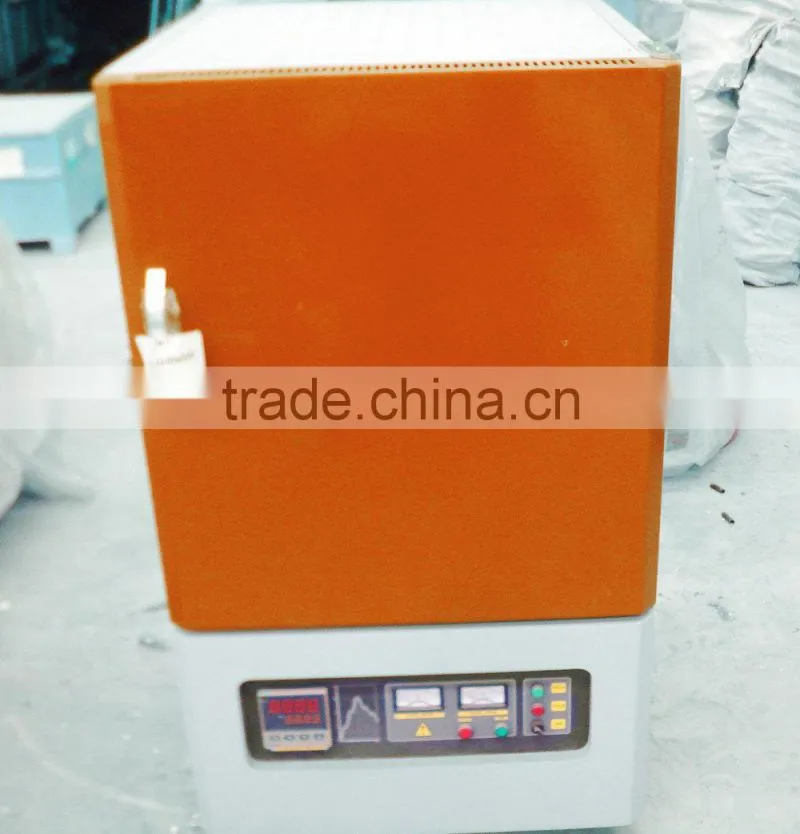

YF-1700 Box type electric lab furnaceis adopted imported high quality silicon molybdenum rod as heated
element; it adopts the dual shell structure and intelligent auto-control temperature system, SCR control, phase
shifting trigger. The chamber is adopted the 1700 type imported polycrystalline alumina fiber. Equipped with
cooling system between the dual shell, which can rise and cool swiftly; Using constant current soft-start
control, to extend the life of heating elements.
Main function & Features:
1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and durability properties; And adopted the imported silicon molybdenum rod as heating elements, greatly improving the service life;
2. With unique furnace design , durable to use, does not collapse;
3. Side open type furnace door, open the door power outages;
4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking , history recorder, output statements; can install the paperless recording device for data storage and output;
5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main uses:
Universities, research institutes, industrial and mining enterprises to do the powder sintering, sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
| Model | YF-1700 | YF-1700 | YF-1700 |
| Approved by CE certificate, ensure the safety operation of the machine. | |||
| Power supply | AC220V 50/60HZ | AC220V 50/60HZ | AC380V 50/60HZ |
| Furnace chamber | 150*150*150mm | 300*200*200mm | 400*300*300mm (Customizable) |
| (D x W x H) | |||
| Overall size | 620*620*900mm | 620*680*1050mm | 640*760*1600mm |
| Rated power | 4kw | 6KW | 14KW |
| Weight | 110kgs | 150kgs | 380kgs |
| Furnace chamber |
1700 type imported alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties. |
||
| Heating elements | imported high quality silicon molybdenum rod | ||
| Temperature control components | B-type double platinum rhodium thermocouple | ||
| Temperature control mode |
The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 51 the heating and cooling program |
||
| Working temperature | ≤1600C | ||
| Maximum temperature | 1710C | ||
| Recommended heating rate | 0~ 40.C/ min (suggestion: =<20.C ) | ||
| Constant temperature accuracy | ±1C | ||
| Standard accessories | Door brick, crucible clip, oven gloves ,user manual each one piece,Mosi2 heater two pieces, | ||
| Optional accessories |
Furnace hobs, a variety of corundum crucible, computer control software and paperless recorder, etc. |
||
