Specifications
The machine is mainly used for steel structure, our company has got the certificate of ISO9001:2000Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption.

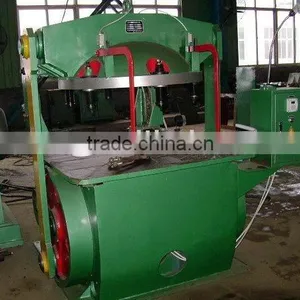

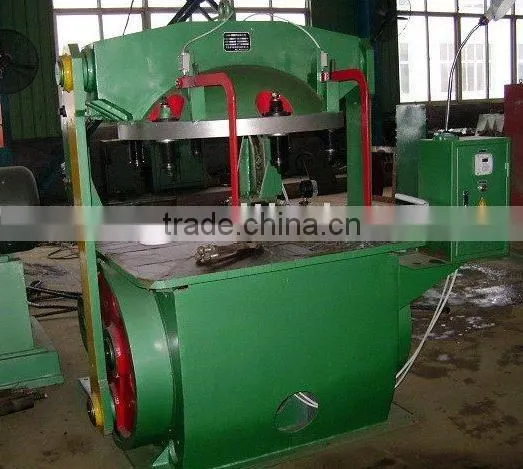

inner tube vulcanizing machine
Our factory always adhere to the honesty is the root, a promise is a promise of business philosophy, adhere to the market as the guidance, providing advanced products and high quality service.
he machine is used to vulcanize auto. Inner tube, model LLN-910 is suitable for various of inner tube below model 7.5-16
The machine is used to vulcanize auto. Inner tube, model LLN-910 is suitable for various of inner tube below model 7.5-16.Model LLN-1200 is suitable for various of inner tube below model 10-20.Model LLN-143 is suitable for various of inner tube below model 14-20.
Model |
|
LLN-910(36”) |
LLN1200(45”) |
LLN-1430(55”) |
LLN-1430B(55”) |
Max. clamping pressure |
kn |
300 |
500 |
900 |
1500 |
Max. out diameter of vulcanized mould |
mm |
900 |
1180 |
1300 |
1380 |
Max. height of vulcanized mould |
mm |
320 |
380 |
440 |
450 |
Mould opening time |
m/min |
3.5 |
5 |
9 |
8 |
Motor power |
KW |
4 |
5.5 |
11 |
7.5 |
Max. pressure of medium inside tube |
MPa |
0.85 |
0.85 |
0.85 |
1.4 |
Overall dimension |
mm |
1700x1400x1600 |
1800x1750x1750 |
2280x2160x2500 |
2160x1995x1842 |
Weight |
t |
2 |
3 |
6.5 |
11.8 |
