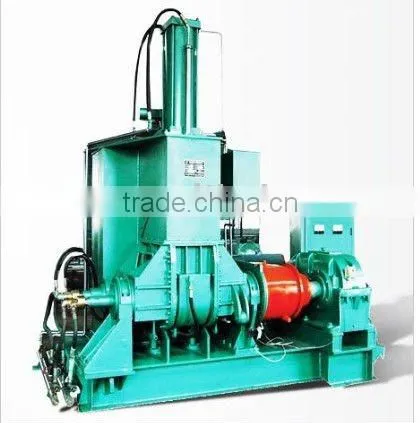

Help CenterBanbury Rubber Kneader
Related Products
Specifications
1.Rubber kneader is used for natural rubber, synthetic rubber refining and mixing2. PLC system, easy and safe operation....
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
The equipment is widely used in rubber products industry, such as: I, cable factory, tape hosepipe factory, JiaoXieChang, seal factory, xiangsu products etc,
also suitable for paint, dyestuff, ceramics, medicine, magnetic tape, a film production factory mixed etc.
This machine is an ideal rubber, plastics mixing equipment, new, and various performance indicators are reached, or close to advanced level of the same products abroad.
The advanced and reasonable design, compact structure, little space, convenient installation high production efficiency, easy operation and reliable, mixing chamber is clear
and easy change color, cooling heating effect is good, mix evenly dispersed and adopt totally closed structure, safe and greatly improve the working environment,
New seal structure design, sealing effect is good, long service life.
.
Item |
X(S)N- 10×32 |
X(S)N- 20×34 |
X(S)N- 35×30 |
X(S)N- 55×30 |
X(S)N- 75×30 |
X(S)N- 110×30 |
||
Total volume of mixing chamber |
L |
25 |
45 |
75 |
125 |
180 |
250 |
|
Working volume of mixing chamber |
L |
10 |
20 |
35 |
55 |
75 |
110 |
|
Driving motor power |
kw |
15 |
22 |
55 |
75 |
110 |
185 |
|
Tilting motor power |
kw |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
|
Tilting angle |
° |
140 |
140 |
140 |
140 |
140 |
140 |
|
Rotational speed of the rotor(front/rear) |
r/min |
32/23.5 |
34/28 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
|
Pressure of compressed air |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Capacity of compressed air |
m3/min |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
|
Pressure of cooling water(rubber mixing) |
Mpa |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
|
Pressure of heating steam(plastics mixing) |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
|
L |
mm |
2580 |
2630 |
3200 |
3280 |
3330 |
3930 |
Overall dimensions |
W |
mm |
1300 |
1520 |
1900 |
1930 |
2620 |
3000 |
|
H |
mm |
2280 |
2550 |
2950 |
3070 |
3340 |
3660 |
Weight |
kg |
3300 |
4500 |
6500 |
7500 |
10500 |
14500 |
|
Our motto: The honesty is the root, a promise is a promise.
