Specifications

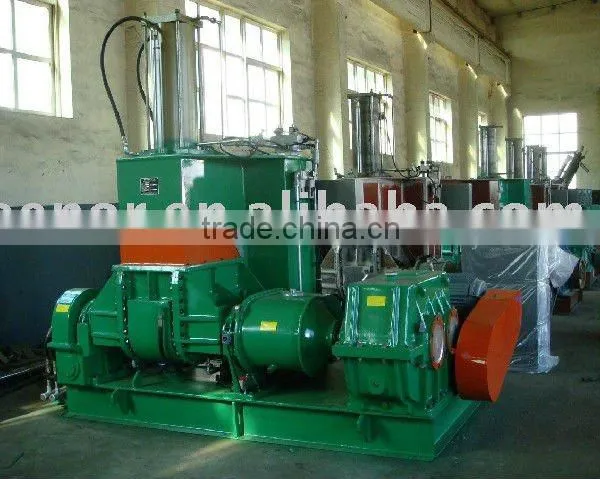

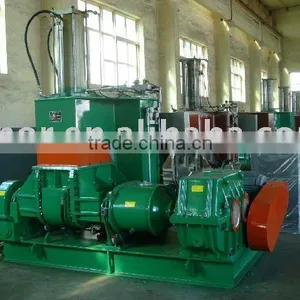

Rubber Kneader is mainly used for natural rubber, synthetic rubber, plastic, rubber and plastic refining and mixing,Reliable
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
Structure
1.MiXing chamber
2.Thermal Resistance
3.Rotor
4.Cooling/heating system
5.Tilting mechanism
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear,etc. It is able to activate the mixing chamber tilting by 140° around the front rotors.
6.Dust sealing device
7.Main driving system
8.Pneumatic control system
9.Electric control system
10.Frame and base
We are one of the biggest manufacturer and exporter of rubber machine in china. The products with high quality.
Features:
Kneader(35L)X(S)N-35*30:
Pinching total cubage(L):75
Effective working cubbage(L):35
Main motor power(KW):55
Overturn angle(.):140
Rotate speed rotor axis(front/back)(r/min):30/24.5
Pressure of compressed air(Mpa):0.6-0.8
Pressure of cooling water(Mpa):0.2-0.4
Pressure of heating steam(Mpa):0.5-0.8
Overall dimension(mm):3200*1900*2945
Weight:(about)6500kg
Kneader is mainly used for natural rubber, synthetic rubber, plastic, rubber and plastic refining and mixing, rubber and plastic blending, also suitable for various kinds of low viscosity materials of blending.
The equipment is widely used in rubber products industry, such as: I, cable factory, tape hosepipe factory, JiaoXieChang, seal factory, xiangsu products etc, also suitable for paint, dyestuff, ceramics, medicine, magnetic tape, a film production factory mixed etc.
This machine is an ideal rubber, plastics mixing equipment, new, and various performance indicators are reached, or close to advanced level of the same products abroad. The advanced and reasonable design, compact structure, little space, convenient installation high production efficiency, easy operation and reliable, mixing chamber is clear and easy change color, cooling heating effect is good, mix evenly dispersed and adopt totally closed structure, safe and greatly improve the working environment, New seal structure design, sealing effect is good, long service life.
