Specifications

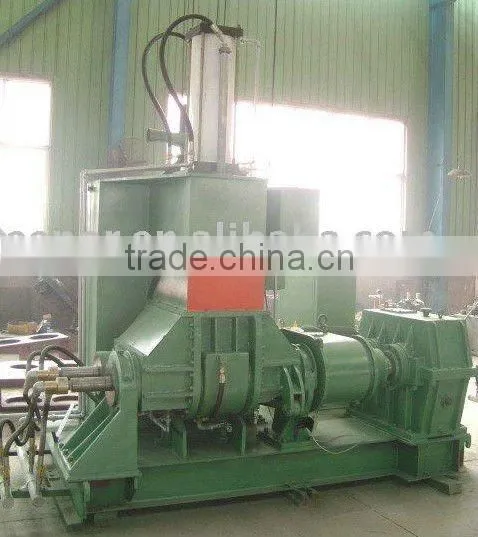

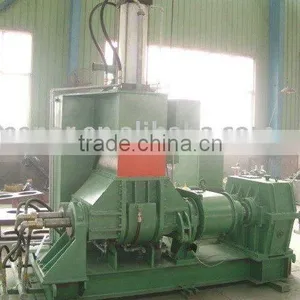

Rubber Kneader is mainly used for natural rubber, synthetic rubber, plastic, rubber and plastic refining and mixing,Reliable
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
Structure
1.MiXing chamber
2.Thermal Resistance
3.Rotor
4.Cooling/heating system
5.Tilting mechanism
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear,etc. It is able to activate the mixing chamber tilting by 140° around the front rotors.
6.Dust sealing device
7.Main driving system
8.Pneumatic control system
9.Electric control system
10.Frame and base
We are one of the biggest manufacturer and exporter of rubber machine in china. The products with high quality.
We are one of the biggest manufacturer and exporter of rubber machine in china. The products with high quality.
The details of the machine as follows:
Type |
|
X(S)N-3 |
X(S)N-10 |
X(S)N-20 |
X(S)N-35 |
X(S)N-55 |
X(S)N-75 |
X(S)N-110 |
Mixing capacity |
L |
3 |
10 |
20 |
35 |
55 |
75 |
110 |
Main power |
KW |
5.5 |
15 |
30 |
55 |
55/75 |
90/110 |
160/200 |
Brake |
KW |
0.37 |
0.75 |
1.5 |
2.2 |
3 |
4 |
5.5 |
Motor |
|
|
|
|
|
|
|
|
Tilting |
|
110 |
110 |
110 |
140 |
140 |
140 |
140 |
Angle |
|
|
|
|
|
|
|
|
Air compressor |
KW |
1.5 |
2.2 |
3 |
5.5 |
7.5 |
10 |
10 |
Dust collector |
|
HLL-10 |
HLL-10 |
HLL-10 |
HLL-10 |
HLL-15 |
HLL-20 |
HLL-30 |
Cooling water |
MPA |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
Heating steam |
MPA |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
Electric heater |
KW |
4 |
6 |
9 |
12 |
15 |
18 |
24 |
Machine weight |
KG |
1200 |
2300 |
4500 |
6500 |
7800 |
10500 |
14500 |
Overall dimension |
CM |
196x970x182 |
220x135x215 |
250x148x250 |
310x179x271 |
342x214x280 |
380x214x318 |
440x276x377 |
Our motto: The honesty is the root, a promise is a promise.
