Specifications
36V 25W constant voltage Switching led power supply1.high energy saving
2.CE,RoHs cetificate
3.green products

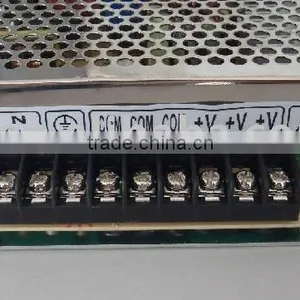

36V 25W constant voltage Switching led power supply
Specifications:
Input Voltage:AC85-264V 47-63Hz
Operation Range:AC90-250V
Output Voltage :DC12±15% V
Output Current:2.0A
output Power:DC25Wmax
Dimension:99X98.5X35MM
Weight:134G/PCS(Carton Package)
Rise hold up time:50ms,20ms at full load(Typical)
Hi-pot lsolation:I/P-O/P 3KVAC,I/P-FG 1.5KVAC,O/P-FG0.5KVAC
Safety Standards:TUV EN60950-1
Remark:(Constant Voltage Source)CE/ROHS
Model
Output Specification
Noise
Efficiency
JJW-25-3.3
3.3V
7.5A
25mW
74%
JJW-25-05
5V
5A
25mW
76%
JJW-25-09
9V
3A
25mW
78%
JJW-25-12
12V
2.0A
25mW
80%
JJW-25-15
15V
1.7A
25mW
80%
JJW-25-24
24V
1.0A
25mW
80%
JJW-25-28
28V
0.9A
25mW
80%
JJW-25-36
36V
0.7A
25mW
80%
JJW-25-48
48V
0.5A
25mW
82%
led power supply Features:
1.High efficiency and with PFC
2.Energy-saving and safety
3.CE and ROHS certificate
4.PWM switch design,efficiency power exceeds 85
5.Dissipating by natural air flow
6.100 full load aging testing
