Specifications
12V 12.5A Switching led power supply1.high energy saving
2.CE,RoHS Cetificate
3.long life green products

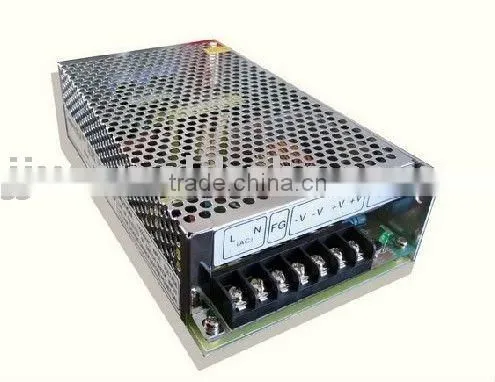

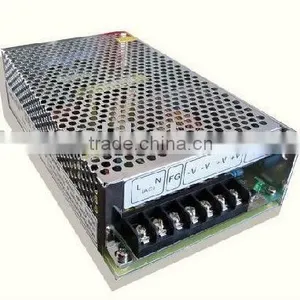

12V 12.5A Switching led power supply
Input Voltage:AC85-264V 47-64Hz
Operation Range:AC90-251V
Output Voltage:DC12±16% V
Output Current:12.5A
output Power:150Wmax
Dimension:199X98X38MM
Weight:560G/PCS(Carton Package)
Rise hold up time:50ms ,21ms at full load(Typical)
Hi-pot lsolation:I/P-O/P 3KVAC,I/P-FG 1.5KVAC,O/P-FG0.6KVAC
Safety Standards:TUV EN60950-2
Remark:(Constant Voltage Source)CE/ROHS
Model
Output Specification
Notice
Efficiency
JJW-150-3.3
3.3V
30A
100mW
66%
JJW-150-05
5V
30A
150mW
76%
JJW-150-09
9V
16.5A
150mW
78%
JJW-150-12
12V
12.5A
150mW
80%
JJW-150-15
15V
10.0A
150mW
80%
JJW-150-24
24V
6.5A
150mW
80%
JJW-150-28
28V
5.35A
150mW
80%
JJW-150-36
36V
4.2A
150mW
80%
JJW-150-48
48V
3.3A
150mW
82%
led power supply Features:
1.High efficiency and with PFC
2.Energy-saving and safety
3.CE and ROHS certificate
4.PWM switch design,efficiency power exceeds 85
5.Dissipating by natural air flow
6.100 full load aging testing
