QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine

QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine photo-1
US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Laminating Machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Laminating Machine
Automatic Grade Automatic
Place of Origin Zhejiang, China
Brand Name LIXIN
Model Number QZFM-1000/1200
Voltage 380V/3PH/50HZ
Power(W) 6KW/8KW
Dimension(L*W*H) 6100*1650(1820)*1900MM
Weight 3000KG/3200KG
Certification CE Certificate
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine

Max Working Speed:100M/MIN





Product Description

It’s newest upgrading model for water base lamination. The machine increases great work speed and precision, and the speed could reach 100M/min for greater efficiency.



Model:

QZFM-1000

QZFM-1200

Max. Laminating Width:

 L1100*W940mm

L1100*W1140mm

Paper Weight

100-400g/m2

100-400g/m2

Laminating Speed

0-100M/MIN

0-100M/MIN

Production Speed

100M/MIN



Laminating mothed

Cold/Water soluble glue

Cold/Water soluble glue

Voltage

AC380V/3PH/60HZ

AC380V/3PH/60HZ

Gross Power

 6KW

8KW

Total Weight

3000KG

3200KG

Overall Dimensions:

 L6100*W1650*H1900

 L6100*W1850*H1900



Configuration:

1. Adopt high speed special feeder for stable performance.

2. Equipped with Paper overlap position servo control system for high precision.

3. Air shaft with pneumatic brake can adjust easily and quickly.

4. Paper Delivery with magnetic particle clutch tension control system makes paper roller compact and neat.

5. Man-machine interface system.

6.Automatic pre-stack feeder with film lifter.





Our Services

QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine

Packaging & Shipping

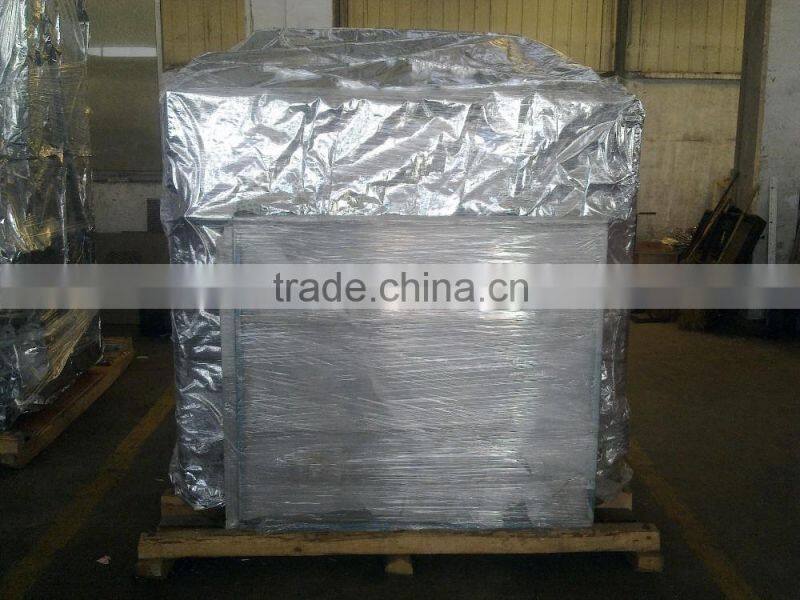

1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden Case



 QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine



QZFM-1000-1200 High Speed Automatic Cold Water Soluble Paper Bopp Laminating Laminator Machine
