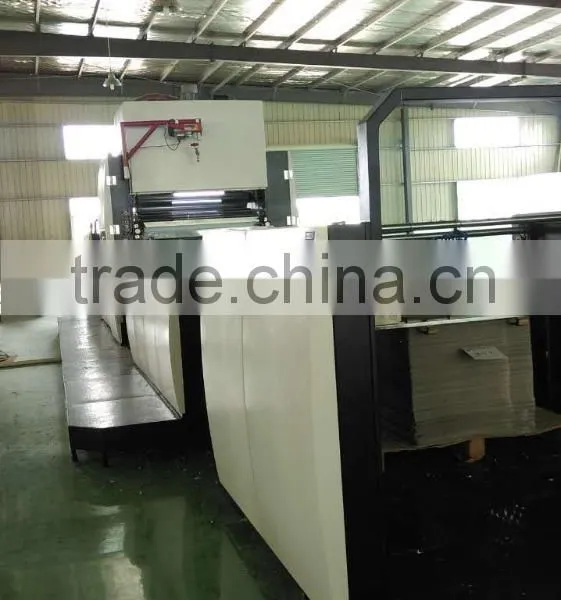

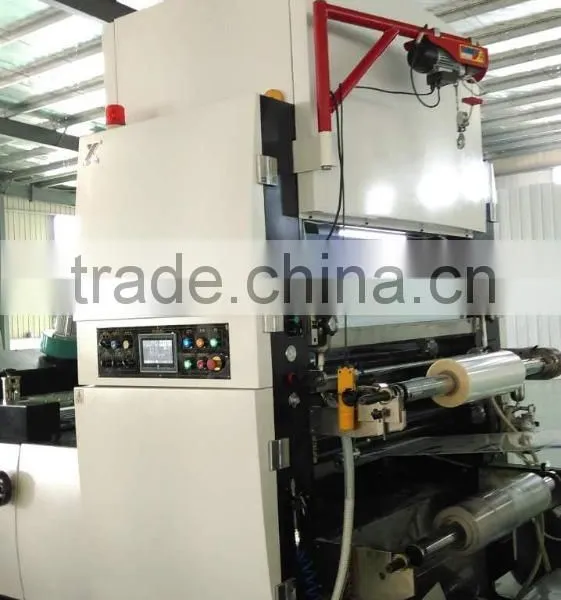

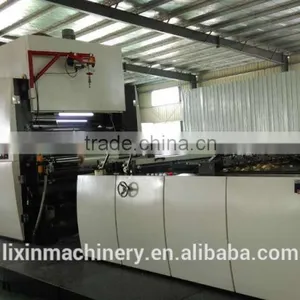

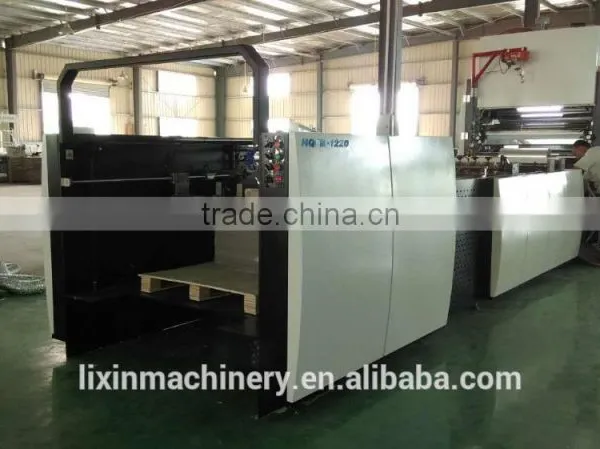

HQFM-1020 Automatic Thermal Cold Glue Bopp Paper Laminating Machine
- 10 Set / Sets per Month
- SHANGHAI/NINGBO
- T/T Credit Card PayPal
-
Infrared and circulating air dryer Printing Ink Tunnel Oven Machine
-
big size Automatic screen printing machine for sheet with automatic blanking
-
Printing Ink Tunnel Oven Machine
-
Ozone-free energy saving and environmental protection LED uv curing machines
-
Round/Plane Surface UV Drying Machine
-
Bottle UV Drying Machine
Product Details
| Condition: | New | Type: | Other, Paper Laminating Machine | Automatic Grade: | Automatic |
| Place of Origin: | Zhejiang, China | Brand Name: | LIXIN | Model Number: | HQFM-1020 |
| Voltage: | 380V/3P/50Hz | Power(W): | Gross 70KW | Dimension(L*W*H): | 10500*1900*2500MM |
| Weight: | 5000KG | Certification: | CE | Warranty: | One Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

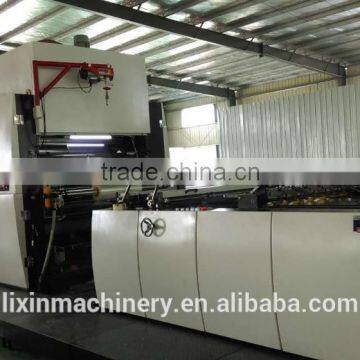

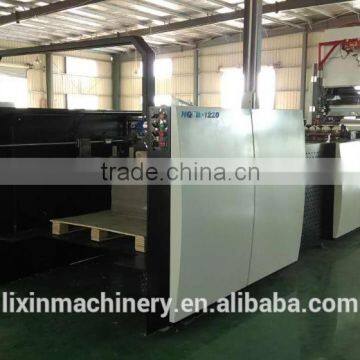

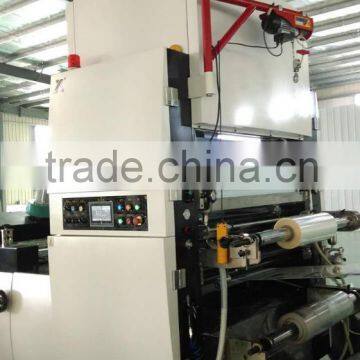

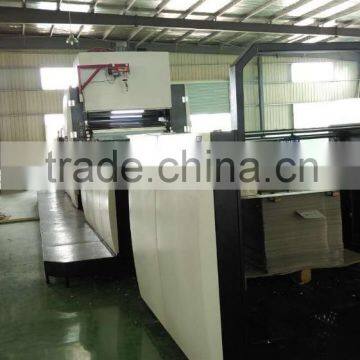

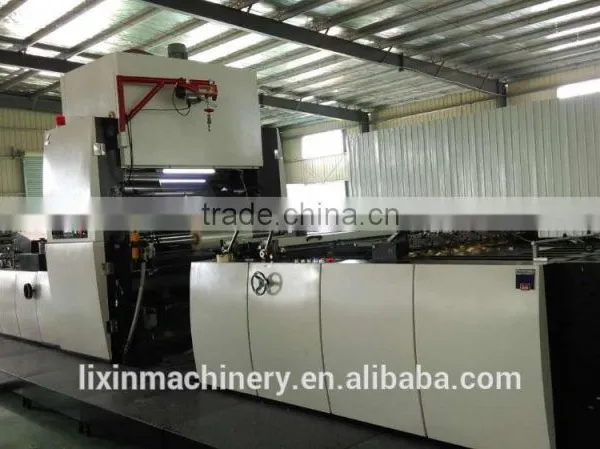

HQFM-1020 Automatic Thermal Cold Glue Bopp Paper Laminating Machine
HQFM-1020 Automatic Thermal Cold Glue Bopp Paper Laminating Machine is a new product, based on the no-glue film laminating machine, geared to the market. It is made up of feeder, front- and side-ruler, powder removing machine, laminating part, sheeting device, paper-collecting unit, etc. The design of feeder ensures continous supply of paper and improve the efficiency. The front- and side-ruler align papers automatically and improve the accuracy. The powder-removing machine helps clear away dust. The laminating unit adopts oil recycling heating system, to make heating roller surface temperature average and stable. Snap roller of the slitting unit could adjust itself according to the paper size, and the delivery part collect paper automatically.
Model | HQFM-1020 |
Max Paper Size | L910mm*W1020mm |
Min Paper Size | L320mm*W320mm |
Paper Thickness | 100-500g/m2 |
Film Thickness | 12-25μ |
Gross Power | 70KW |
Voltage | 380V/AC3/50HZ |
Working Power | ≤38KW/H |
Total Weight | 5000kg |
Overall Dimensions | 10500M*1900M*1800M |

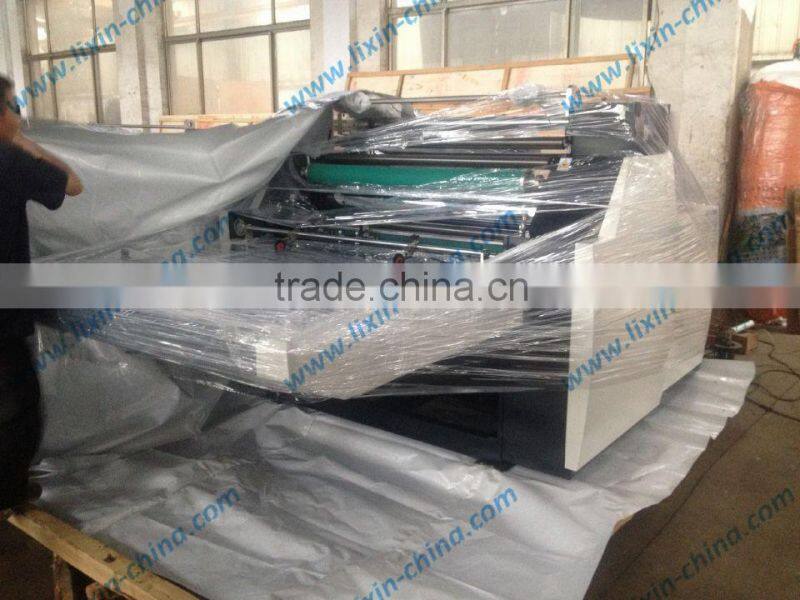

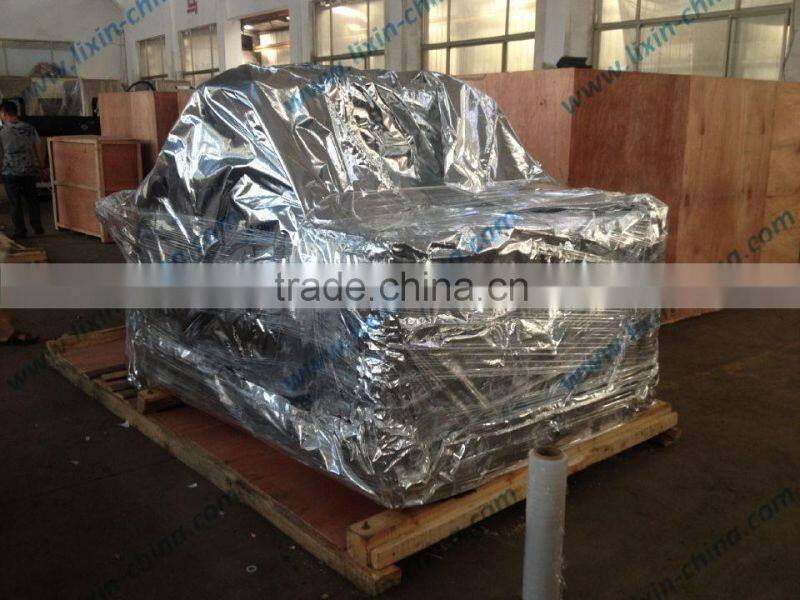

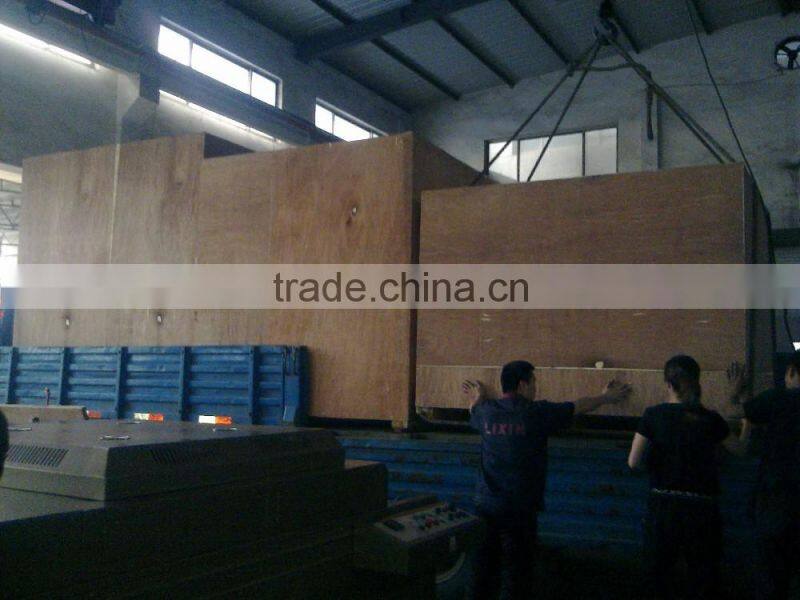

1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden Case
