SRFM-2R-1200 Paper Roller To Roller Cold Glue Paper Bopp Laminating Machine

                  SRFM-2R-1200 Paper Roller To Roller Laminating Machine

Brief

1.1   SRFM-2R-1200 Paper Roller To Roller Laminating Machine is a plastic filming machine of the fully environmental protection type, it uses the water-soluble environment protection glue-water, and is able to press the bilaterally tensile polypropylene film (BOPP,PET) or the polyester film with the printed matter together continuously. This product has many advantages, such as high transparency, strong plastic effect, good adhesive property, without snowflake points, bubble free, nonpoisonous, odorless and so on. It is widely used for the plastic pasting of textbooks, covers of books and magazines, New Year pictures, wall calendar, catalogues and package paper boxes, and is an ideal equipment for increasing the quality of printed matters.

1.2  The main machine uses the imported frequency inverter, with stable performances. It equips with the automatic stopping for lacking of paper, paper counting, automatic film cutting, treatment of finished product fast pushing etc. systems, and has features of high speed and energy saving. The power supply used by this machine is 220V, 60HZ.

1.3  This machine has a compact and reliable structure, a high speed and stable running, is easy to operate and move, with a beautiful modeling, and occupies less land area. Requirements of the environment protection and fire prevention could be reached during the using process. Therefore, it is applicable to the using by printing factories and packaging, decorating and color printing factories and professional plastic filming factories.

Specifiaction:

1. Model:                      SRFM-2R-1200

2. Max width:                    1150mm

3. Paper weight:                80-500g

4. laminating speed:          0-60m/min

6. Overall Dimension:      4500mm*1600mm*1500mm

7. Power:                      3.125KW

8. Overall weight:                4.5T

Standard equipments

1.Rewind unit(manual)         1 SET

2. Laminating unit                 1 SET

3. Accessory                          1SET

Remark: The transmission system adopts electromagnetic adjustable speed motor control

Specification

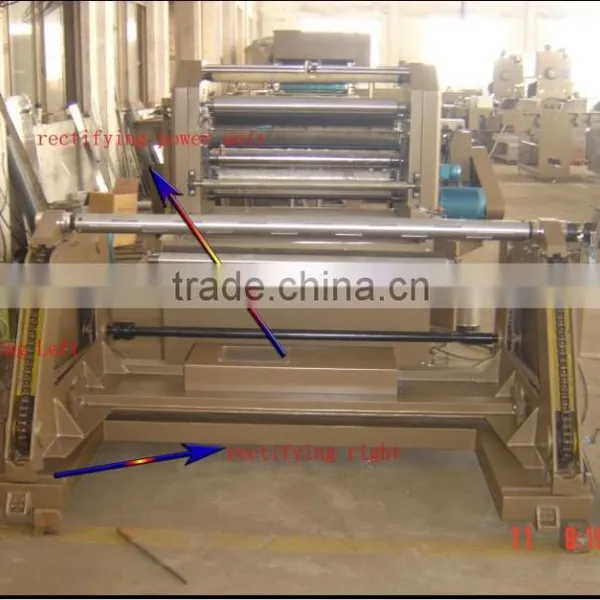

A-1.Unwind unit

1.The magnetism power controller

2.Automatic rectification system.

3.air shaft

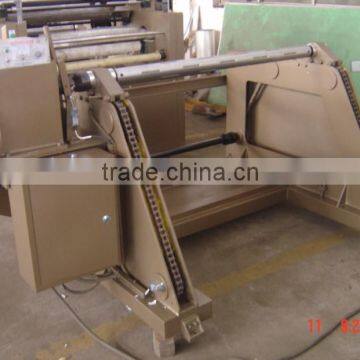

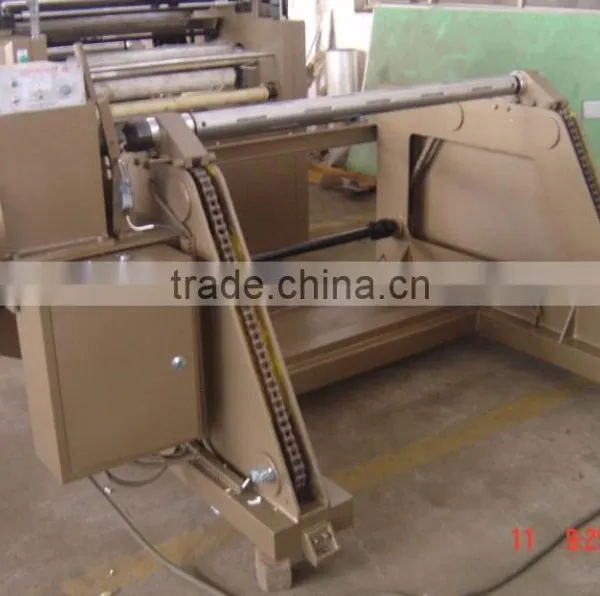

4.chain transmission for upload and download paper rollers

A-2.Laminating unit

1) The main unit uses the imported frequency inverter with stable performance.

2)It equips with the automatic stopping for lacking of paper, paper counting, automatic film cutting, treatment of finished product quick pushing system.

3) Adopts immersion coating method, the pump automatic supplying glue and auto matic rectification system.(edge guide)

A-3. Rewind roll Unit

1.the torque motor control

2.air shaft

3.chain transmission

A-4. Accessory

1) tool box       1SET

B. Electric Equipment

1) Frequency converter     Taiwan       delta

2) AC contactor             Korea         LG

Others

1. The parts have one year warranty, excepting the consumption parts

2. The supplier provides test installation.

Buyers self provided item. (Technology support by our engineer)

1. The associated civil engineering construction

2. Laying The mail power and electric pipes

3. Machine lift-unload work
