GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine

GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine photo-1
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Laminating Machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Laminating Machine
Automatic Grade Automatic
Place of Origin Zhejiang, China
Brand Name LIXIN
Model Number GS-1080
Voltage 380V/3PH/50HZ
Power(W) ≤25KW/H
Dimension(L*W*H) L12850*W2400*H2250
Weight 7000KG
Certification CE Certificate
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

  GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine

Product Description



GS-1080 automatic Bopp Paper laminator is developed for the big size of paper lamination with glueless film or preglued film. The machine realizes complete automation to paper feed, lamination, paper cut, paper receiving and temperature control. The electrical and pneumatic devices are controlled by PLC (programmable control) system, and can be operated easily via touch screen. Enlarged size of heating roll adopts electromagnetic heating system . The collecting unit is equipped with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of laminated paper. This machine centralizes the features of high automation, high precision f lamination, humanized configuration and easy operation, and is an excellent performance of equipment for the best choice of large and medium-size enterprises.



APPLICATIONS:To suit two kinds of film: pre-glued film and glueless film



Model

                   GS-1080

Max Paper Size

L1200*W1080mm

Min Paper Size

L320mm*W320mm

Paper Thickness

100-500g/m2

Film Thickness

12-25μ

Gross Power

  39KW

Voltage

380V,AC3φ50HZ

Working Power

≤25KW/H

Total Weight

7000KG

Overall Dimensions

  L12850*W2400*H2250




Configuration



1.Pre-stack and non-stop paper feeder system.

2.Adopting high precise front edge-guide position unit and overlap system controlled by imported servo      motor.

3.Electromagnetic heating system.

4.Automatic hydraulic system.

5.Film load-unloading hydraulic lifter.

6.Anti-curvature device.

7.Delivery waste output automatically.

8.Non-stop delivery system

9.Triple separating system for different papers.

10.Adopting chain cutter system for paper separation. (Optional)



Our Services

GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine

Packaging & Shipping

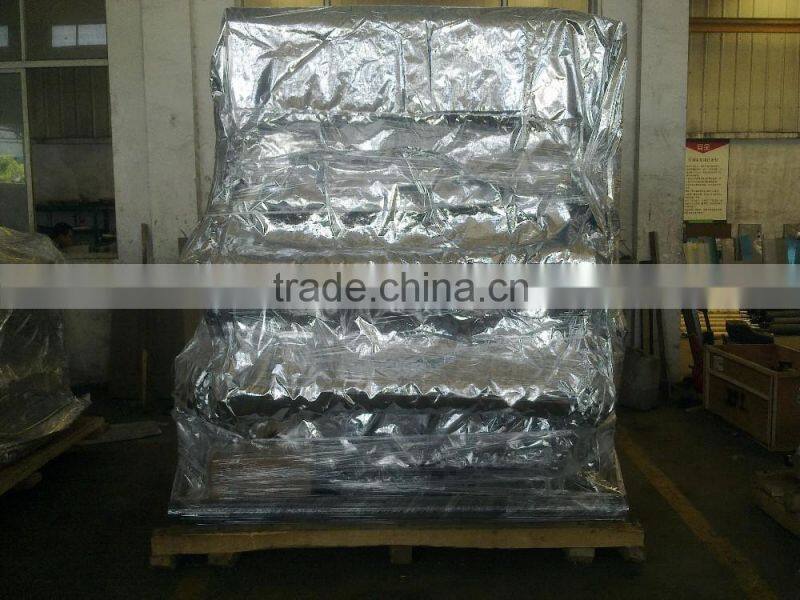

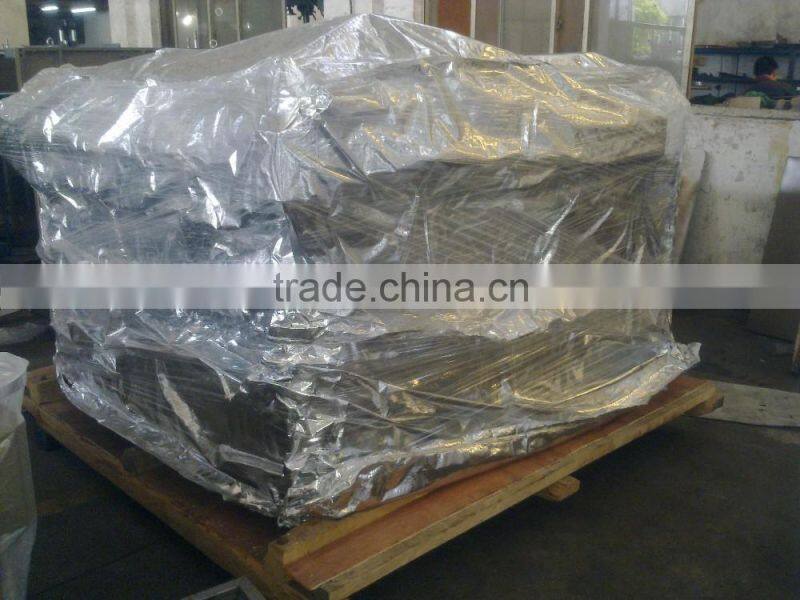

1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden Case



 GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine



GS-1080 Automatic High Speed Thermal Pre-coated Glueless Film Bopp Paper Laminator Laminating Machine

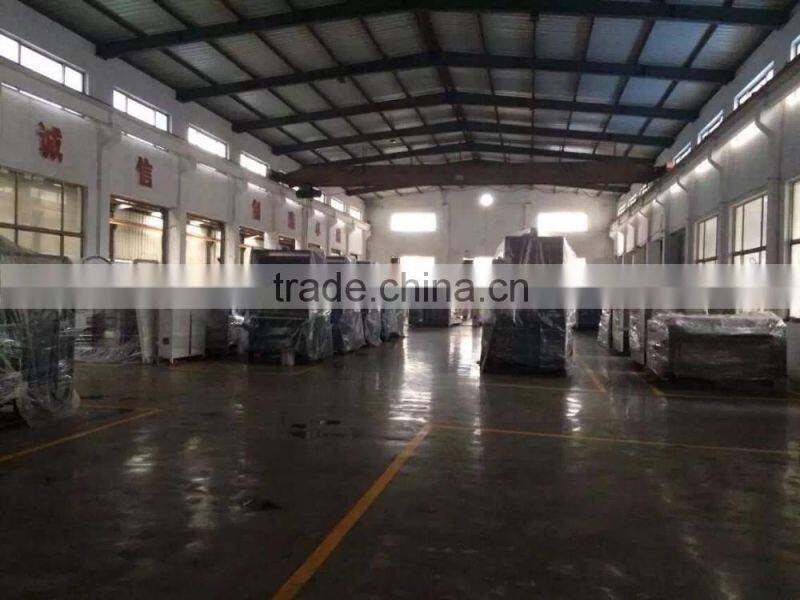

Company Information
