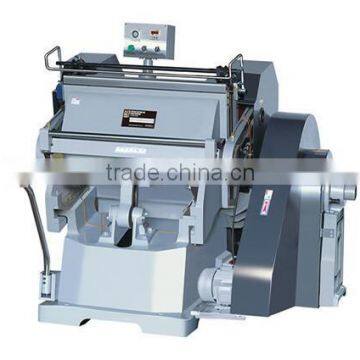

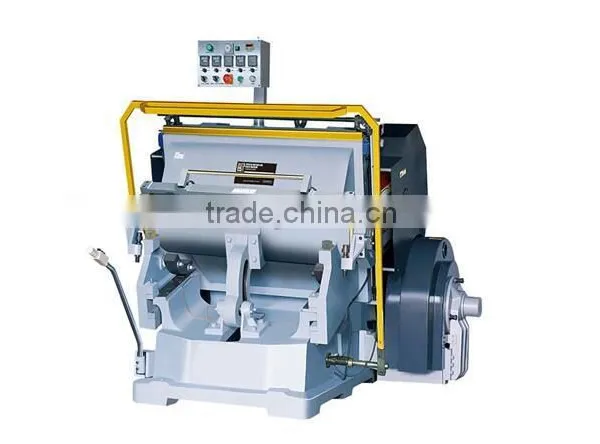

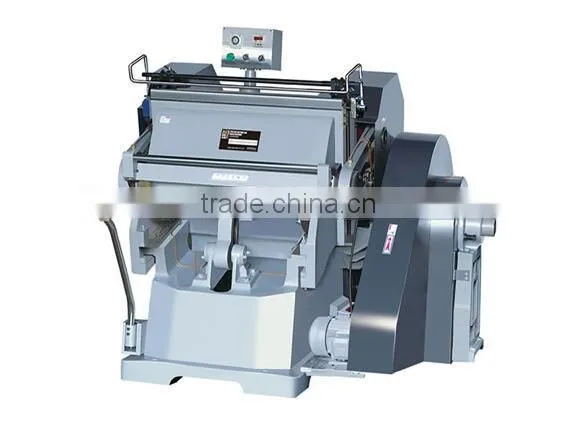

LXML Manual Paper Die Cutting Creasing Machine

Name: LXML Manual Paper Die Cutting Creasing Machine
Brand: LIXIN
SKU: 102787351
Availability: InStock

US$ 4000.00 - 4000.00 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Paper Cutting Machine

Automatic Grade:

Other, Manual

Ruian Lixin Printing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Paper Cutting Machine

Automatic Grade Other, Manual

Place of Origin Zhejiang, China

Brand Name LIXIN

Model Number LXML

Voltage 220V

Power(W) 2.2KW

Dimension(L*W*H) 1350*1500*1600mm

Weight 2000kg

Certification ISO9001:2008

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

.High intensity integral casting

.Steel rod

.Integral main shaft cover with structure optimization of Qsn6.5-01 tin bronze

.Imported bearing and ele ctrical apparatus inside

.With centralized oiling pump (manual or automatic), use single line damping oil separation system

.Air clutch available

.Safety adjustable rod available(patent products)

.Infrared safety protection system available

Model	Platen Size	Cutting Length	Working Speed	Motor	Total Weight	Overall dimension
ML750	750*520mm	<15m	26±2time/min	2.2kw-6h	2000kg	135015001600mm
PYQ203C	930*670mm	<25m	23±2 time/min	4kw-4h	3000kg	165018501650mm
ML1040	1040*720mm	<30m	23±2 time/min	4kw-4h	3500kg	175020001650mm
ML1100	1100*800mm	<35m	20±2 time/min	4kw-6h	4500kg	195021001750mm
ML1200	1200*820mm	<35m	20±2 time/min	4kw-6h	4800kg	200021001750mm
ML1300	1300*920mm	<40m	15±2 time/min	5.5kw-6h	6200kg	235021001700mm
ML1400	1400*1000mm	<45m	15±2 time/min	5.5kw-6h	6800kg	245021001800mm
