Help CenterWHT350 The Cheapest No-scratch BOPP Tapes Hot Melt Coating & Laminating Machine
Related Products
-
RTS Label Paper Hot Melt Coating MachineNegotiableMOQ: 1 Set -
RTS Label Paper Hot Melt Coating MachineNegotiableMOQ: 1 Set
-
RT2-100 High Speed Double Sides Hot Melt Coating MachineNegotiableMOQ: 1 Set
-
RTT Skin Packaging Film Making MachineNegotiableMOQ: 1 Set
-
RT Non Woven Fabric Hot Melt Coating MachineNegotiableMOQ: 1 Set
WHT350 The cheapest No-scratch BOPP tapes Hot Melt Coating & Laminating Machine is suitable for making transparent BOPP tape, packing tape, paper tape, label paper, the self adhesive label, Adhesive Label, Adhesive sticker, self-adhesive paper and so on.
A. Main characteristic

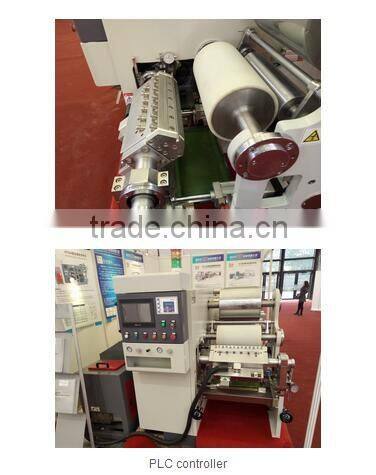

WHT350 The cheapest No-scratch BOPP tapes Hot Melt Coating & Laminating Machine adopts PLC and touch screen to operate and can coat the material up to a width of 350mm. The two laminating rollers can be separated and it is easy to clean and adjust.
WHT350 The cheapest No-scratch BOPP tapes Hot Melt Coating & Laminating Machine adopts two cooling rollers to make sure the material can be protected well from the high temperature.

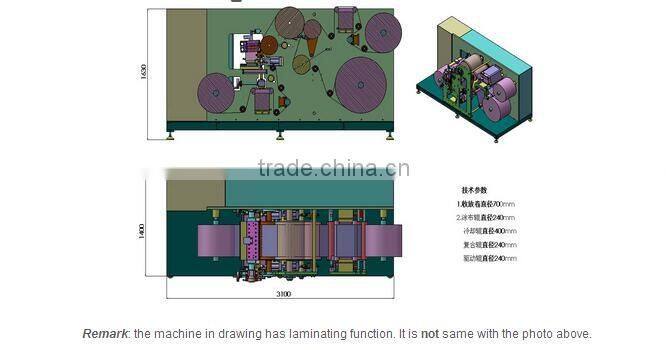

B. Schematic drawing
C. Technical parameter
1. Coating method: rotary rod Coating system without scratch
2. Max available coating width: 350mm.
3. Coating Weight: 13-80g/m2
4. Equality level: 0.001mm
5. Max. working speed: 150m/min
6. Length of all roller: 400mm
7. Unwinding equipment: 2 set
8. Rewinding equipment: 1 set
9. Unwinding Diameter: 600mm
10. Rewinding Diameter: 700mm
11. Correction Edge Device: 2 sets
12. Glue melting speed: 30kg/h (EVA: 3000 centipoise 165
13. Max temperature of adhesive melter: 210mm
14. Glue hose: 2m
15. Power: app. 15KW
16. Power supply: ~380V/15% 50Hz
