BW-LU19 Electric LCD Monitor Lift Box For Board Table
DESCRIPTION Of LCD Monitor Lift Box
BW-LU series lcd monitor lift box specially designs for high-class conference solutions. With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.
With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc. The lift is usually used together with our tabletop sockets to produce unexpected results.
Characteristics Of LCD Monitor Lift Box
- 17”, 19”,22”, 24” available, others can be customized
- Aluminum oxidation with drawing polishing surface process to make sure smooth and bright panel
- Adopting superior gear machine to produce precise gear to ensure stable and reliable lift;
- Selecting qualified mute motor with CE CCC marked
- Drive sytem: constructed by belt gearing and dual-rack system that highly improve the operation stability and also make very low noise.
- Provided with English buttons to control the lift, UP, DOWN, STOP, FORWARD, BACKWARD
- Remote control ,manual control and central control;
- Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption
- Adjustable angel of the screen after lifts up.
- Equipped with different data interfaces for convenient data access.
| Item NO. | BW-LU17 | BW-LU19 | BW-LU22 | |||
| Style | LCD Lift with monitor | LCD Lift with monitor | Lcd lift with monitor | |||
| Products | Monitor+lift+remote control | Monitor+lift+remote control | Monitor+lift+remote control | |||
| Panel size | 490*160*4mm | 550*160*4mm | 620*190*4mm | |||
| Box size | 470*150*655mm | 530*150*655mm | 600*175*665mm | |||
| Panel thickness | 4mm | 4mm | 4mm | |||
| Lift mount size | 420*80mm | 480*80mm | 540*105mm | |||
| Packing size | 578*250*770mm | 650*270*780mm | 720*300*850mm | |||
| N.W | 22kg | 24kg | 28kg | |||
| Voltage | 110-220v | 110-220v | 110-220v | |||
| Power | 20W | 20W | 20W | |||
| Pitch angle | 0-15° | 0-15° | 0-15° | |||
| Single trip time | ≤20s | ≤20s | ≤20s | |||
| Working Temp. | 0-45° | 0-45° | 0-45° | |||
| R.H. | ≤80% | ≤80% | ≤80% | |||
| Color | silver/black | silver/black | silver/black | |||
| Remote distance | 35m | 35m | 35m | |||
| Operation noise | ≤30db | ≤30db | ≤30db | |||
| Material | Wiredrawing aluminum alloy | Wiredrawing aluminum alloy | Wiredrawing aluminum alloy | |||
| Control way | Touch key-press/Remote control/RS485 central control | Touch key-press/Remote control/RS485 central control | Touch key-press/Remote control/RS485 central control | |||
| Running way | double motor with gear drive | double motor with gear drive | double motor with gear drive | |||
| Protecting way | protecting finger from nipping | protecting finger from nipping | protecting finger from nipping | |||
| Accessory | stator 2pcs screw(5*10mm)4pcs power line 1 pc | |||||

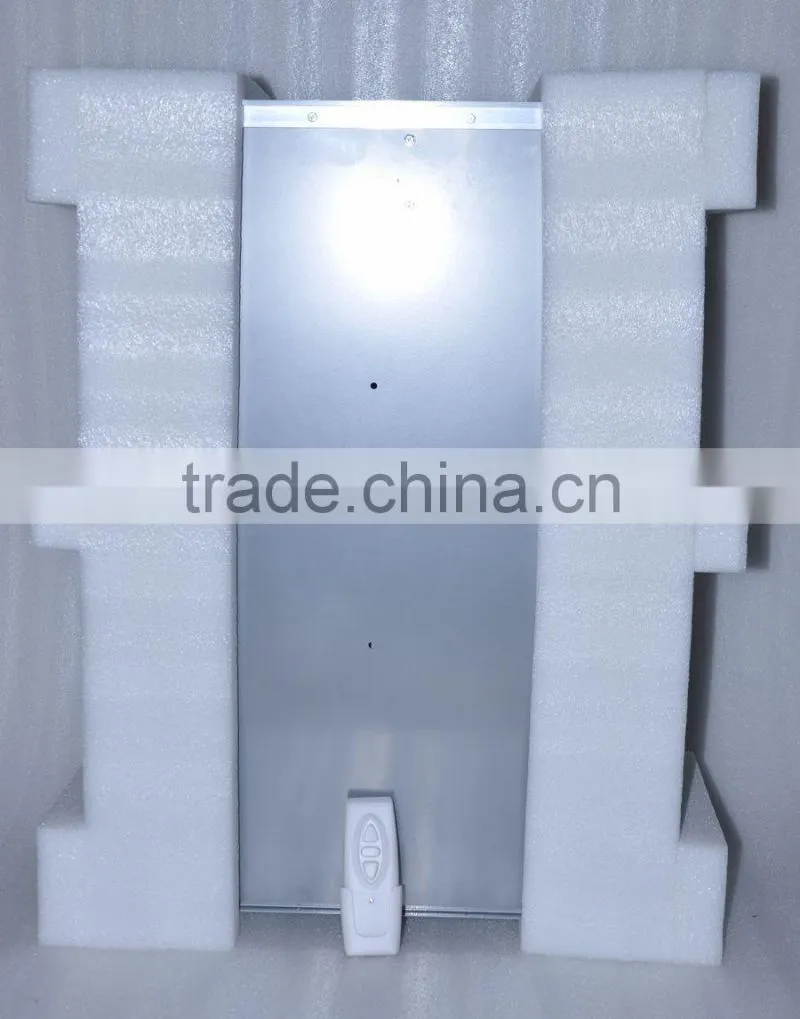

Package&Shipping Of LCD Monitor Lift Box
LCD Monitor Lift Box BW-LU17 package, usually is with standard export cartons:
1pc/ ctn 58*25*77cm
3pcs/wooden case 64*63*73cm
by courier like DHL, FedEx, UPS, TNT, TOLL etc.
by air to any airport around the world
by sea to any port around the world
by trail to inland countries
Service
1. Sample service is available
2. OEM is warmly welcomed
3. Shipment and sample quality tracking.
4. Quick response , enquiry will be repond within 24 hours
5. high qualified after sale service
FAQ

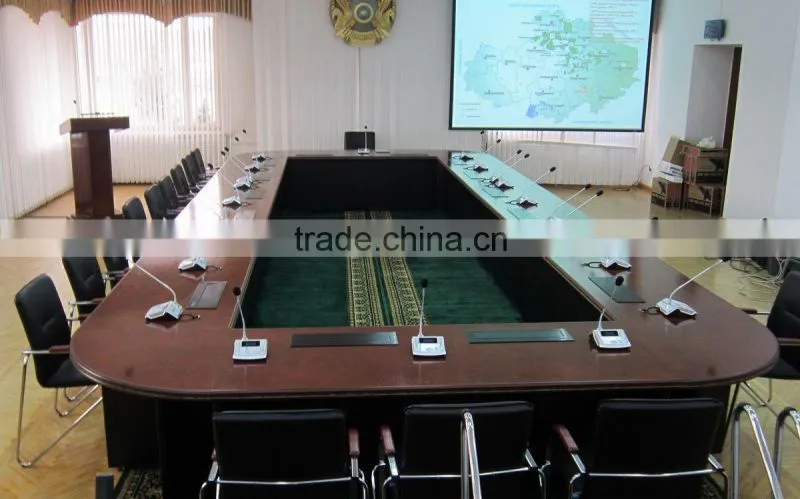

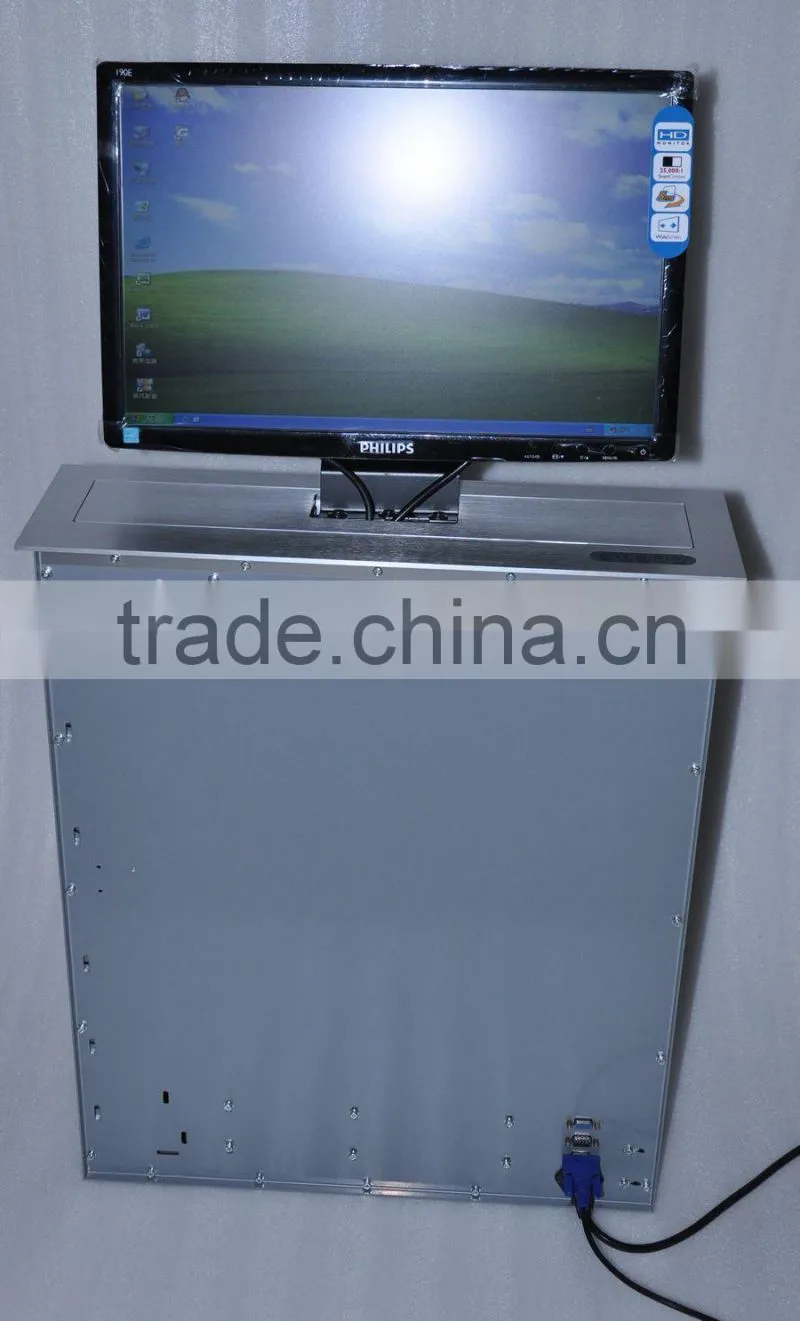

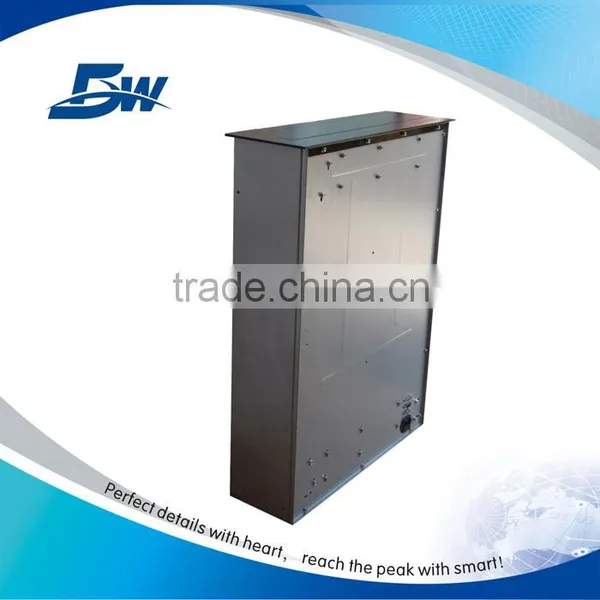

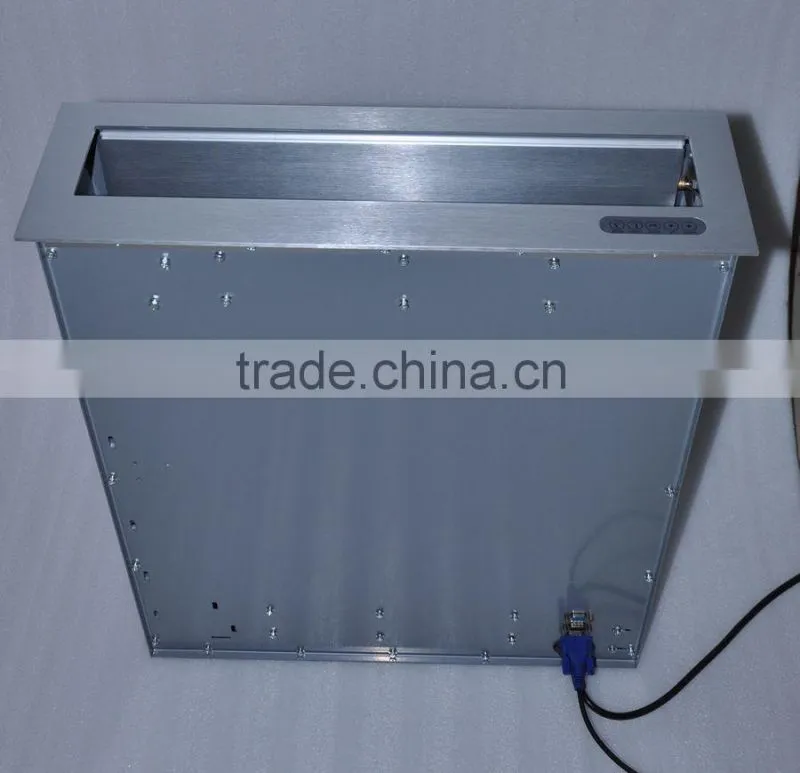

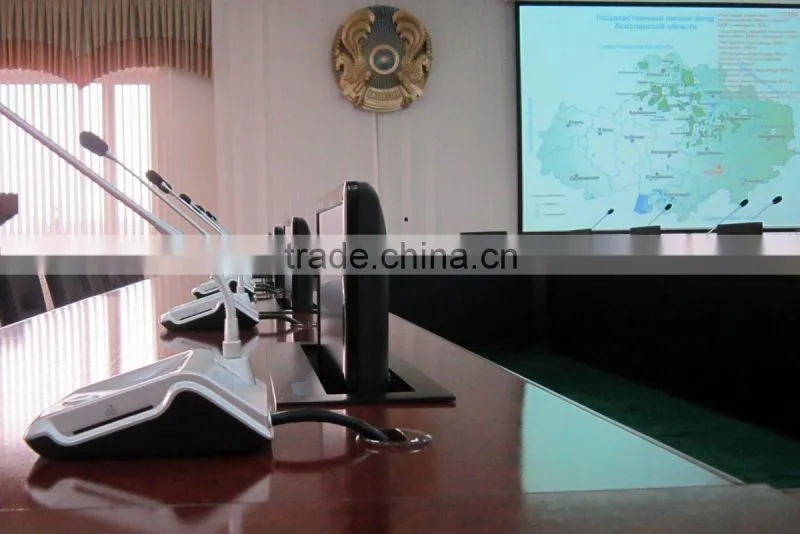

Picture Of LCD Monitor Lift Box

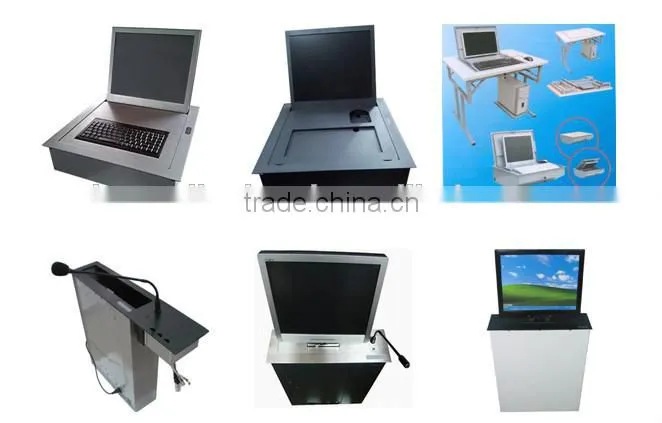

Other Related LCD Monitor Lift Box
Factory Show
Payment Method
Certifications
Warmly Welcome Contact Details
