BW-T651 Aluminum Panel Pop Up AV Table Box
Description Of AV Table Box
BW-T65 series AV table box are with high quality aluminum with anodizing surface treatment, which is ideal for board room, classroom, training room, hotel system, lecture room etc. With its advanced appearance and innovative design, it has become one of our latest promotion products. Once use finished, can be hidden in the table.
Feature Of AV Table Box
1. with square shape, it takes small area on the desk;
2. female and male port makes convenient use;
3. pop-up operation to hide all the modules;
4. with quiet pneumatic pressure gas pole
5. changeable connectors combinations to satisfy different customer's request;
6. after use finished, surface of tabletop pop up socket flush with the desk;
General Of AV Table Box
| Power | 110V-240 VAC 50/60Hz 13A(with power-off indicator) |
| computer | 15-Pin HD VGA female |
| audio | 3.5mm stereo female jack/RCA female |
| video | RCA female |
| LAN | RJ-45(CAT.5E) network/cat6/data/connector |
| Telephone | RJ-11 voice(CAT3) |
| USB | USB2.0 female |
| HDMI | HDMI1.3 female |
| MIC | 6.35mm stereo female jack |
Technical Of AV Table Box
| Dimensions | Overall (LxWxH) 175 x 130 x 130 | |||||
| Material | Steel box profile + Aluminum top panel | |||||
| Finish | Silver/black tilt-up cover, Oxidation and Blushed | |||||
| Max table thickness | 60mm or 125mm(to be connected to extended part) | |||||
| Mounting hole | 165mmx120mm, R=12 | |||||
| Work manner | Press up the cover and plug in the required connectors when use and release them back on the desktop. | |||||
Technical Advantages Of AV Table Box
1. Selected 5mm thickness aluminum panel
2. Gap between the inner and outer panel within 0.5mm
3. Oxidation and blushed treatment
4. Round corner, more smooth and beautiful
5. Cleaned weld point, no sharp welding spatter left over in the box
Operating Process Of AV Table Box
After the use finished, only must gently press down the connectionless, the mechanical caging locks the connection box immediately, the hidden desktop socket box is flushing with desk.
Package& Shipping Of AV Table Box
1pc in a small package size 21*16*19cm
6pcs in a big package size: 37^45*25cm
by courier like DHL, FedEx, UPS, TNT, TOLL etc.
by air to any airport around the world
by sea to any port around the world
by trail to inland countries
Service
1. Sample service is available
2. OEM is warmly welcomed
3. Shipment and sample quality tracking.
4. Quick response , enquiry will be repond within 24 hours
5. high qualified after sale service

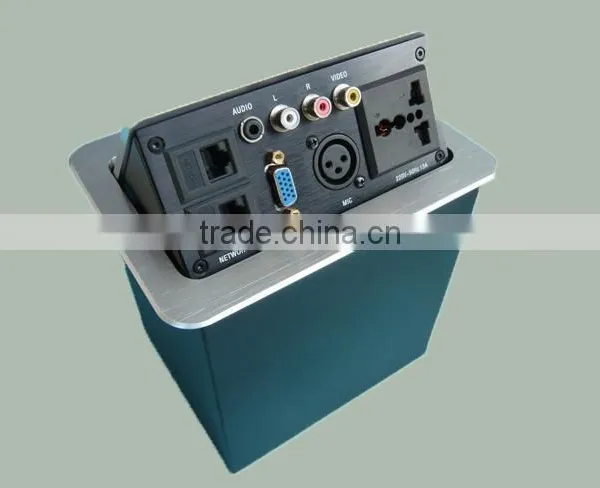

Pictures Of AV Table Box
