tyre recycle machine
Good quality with reasonable price. Easy operation

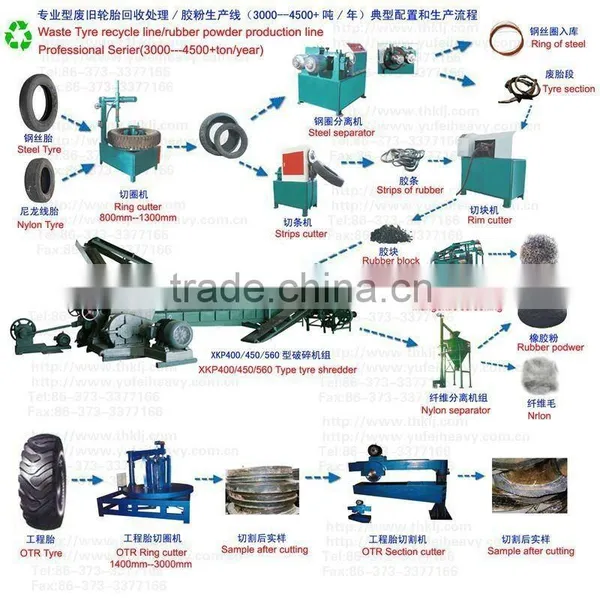

1. GENERAL
it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber
2. Analysis for output
XKP400 rubber crusher:
Output: 4500-6000kg/24 hour for about 20 mesh granule.
XKP450 rubber crusher:
Output :7000-12000kg/24 hour for about 20 mesh granule.
XKP560 rubber crusher:
Output : 10000-17000kg/24 hour for about 20 mesh granule.
3. XMF330 Rubber refine grinder
30-40mesh: 2500-4500kg/24 hour
40-60mesh: 2000-3500kg/24 hour
60-80mesh: 1500-2600kg/24 hour
machine

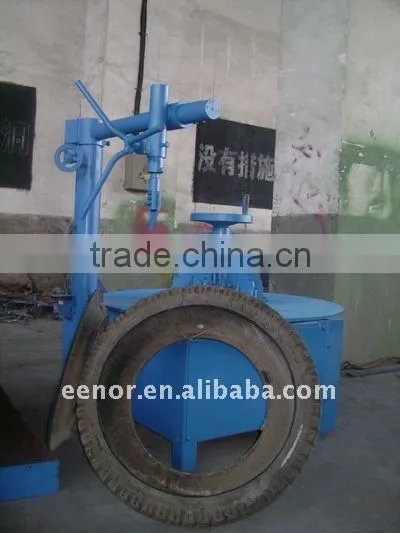

1.Ring cutter
cut the side of the tyre to the next step of segmentation.
Item |
Specification |
Motor power |
5.5 |
Speed of main screw |
46.8 r/min |
MAX Diameter of tyre |
1200mm |
Dimension |
1100*900*1700mm |
|
Purpose :To cut the steel ring from the tyre
| |
2. Loop machine
seperator steel wire
Item |
Specification |
Motor power |
15 KW |
Linear speed of front roller |
15.5 m/min |
Ratio of speed |
1.1 |
Dimension |
1520*1150*12101 |
Purpose:To Separate the steel ring from the rubber after 1 step. | |

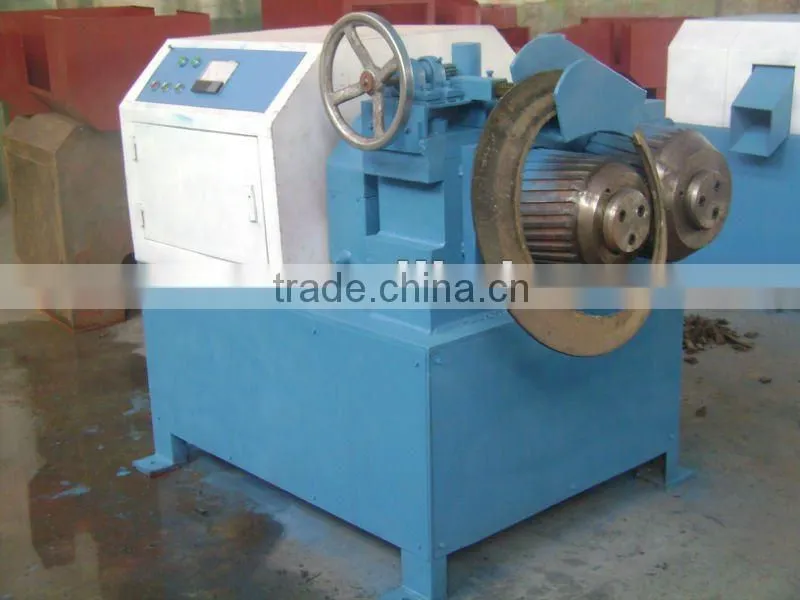

3.strip cutter
made the tyre strip
Name |
Parameter |
Motor Power |
5.5 |
Disc Diameter |
380 |
Rotate Speed |
18.4 |
Dimension |
1290*870*1550 |
|
Purpose: To cut the old tyre intostrip
| |
4.block cutter
made the block tyre
Item |
Specification |
motor power |
11kw |
Speed of main screw |
420 r/min |
Out diameter of cutter |
200mm |
Dimension |
1130*830*1100 |
Purpose: To Cut the strip into block | |

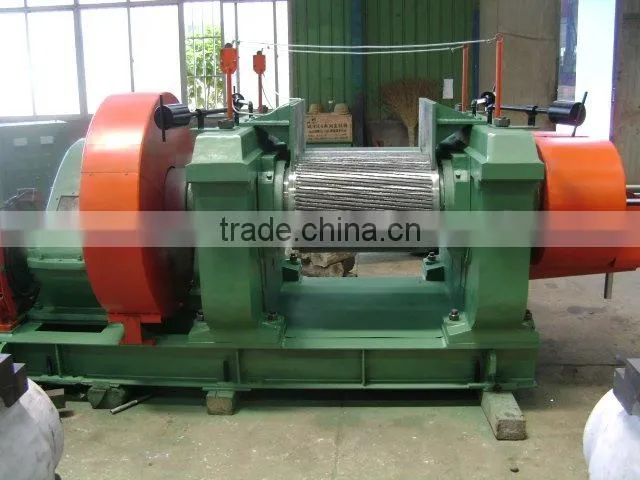

5. tyre crusher (bearing bush) it is host machine
Host (broken machines) mainly used for grinding tyres, line tyre, wire tyre and other rubber products, make the powder, and achieve the fineness
afte this there are conveyor equipment and the shaking equipment

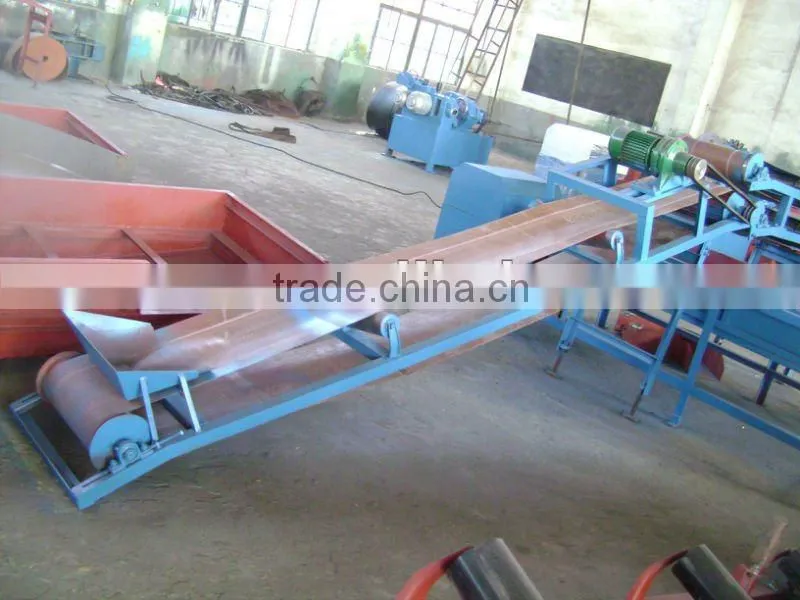

6. Big conveyor equipment
Mainly used to transmit the rubber blocks to the Tire Shredder
7. Small conveyor equipment

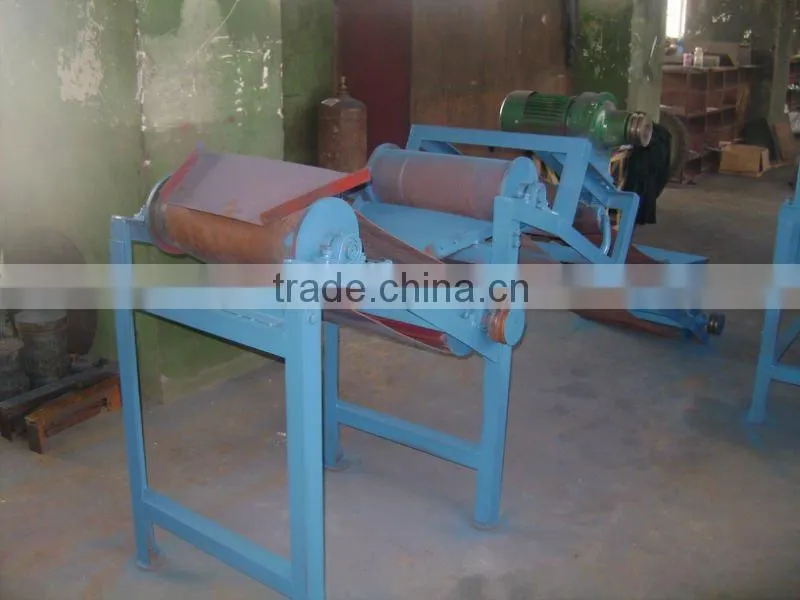

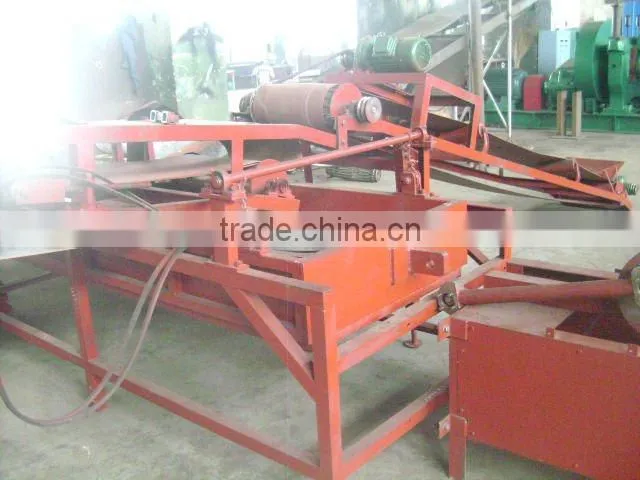

8. Big Magnet separator
9.Small magnetic reparator

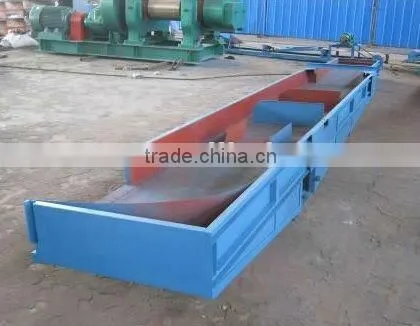

10.big Shaking screen
11.small shaking screen
12 .fine grinder
