tire recycling machine/rubber powder making machine
use main to produce rubber powder from the waste tyre
inclding :

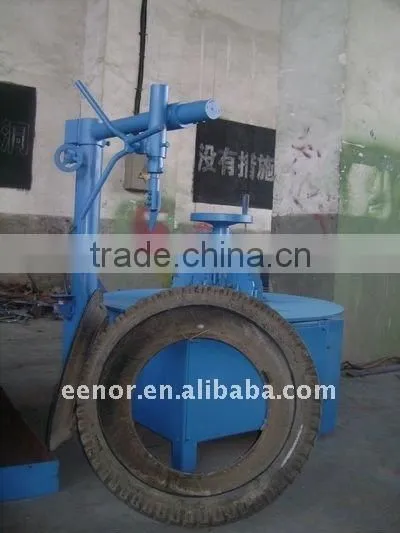

1.Ring cutter
This machine mian to cut the inner dimater of the tyre, and cut the side of the tyre to the next step of segmentation.
Item |
Specification |
Motor power |
5.5 |
Speed of main screw |
46.8 r/min |
MAX Diameter of tyre |
1200mm |
Dimension |
1100*900*1700mm |
|
Purpose :To cut the steel ring from the tyre
| |
2. Loop machine
steel ring seperator by double cell extrusion, and the two grooved roller speed differential will ring in the mouth than the wire separation, maintaining good physicalproperties of steel wire, rubber can then use it to avoid environmental pollution.
Item |
Specification |
Motor power |
15 KW |
Linear speed of front roller |
15.5 m/min |
Ratio of speed |
1.1 |
Dimension |
1520*1150*12101 |
Purpose:To Separate the steel ring from the rubber after 1 step. | |
3.strip cutter
trips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for specialmaterials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.
Name |
Parameter |
Motor Power |
5.5 |
Disc Diameter |
380 |
Rotate Speed |
18.4 |
Dimension |
1290*870*1550 |
|
Purpose: To cut the old tyre intostrip
| |
4.block cutter
Cutting machine can cut a tire strip, cut block, tool for the alloy cutting tools, nearly 9-11 tons per day, cutting tools are not sharp and repeated grinding
Item |
Specification |
motor power |
11kw |
Speed of main screw |
420 r/min |
Out diameter of cutter |
200mm |
Dimension |
1130*830*1100 |
Purpose: To Cut the strip into block | |

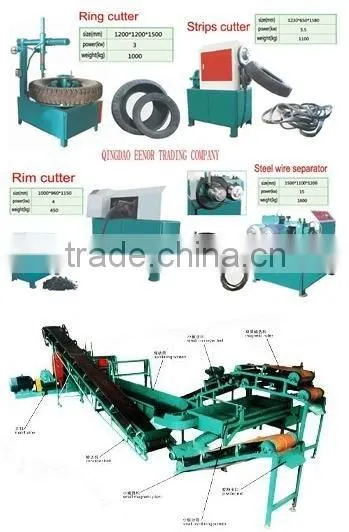

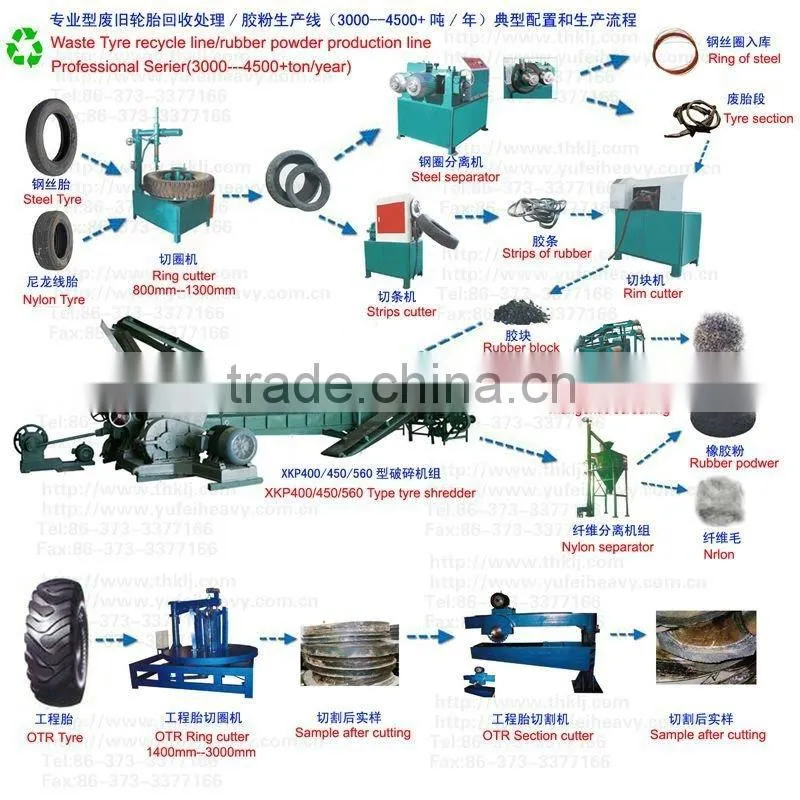

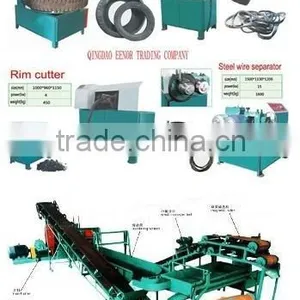

the whole line picture
tyre crusher is the main machine
the final product is rubber powder
the use of rubber powder
like top the picture

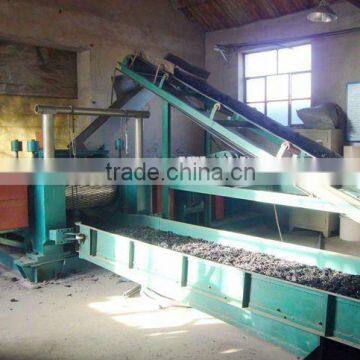

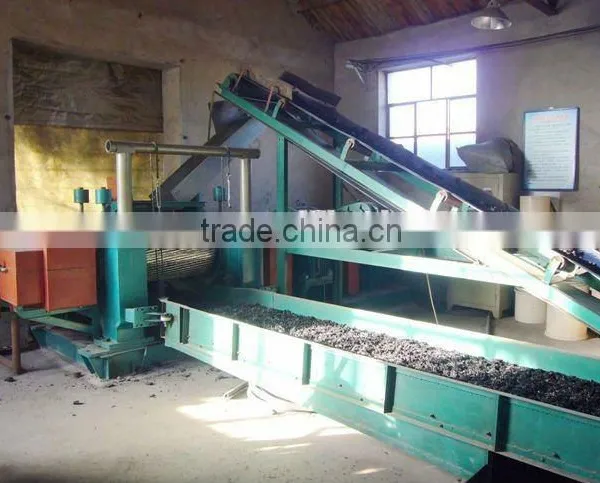

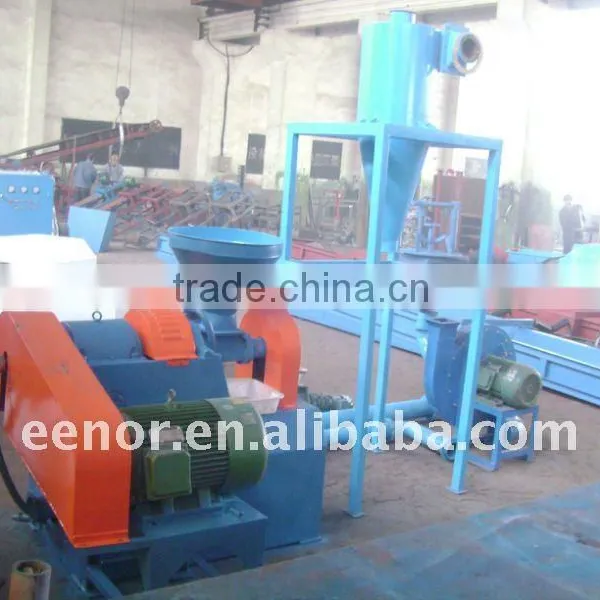

5. tyre crusher (bearing bush) it is host machine
Host (broken machines) mainly used for grinding tyres, line tyre, wire tyre and other rubber products, make the powder, and achieve the fineness

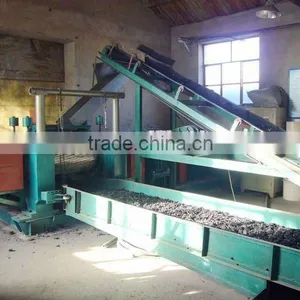

afte this there are conveyor equipment and the shaking equipment
6. Big conveyor equipment
7. Small conveyor equipment
8. Big Magnet separator
9.Small magnetic reparator
10.big Shaking screen
11.small shaking screen
Processing method:
Physic mechanical crushing method at normal temperature of waste tyre:no chemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.
