Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13





Hydraulic Hose are widely used in the hydraulic and fluid conveying ststem of machinery,



 oilfield, mine, building, transportation and other industries.







Take SAE 100 R1 as example





Application: Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water based hydraulic fluids.

Inner Tube: Nitrile

Reinforcement: One braids of high-tensile steel wire

Cover compound: Neoprene

Temperature Range: -40°C~ +100°C



part

In

Hose Size ID DIN Dash Size

Hose   OD

Max.Working pressure

Min.Bend Radius

Min..burst pressure

Weight

(ibs/foot)

in

mm

psi

mpa

in

mm

psi

mpa

GR1SN-03

3/16

4.8 Din Dash size

0.47

11.9

3630

25

3.5

89

14520

100.1

0.12

GR1SN-04

1/4

6.4 Din Dash size

0.534

13.6

3270

22.5

4

102

13080

90.2

0.15

GR1SN-05

5/16

7.9 Din Dash size

0.595

15.1

3120

21.5

4.5

114

12480

86

0.17

GR1SN-06

3/8

9.5 Din Dash size

0.689

17.5

2615

18

5

127

10460

72.1

0.22

GR1SN-08

1/2

12.7 Din Dash size

0.813

20.7

2320

16

7

178

9280

64

0.28

GR1SN-10

5/8

15.9 Din Dash size

0.938

23.8

1890

13

8

203

7560

52.1

0.33

GR1SN-12

3/4

19 Din Dash size

1.096

27.8

1530

10.5

9.5

241

6120

42.2

0.41

GR1SN-16

1

25.4 Din Dash size

1.408

35.8

1280

8.8

12

305

5120

35.3

0.62

GR1SN-20

11/4

31.8 Din Dash size

1.696

43.1

920

6.3

16.5

419

3680

25.4

0.8368

GR1SN-24

11/2

38.1 Din Dash size

1.971

50.1

730

5

20

508

2920

20.1

1.0921

GR1SN-32

2

50.8 Din Dash size

2.503

63.6

580

4

25

635

2320

16

1.3413




























Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13

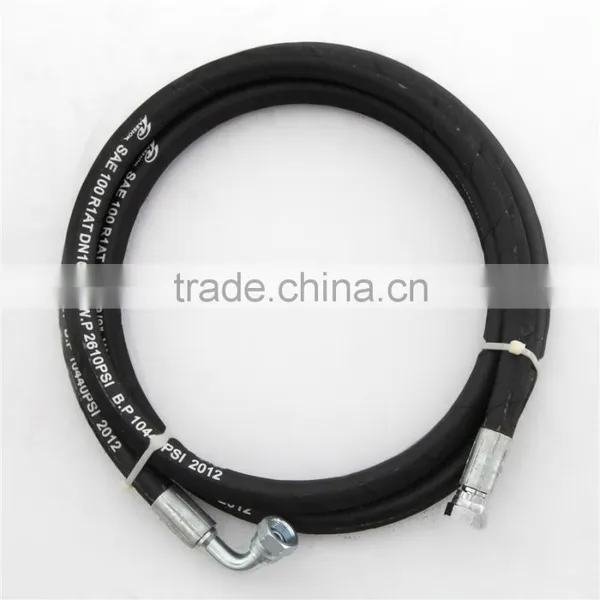

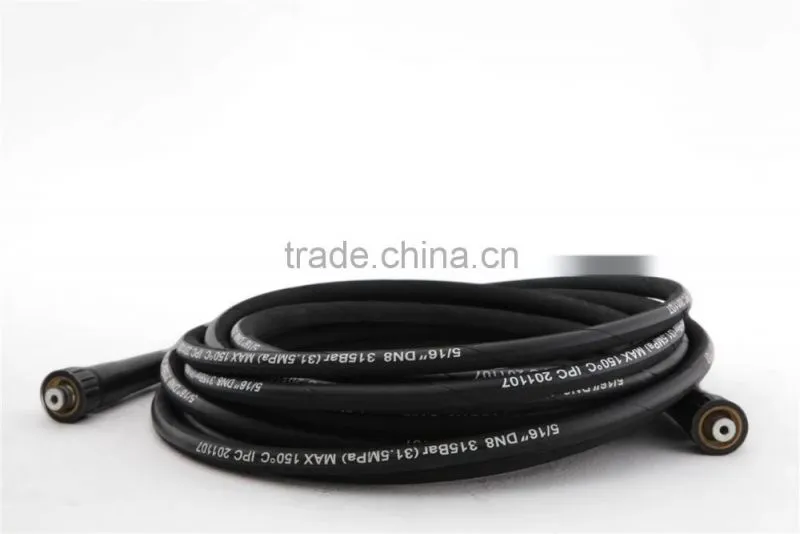

Products

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13









Production Flow

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13



Packaging & Shipping

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13

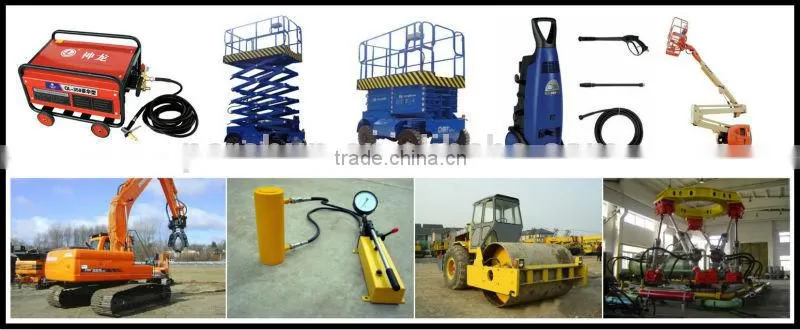

Application

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13



Exhibition

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13

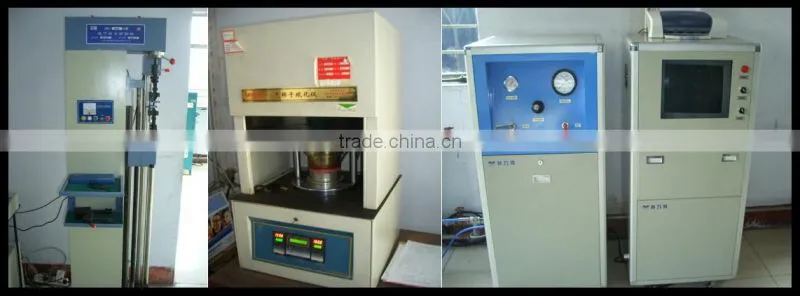

Testing Equipment

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13



Certificate

Hydraulic Hose SAE 100 R1 R2 R3 R5 R6 R9 R12 R13
