Specifications

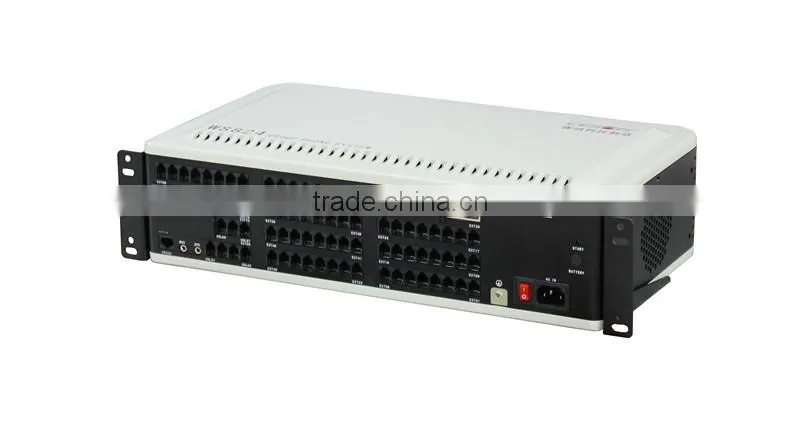

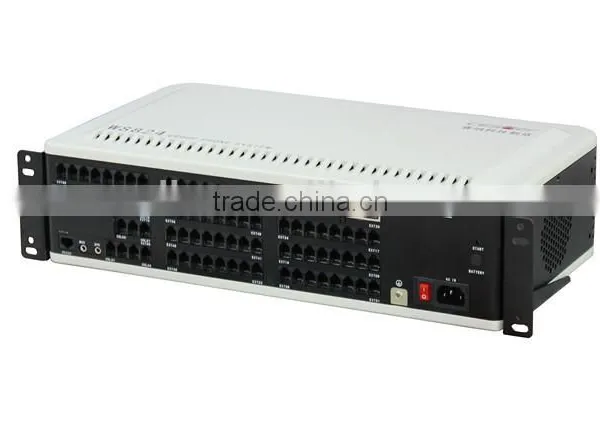

VoIP Telephone Exchange/ IP PBX/PABX System
with 8 FXS/FXO/LifeLine modules
built-in SIP/IAX proxy server and NAT functions
System TFTP upgrade |
Data backup and restore |
| SIP 2.0 Standard |
| WEB remote interface management |
| Multiple voice codec format(A,U,iLBC,G729 |
| Multiple voice codec format |
| 100 IP extension account |
| 4 Traditional voice concurrent channel |
| 20 IP plarform concurrent calls |
| IP voice calls bypass |
| IP extension account,IP trunking support SIP type |
| Flexible networking |
| DDNS( Dynamic Domain Name Service) |
| IP call extension acoount level limit |
Detail Picture
WS824(9)i mother boad

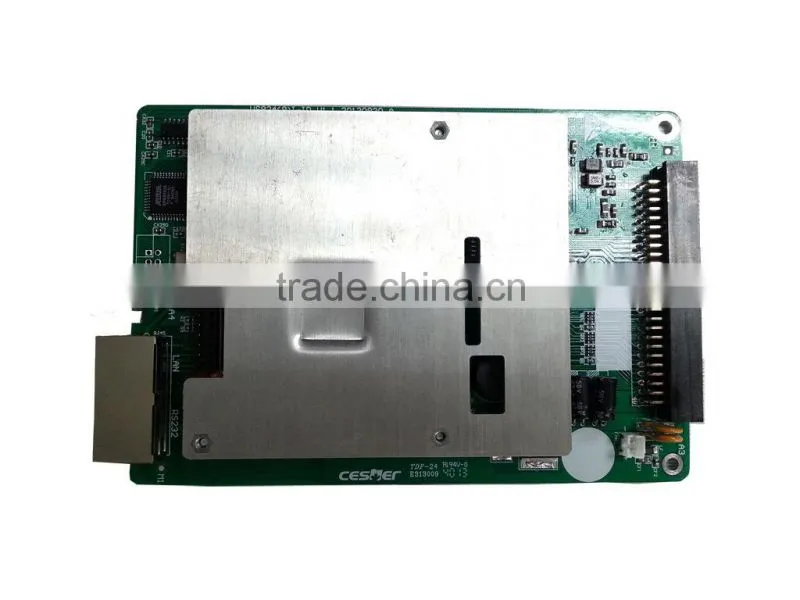

WS824(9)i IP function board
Note:Connect the mainboard EXPCN1 slot or extension of the slots on the board expansion slots (50P)
WS824(9)i-008C exts board
All of extension port can be connect with common phone.
WS824(9)i-300L Co lines board
Note:300L board only can connect the Co lines slot COPCN1 1 and 2 of mother board
WS824(9)i-P02 power board(optional)
Specification Parameter
| Size | 430*240*124mm |
| Weight | 3kgs |
| FXS(PSTN) | 4/10 |
| FXO+FXS | 4/88 or 10/72 |
| CDMA/GSM | Optional |
| IP user | 100 |
| IP concurrent | 20 |
IP and Traditional voice concurrent channel | 4 |
| SIP trunk | 9 |
| LAN Port | 1 |
| SIP Protocol | YES |
| Record | Optional |
Power Specification
(1)Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
Output impedance:600Ω
(2)Battery backup supply:24VDC/76Ah
Shenzhen Guowei Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
3 units in a carton; Carton Size: 670X340X545mm;
Carton Weight: 9kgs
