Home > Consumer Electronics > Battery & Charger > Button Cell Battery > Lithium Battery CR1620 Button Cell

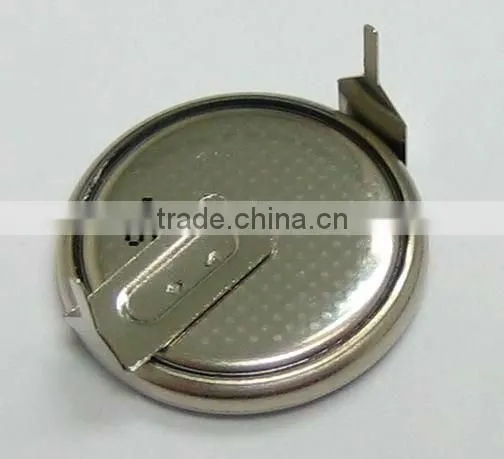

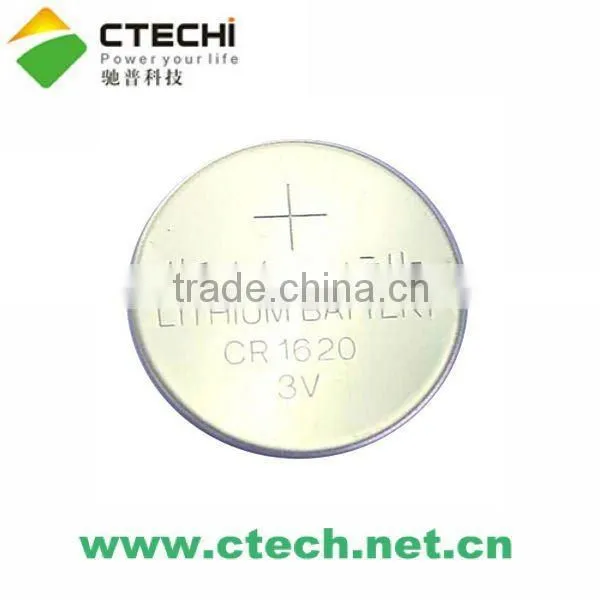

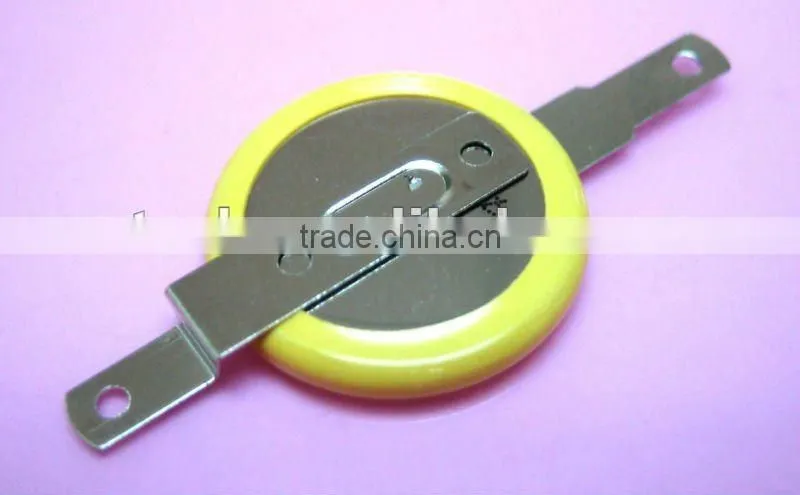

Lithium Battery CR1620 Button Cell

Lithium Battery CR1620 Button Cell thumbnail-1
Lithium Battery CR1620 Button Cell photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
well known brand
Model Number:
CR1620
Contact Supplier Request Quote Chat Now
Shenzhen Chipu Electronic Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name well known brand
Model Number CR1620
Battery Type Other, lithium battery
Size 16.0*2.0mm
Nominal Capacity 70mah
Nominal Voltage 3.0v

Specifications

Nominal voltage: 3V
Nominal capacity: 70mAh
Diameter: 16.0mm
Height: 1.60mm
Weight: 1.3g

1.OEM,Delivery in time
2.High quality
3.ROHS.CE.SGS Authentication
4.ISO 9001 passed.
5.CR1620 Lithium Button Cell

3.0V CR1620 Lithium Button Cell Battery

Nominal voltage : 3.0V

Nominal capacity : ≥70mAh

Instantaneous short-circuit current: ≥200mA (Time≤0.5 second)

Off-load voltage : ≥3.25~3.6V

Storage temperature: 0-40°C

Oporating temperature: -20-60°C

Standard weight: 1.2 g

Service output:  Initial  ≥66.5h

                After 12 months storage  ≥65h

(Continuous discharge with load 3 kΩ,till 2.0v end-voltage at 20-25°C)



CR1620 Llthium Button Cell

Other size are also available in our product line:

1,CR2032.CR2025.CR2016.CR927.CR1025.CR1212.CR1216.CR1220.CR1225.CR1616.CR1620.CR1625.CR2330.CR2430.CR2450.CR2477

2.LR521/AG0.LR621/AG1.LR726/AG2.LR41/AG3.LR626/AG4.LR754/AG5.LR920/AG6.LR927/AG7.LR1120/AG8.LR936/AG9.LR1130/AG10.LR721/AG11.LR43/AG12.LR44/AG13
