CR2032 2025 2016 Button Battery Manual Sealer Hydraulic Coin Cell Crimping Machine
The current price includes CR2032, 2025, and 2016 crimping Dies. If you need extra dies or Coin Cell disassembles dies, Please contact us.Description
Coin Cell Manual Sealer Machine is applied to the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing, and can also be used for small-batch trial production in factories. It adopts electric mode and saves effort. It can also be used for dry powder tableting, wet powder tableting, compression molding, riveting and other operations with different molds. A set of molds for CR20 series button batteries such as CR2032, CR2025, CR2016, etc.
Features

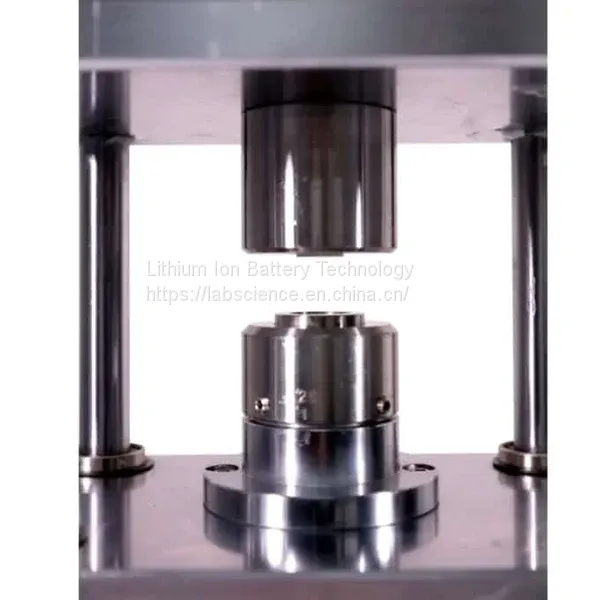

1. The lower mold is limited by a high-precision positioning ring to control the height of the battery packaging, so as to avoid excessive and unstable packaging pressure, which may cause damage to the sealing cup.
2. The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.
3. Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper-pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.

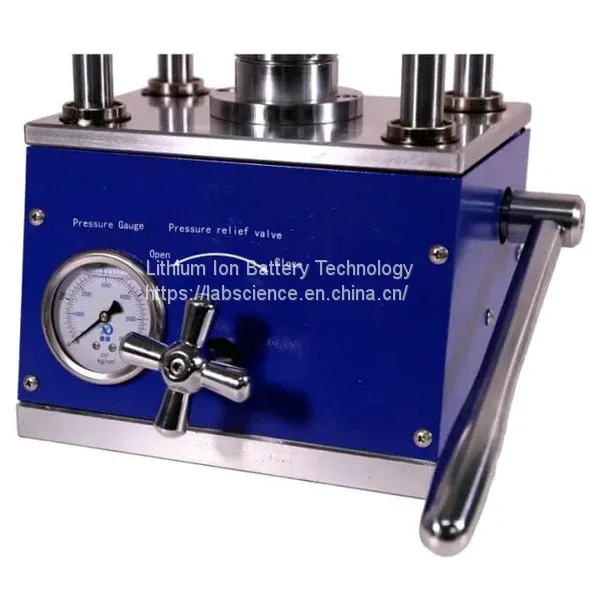

4. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
5. Using a hydraulic drive, the pressure can reach 8T, and the battery seal has no vibration and no leakage.
6. specially designed hydraulic structure, labor-saving operation.
7. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, and stable and safe use.
8. Small size, easy to operate, can be placed in a glove box for operation.
9. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
