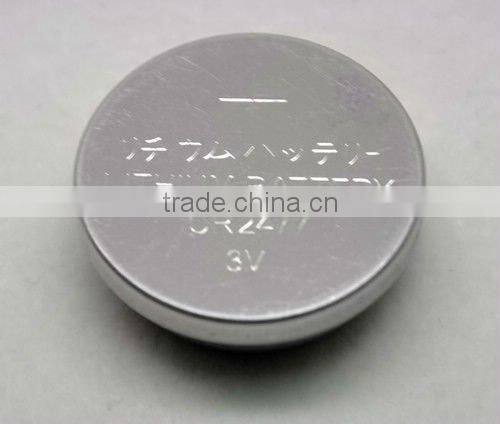

Lithium Button Cell CR2477 3V

Lithium Button Cell CR2477 3V thumbnail-1
Lithium Button Cell CR2477 3V photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CTECHI
Model Number:
CR2477
Contact Supplier Request Quote Chat Now
Shenzhen Chipu Electronic Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CTECHI
Model Number CR2477
Battery Type LiMnO2
Size 24*7.7mm
Nominal Capacity 1000mAh
Nominal Voltage 3v

Specifications

*3v lithium button cell cr2477
*Low Self Discharge Rate
*No Leakage Allowed
*Competitive Price
*With Pins(Tabs)


3V Lithium Button Cell CR2477

Specifications



Specifications

*3v lithium button cell cr2477
*Low Self Discharge Rate
*No Leakage Allowed
*Competitive Price
*With Pins(Tabs)

3v lithium button cell cr2477 Battery Datesheet As Below:

     ITEM

    UNIT

  SPECIFICATIONS

  CONDITIONS

  Nominal voltage

      V

     3.0

Standard discharge

  Nominal capacity

     mAh

     950

  Standard discharge

Instantaneous short-circuit     current



     mA

                     ≥350

               Time≤0.5second

Off-load voltage

      V

     ≥3.20

   Unit cell

 Storage temperature

      °C

     0-35



 Standard weight

      g

     8.5

   Unit cell



Service

output

Initial

      h

     ≥880

Continuous discharge with load 3 kΩ,

till 2.0v end-voltage at 20-25°C

After 12 months storage

      h

     ≥862



     ITEM

    CONDITIONS

   CHARACTERISTICS

   Self-discharge

      rate

Stored for 12 months at normal temperature,

then continuously discharged with 15kΩ load

 till 2.0v end-voltage



    Less than ≤2%



   ITEM

           TEST METHODS

   STANDARED



Dimensions

Using vernier caliper(accuracy≥0.02) while avoiding short-circuit

Diameter

24.5(-0.15)

mm

Height

7.70(-0.30)

mm

 Off-load

  voltage

Using multimeter(accurac≥0.25%)

internal resistance≥1MΩ



      ≥3.20V

Instantaneous

Short-circuit

current

Time of short-circuit should be less than 0.5

Sencond and avoid repeated test within half

An hour



      ≥350mA

Appearance

Eyeballing

Bright ,clen,no rust,no leakage,And no flaw



Capacity

Continuously discharge for

8 hour with load

3kΩ,temperature at 20-25°C,

humidity at 65

±20% till 2.0v end-voltage

(for fresh battery

only:within 3 months)



     ≥880h



Vibration test

Put battery on the platform of the vibrations

Machine,start the machine and adjust the

Frequency form 10 times per minute to 15

Times per minute.keep it running for an hour



Characteristics keep stability

Leakage at

  hight

temperature



Stored under temperature(45°C)for 30 days



  Leakage rate≤0.5%

 Over

 Discharge

   Test

After 2.0v end-voltage, continuously discharged for 5 hours



    No leakage allowed









Lithium Button Cell CR2477 3V
