Help CenterLithium Cell Cr2354
Related Products
Specifications
lithium cell cr23541.Long working and shelf life.
2. high quality
3.Quality and high reputation first.
1.button cell CR2354
2.SGS,CE,ROHS approval
3.Available in standard cylindrical and coin size
4.Envioronmental Produ
1. button cell CR2354
2.Shelf life: 2 years
3.Certificates: SGS, CE, ROHS
4.Fast charge capacity
5.Environmental friendly
6.No effect memory
7Application:Cameras, Smoking Alarm, Computer Peripherals, MP3/4, Memory Backup, Lighting and Communication Equipments, etc.
8.Other similar Lithium Manganese Button cells
1) We give a one year guarantee on quality for our battery.
It will be replaced in the event of failure during the parts
warranty period.
2)We can weld the tabs or add the wire and connector according
to customer`s requirement.

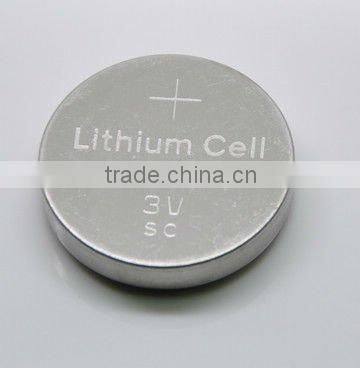

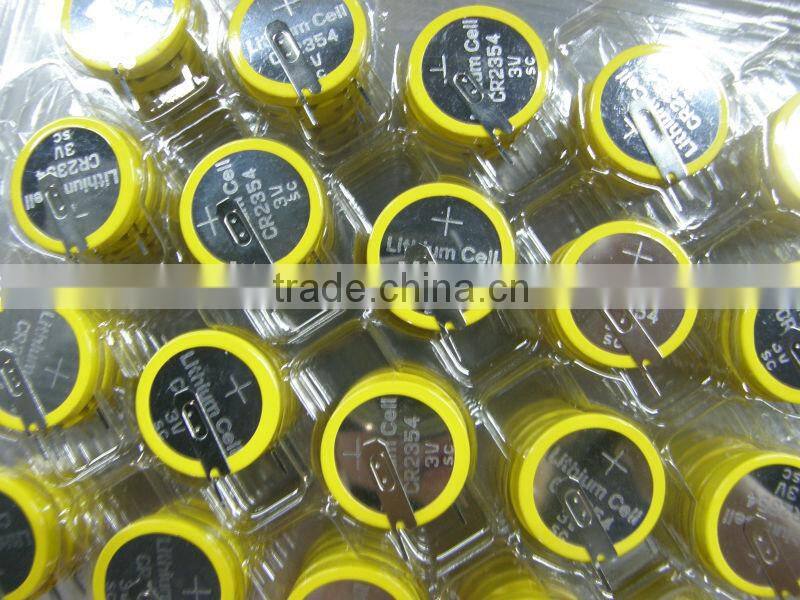

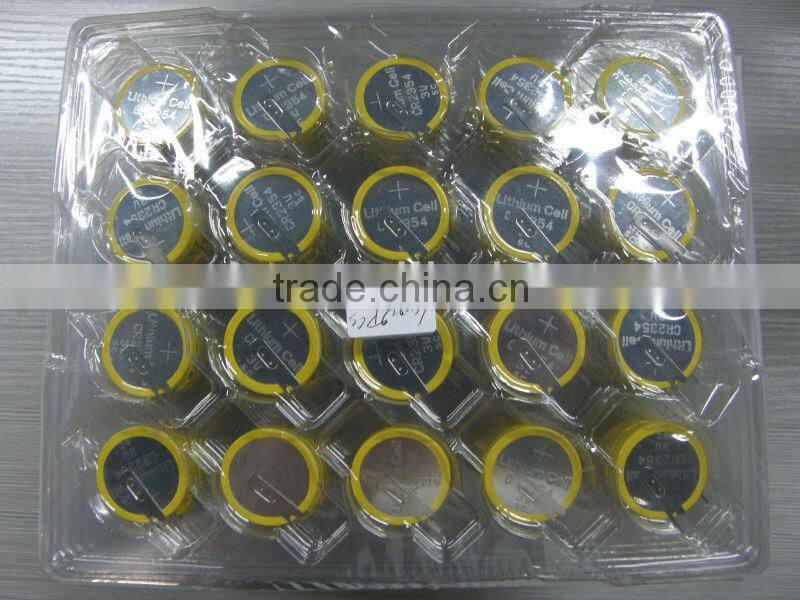

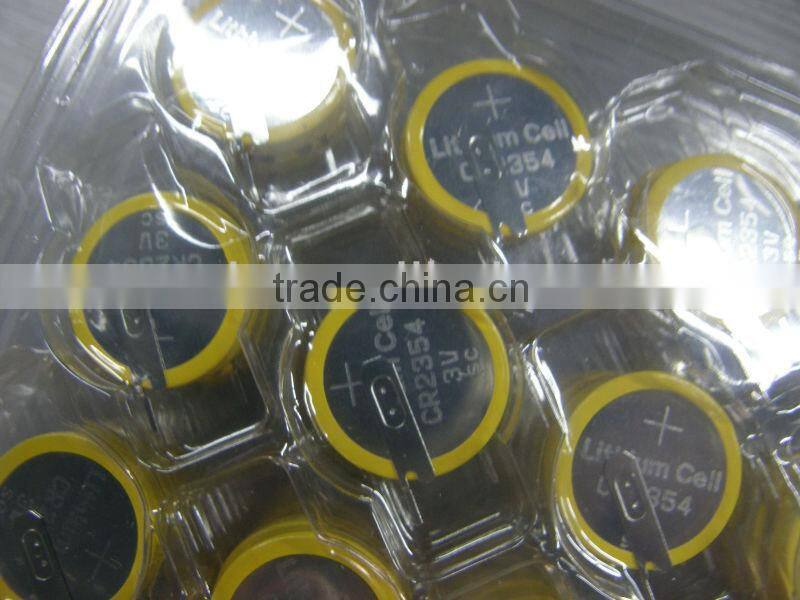

3V CR2354 lithium battery with tabs
Model: CR2354
Nominal Voltage: 3.0V
Nominal Capacity: 490mAh
Shelf Life: 3 years
Application: Watches, Calculators, Portable Computers, Electric Keys, Electronic Dictionaries, Card-type Recorders, IC Card, Memory Cards for medical treatment equipment,etc.
Main Features:
3V nominal voltage, double that of conventional dry battery;
Stable and reliable discharge voltage;
Excellent storage characteristics;
Low self discharge rate of less than 2 percent;
Long shelf life
Excellent fast pulse discharge characteristics;
Wide operating temperature range from -20°C to 60°C
NOTE: We supply various PANASONIC, Maxell and neutral CR 3V Lithium button cell batteries WITH PINS OR WITHOUT PINS, if you want to see more, please see the table list below:
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Load (Ω) | Discharge Time (H) | Current (uA) | Diameter (mm) | Height (mm) | Approx. Weight (g) |
| CR3032 | 3.0 | 520 | 15 | 2600 | 13 | 30 | 3.2 | 8 |
| CR2477 | 3.0 | 1050 | 7.5 | 2625 | 15 | 24.5 | 7.7 | 8.5 |
| CR2450 | 3.0 | 540 | 15 | 2700 | 13 | 24.5 | 5 | 6.5 |
| CR2430 | 3.0 | 275 | 15 | 1375 | 10 | 24.5 | 3 | 4.5 |
| CR2335 | 3.0 | 300 | 15 | 1500 | 10 | 23 | 3.5 | 4.1 |
| CR2354 | 3.0 | 490 | 15 | 2450 | 10 | 23 | 5.4 | 6 |
| CR2332 | 3.0 | 300 | 15 | 1500 | 8 | 23 | 3.2 | 4.2 |
| CR2330 | 3.0 | 250 | 15 | 1250 | 8 | 23 | 3 | 4 |
| CR2325 | 3.0 | 210 | 15 | 1050 | 8 | 23 | 2.5 | 3.3 |
| CR2320 | 3.0 | 175 | 15 | 875 | 8 | 23 | 2 | 3 |
| CR2050 | 3.0 | 300 | 15 | 1500 | 8 | 20 | 5 | 4.2 |
| CR2032 | 3.0 | 210 | 15 | 1050 | 5 | 20 | 3.20 | 3 |
| CR2032 | 3.0 | 190 | 15 | 950 | 5 | 20 | 3 | 2.8 |
| CR2025 | 3.0 | 150 | 15 | 750 | 3 | 20 | 2.5 | 2.4 |
| CR2020 | 3.0 | 125 | 15 | 625 | 3 | 20 | 2 | 2.1 |
| CR2016 | 3.0 | 75 | 30 | 750 | 2 | 20 | 1.6 | 1.8 |
| CR2012 | 3.0 | 50 | 62 | 1030 | 1 | 20 | 1.2 | 1.5 |
| And more, such as CR1632, CR1625, CR1620,CR1616, CR1530, CR1225, CR1220, CR1216, CR1212, CR1130, CR1025, CR927, CR920, CR816,CR632 |
