Flexible SAE J1401 Rubber Brake Hose for Automobile
- 80000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card PayPal
You May Like
-
SAE J1401 Flexible hydraulic rubber brake hose for automobile
-
Flexible SAE J1401 hydraulic brake hose for automobile
-
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose
-
Chinese Manufacturer SAE J1401 Hydraulic Brake Hose 1/8" HL
Quality Choice
-
1/8 Inch Dot SAE J1401 Hydraulic brake hose
-
12.7mm Air brake Hose SAE J1402 for vehicle air brake system
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Passion rubber brake hose | |
| Model Number | SAE J1401 rubber brake hose |
Product Description
Flexible SAE J1401 rubber brake hose for automobile
Standard: SAEJ1401 GB16897-1997 MS263-49
Working temperature range: -40℃ ~ +100℃
Innter Tube: NBR/EPDM
Reinforcement: PVA and PET
Outside Tube: CR/EPDM
Uses: act as apressure transmission for auto hydraulic pressure brake system.
Features: the hoses are braided with high strength, manifold, polyester threads and have such
good performances as the followings: good flexibility bursting resistance, high tensile strength,
low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance
and good compatibility, with stable, sate and reliable braking effects.
| Number | I.D. | O.D. | Wall | Wall Diff | Expansion ml/m max | BrustPress | |
| mm | mm | mm | max. mm | 6.9mpa | 10.3mpa | Min. Mpa | |
| 1 | 3.2+0.1 -0.2 (1/8) | 10.5+0.3-0.2 | 3.65 | ≤0.25 | <1.08 | <1.38 | >49.03 |
| 2 | 4.8+-0.2 (3/16) | 13+-0.3 | 4.35 | ≤0.30 | <1.81 | <2.36 | >34.5 |
| 3 | 6.3+-0.2 (1/4) | 15+-0.3 | 3.75 | ≤0.30 | <2.69 | <3.84 | >34.5 |

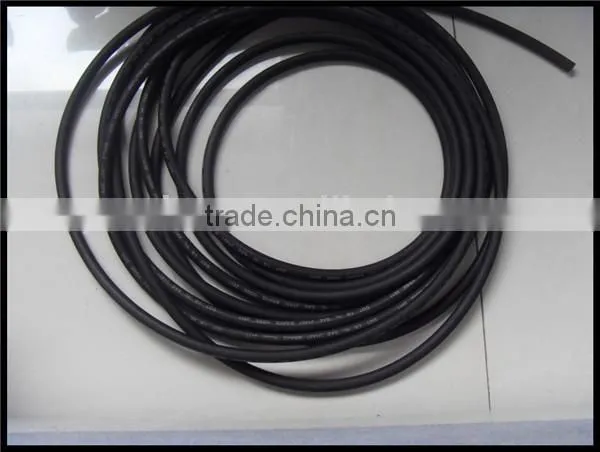

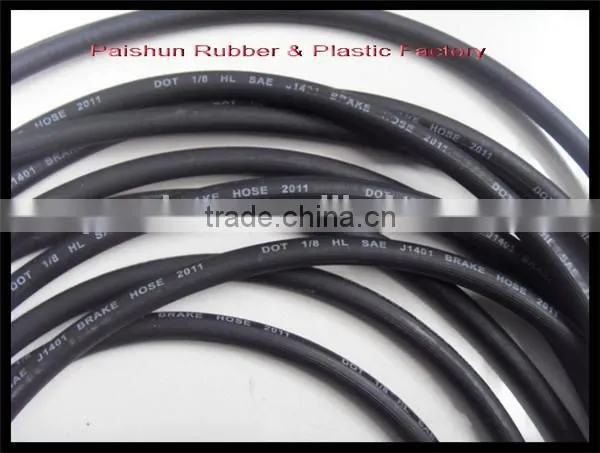

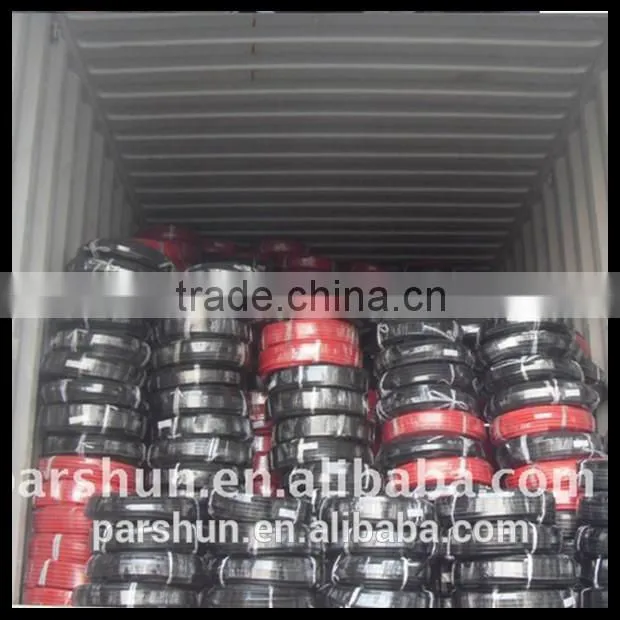

Picture of SAE J1401 rubber brake hose
We can package according to your requirement.
Trade Terms: EXW, FOB, CIF.
Payment Terms: T/T, L/C, Western Union, Paypal, Escrow, MoneyGram.
Delivery Time: Depend on your quantity.(Usally 30 working days for a 20' container)

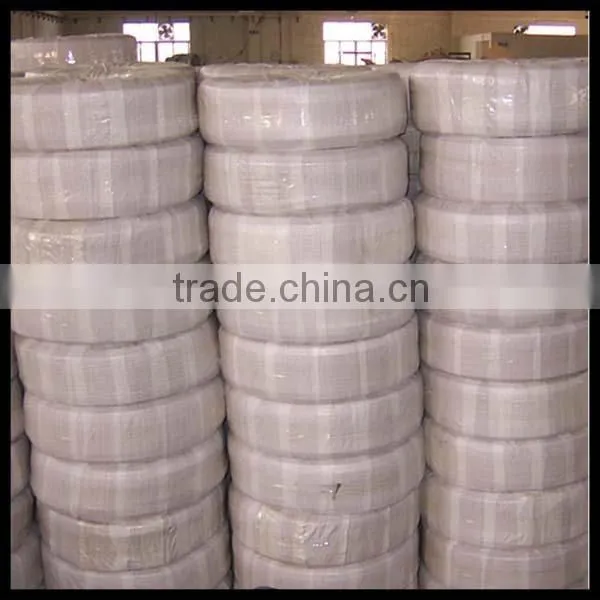

Packing: OPP film, Poly stripe, neutral carton or customize.
Shipping: By sea, by air and by express delivery.
PASSION HOSE!
PASSION FOR YOU!

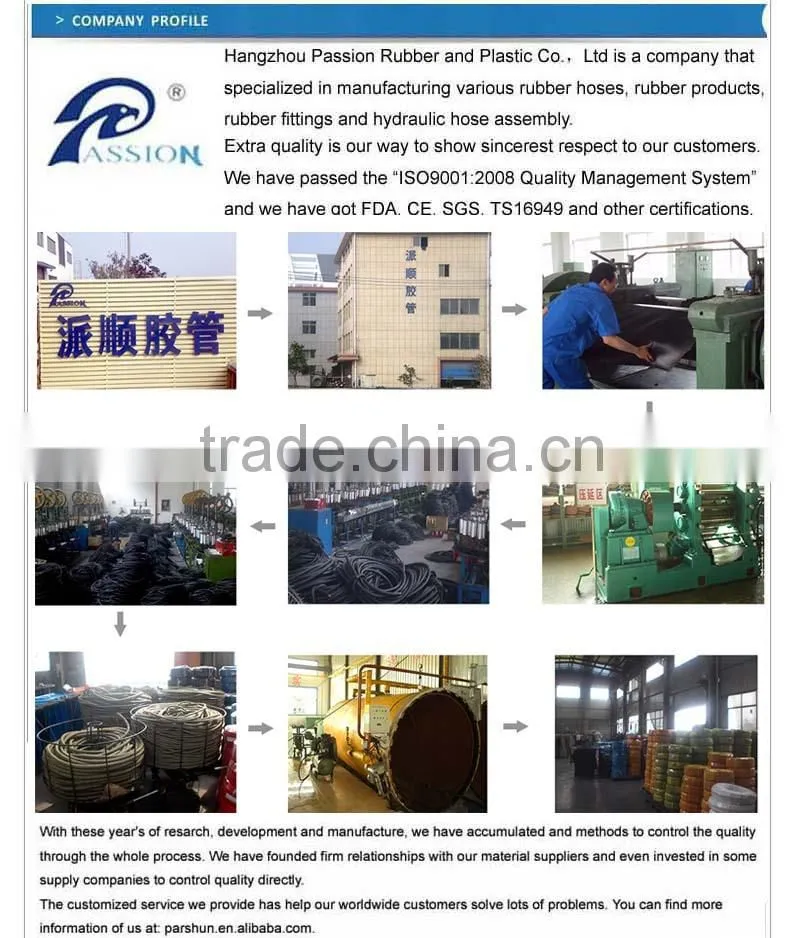

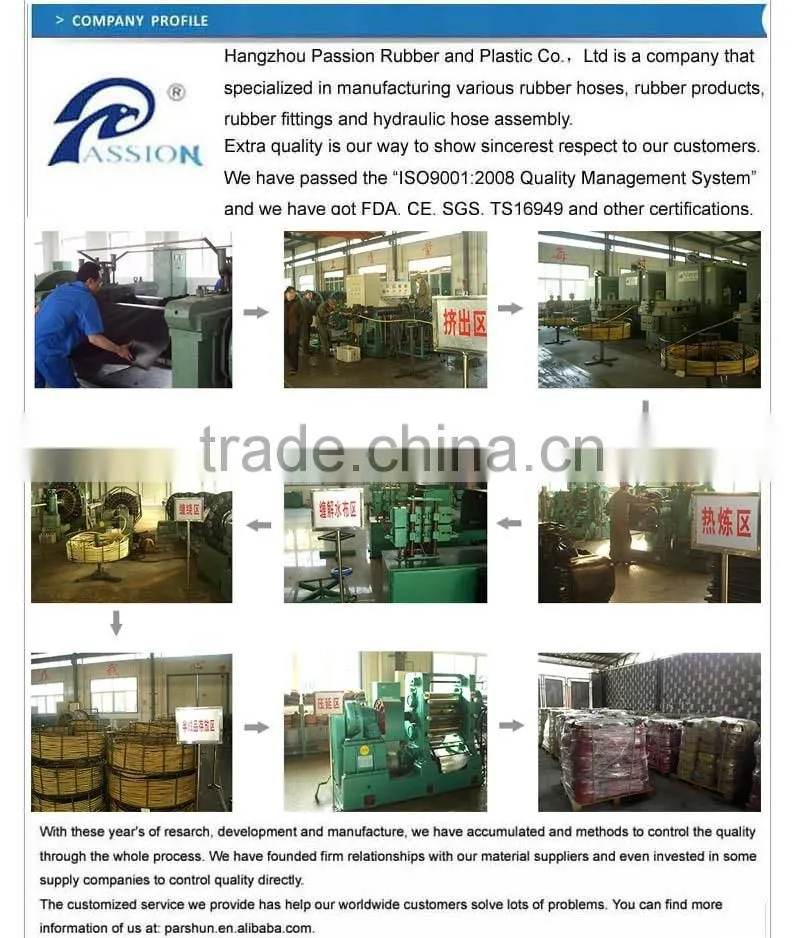

PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
