1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-1
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-2
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-3
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-4
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-5
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose thumbnail-6
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-1

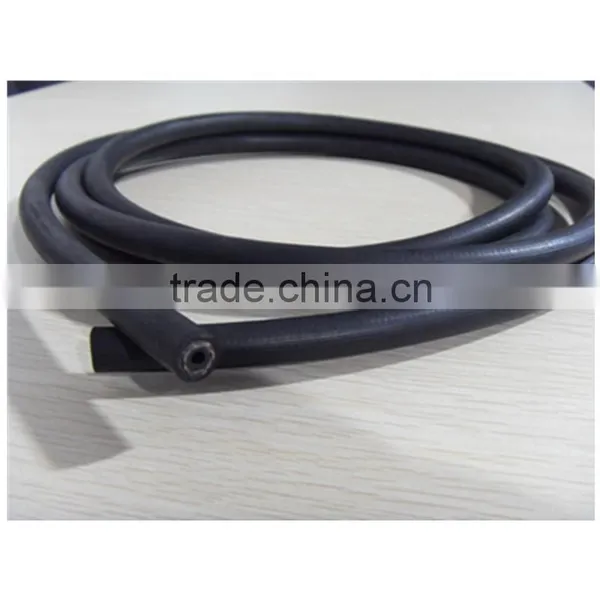

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-2
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-3
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-4
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-5
1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose photo-6
US$ 0.78 - 0.95 MOQ: 2000 Meters
Key Specifications
Get Latest Price
Type:
Brake Hose
Material:
EPDM / CR / NBR
Certification:
DOT
Contact Supplier Request Quote Chat Now
Hangzhou Paishun Rubber And Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Brake Hose
Material EPDM / CR / NBR
Certification DOT
Size 1/8'' ID
Car Make Universal Cars
OE NO. OEM
Place of Origin Zhejiang, China
Brand Name PASSION
Model Number 1/8''



Company Information

Factory Size: 1,000-3,000 square meters
  Factory Location: Waidong Village, Fuchunjiang Town, Tonglu County, Hangzhou City, Zhejiang Province, China
  No. of Production Lines: 3
  Contract Manufacturing: OEM Service Offered   Design Service Offered   Buyer Label Offered
  Annual Output Value: US$5 Million - US$10 Million
  Product Price Range: Low and/or Average



  Business Type: Manufacturer
  Main Products: Fiber Braid Rubber Hose,Hydraulic Rubber Hose,Silicone Rubber Hose / Elbow Rubber Hose,Hydraulic Hose Fitting,X Pocket Hose
  Location:

Zhejiang, China (Mainland)

Production Capacity

Factory Size : 1,000-3,000 square meters

No. of Production Lines : 3
  Year Established: 2007
  Number of Employees: 11 - 50 People
  Total Revenue: confidential
  Main Markets: Eastern Europe, Western Europe, Southern Europe, Northern Europe, Mid East
  Product Certifications: CE
  Average Lead Time: 20 Day(s)





























































Product Overviews

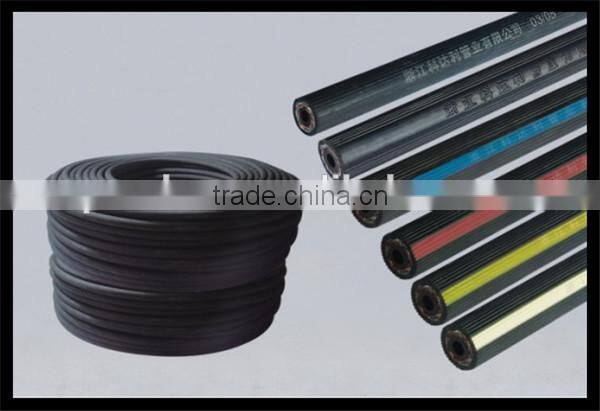

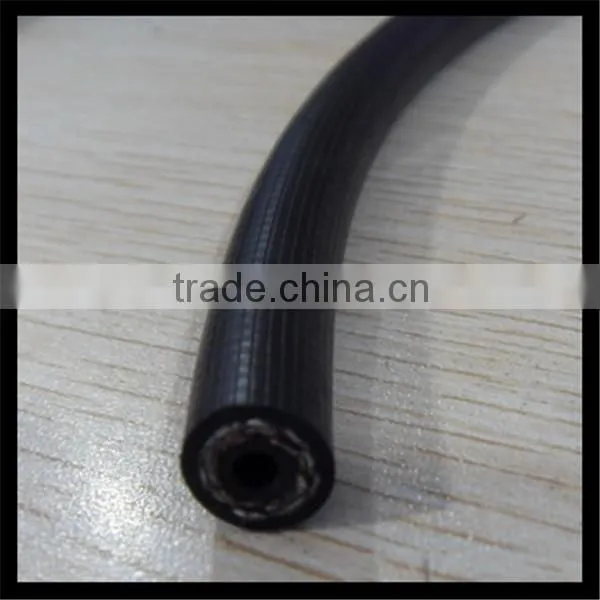

Hydraulic Brake Hose SAEJ1401

Structure:  1, Inner layer: NBR / EPDM

                 2, Intermediate reinforced layer: PVA / PET

                 3, Outer Layer: CR/ EPDM



Appearance: Stripe Face



Standard: SAEJ1401



Working Temperature: -40C to +100C



Application: Used for automobile hydraulic brake hose system transfer pressure.


Property: high strength polyester thread weaving, flexibility, more content of explosion resistance, high tensile strength, low expansion.Hose ozone resistance, low temperature flexibility and high temperature resistant, good intermiscibility, excellent performance, braking effect is stable, safe and reliable.

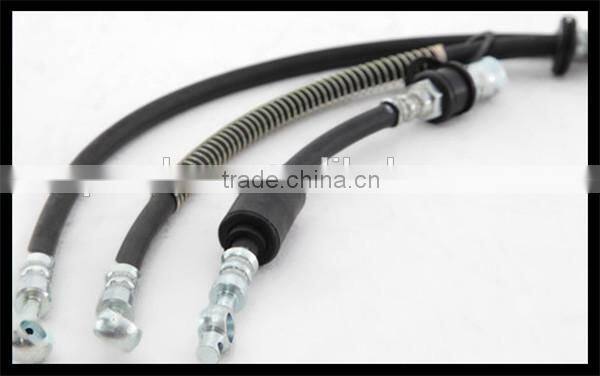

Hose Assembly can be supplied



ID size(mm)       OD size(mm)       Wall (mm)     Max. Expansion ml        Min. Burst Pressure (Mpa)
  3.2+-0.2             10.5+-0.3            3.65           <1.08 at 6.9mpa                     >49.03
  4.8+-0.2             13+-0.3               4.35           <1.81 at 6.9mpa                     >34.5
  6.3+-0.2             15+-0.3               3.75           <2.69 at 6.9mpa                     >34.5



1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose



1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

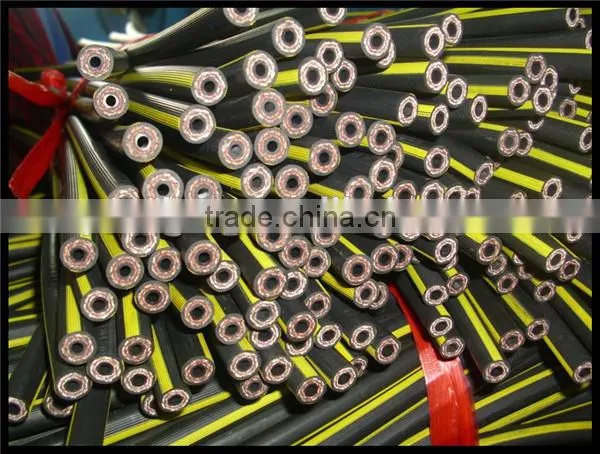

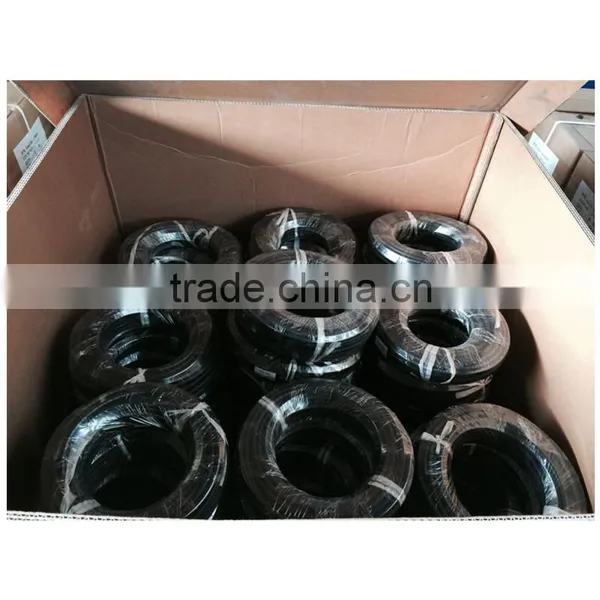

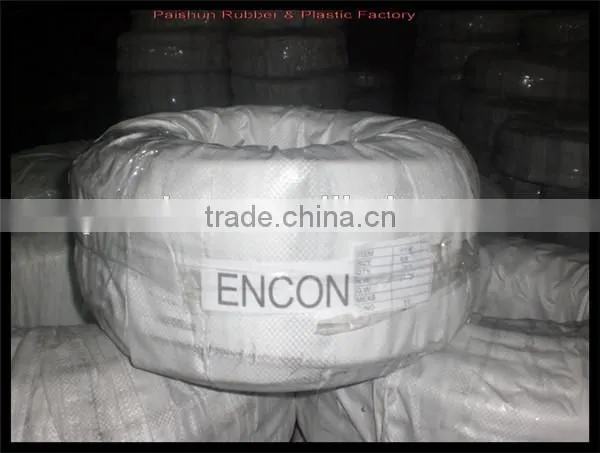

Packaging & Shipping

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

 1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

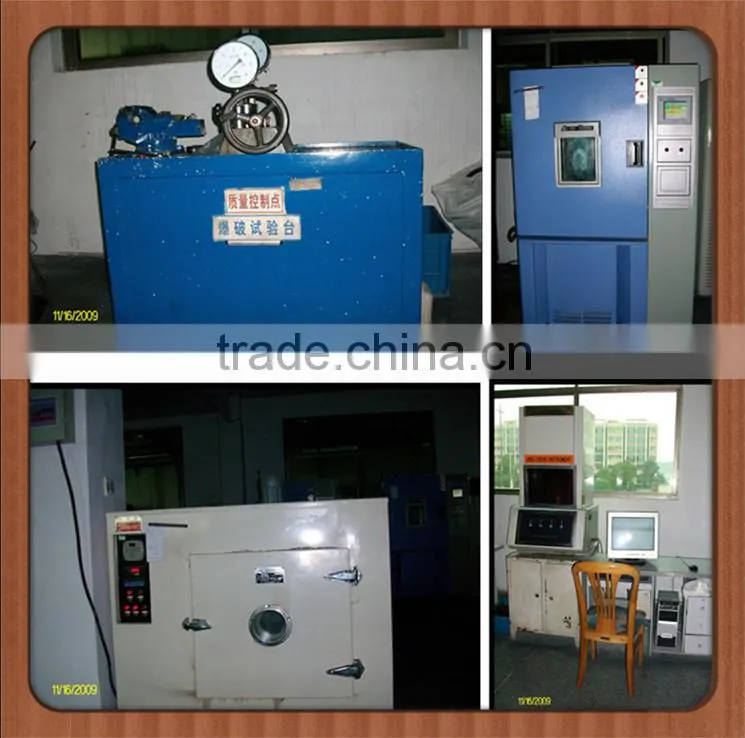

Production Flow

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

 1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

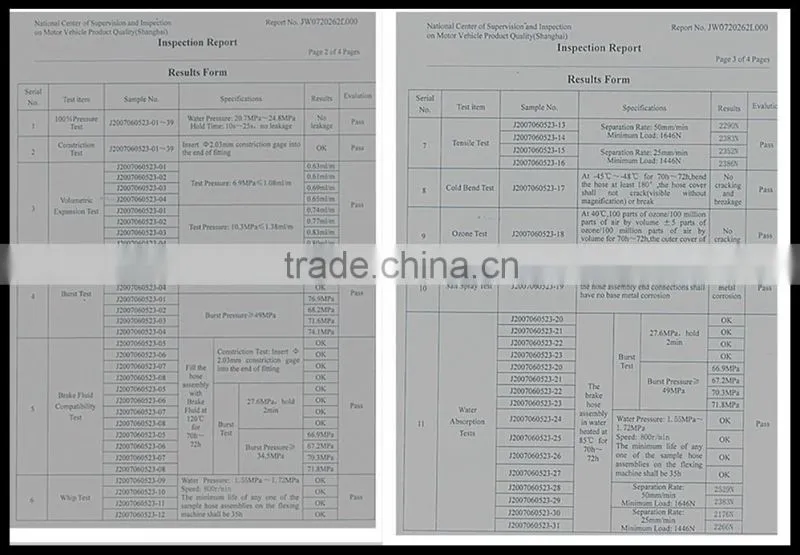

Certifications

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose

 1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose



Trade Shows

1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose1/8 Inch SAE J1401 DOT Hydraulic Brake Fluid Hose





FAQ

1.Q:Are you a factory or trading company?

A:We are manufacturer



2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.

All our clients, from home or abroad, are warmly welcome to visit us!



3.Q:How can I get some samples?
A: We are honored to offer you samples.



4.Q:How does your factory do regarding quality control?

A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
