Help CenterChinese Manufacturer SAE J1401 Hydraulic Brake Hose 1/8" HL Quality Choice
Related Products
-
1/8 Inch Dot SAE J1401 Hydraulic Brake HoseUS$ 0.79 - 0.88MOQ: 3000 Meters -
12.7mm Air Brake Hose SAE J1402 for Vehicle Air Brake SystemUS$ 0.8 - 1.35MOQ: 2000 Meters
-
1/2'' Rubber Air Brake Hose (SAE J1402) for Vehicle Air Brake System Quality ChoiceUS$ 0.8 - 1.35MOQ: 2000 Meters
-
SAE J1401 Hydraulic Brake Hose 1/8" hlNegotiableMOQ: 500 Meters
-
Dot Sae J1401 Brake Hose Assembly 281 611 775BNegotiableMOQ: 800 Pieces

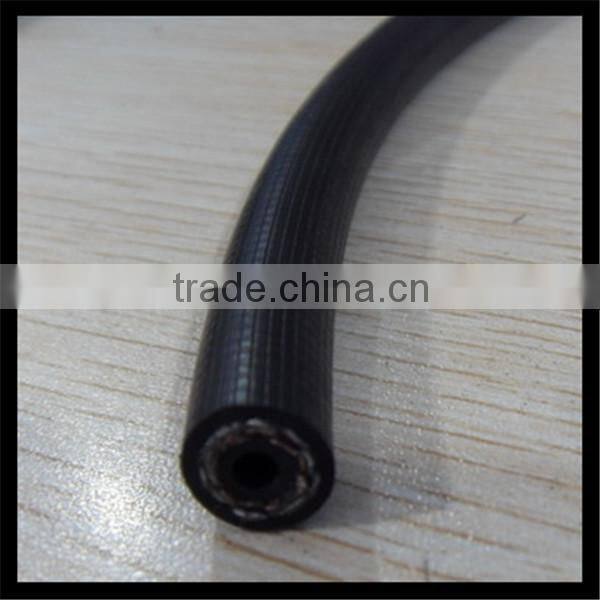

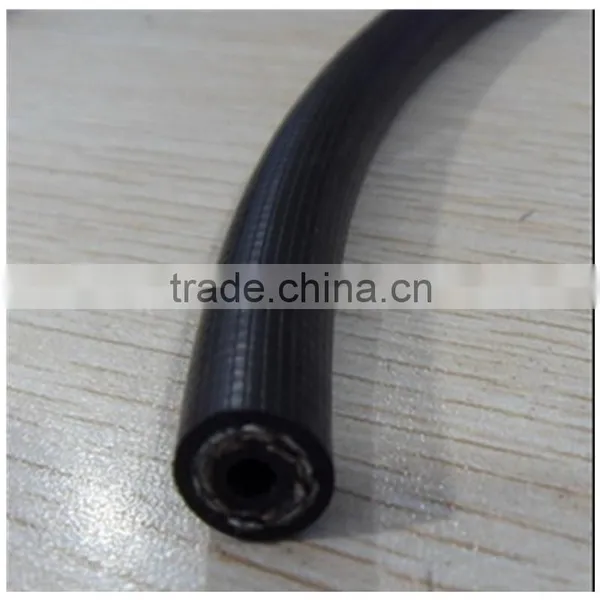

Hydraulic Brake Hose SAEJ1401
Structure: 1, Inner layer: NBR / EPDM
2, Intermediate reinforced layer: PVA / PET
3, Outer Layer: CR/ EPDM

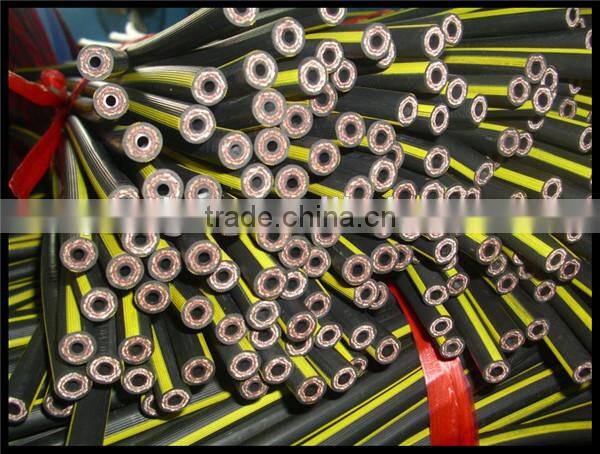

Appearance: Stripe Face
Standard: SAEJ1401
Working Temperature: -40C to +100C
Application: Used for automobile hydraulic brake hose system transfer pressure.
Property: high strength polyester thread weaving, flexibility, more content of explosion resistance, high tensile strength, low expansion.Hose ozone resistance, low temperature flexibility and high temperature resistant, good intermiscibility, excellent performance, braking effect is stable, safe and reliable.

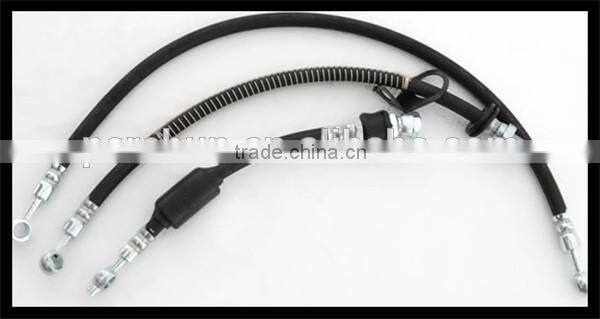

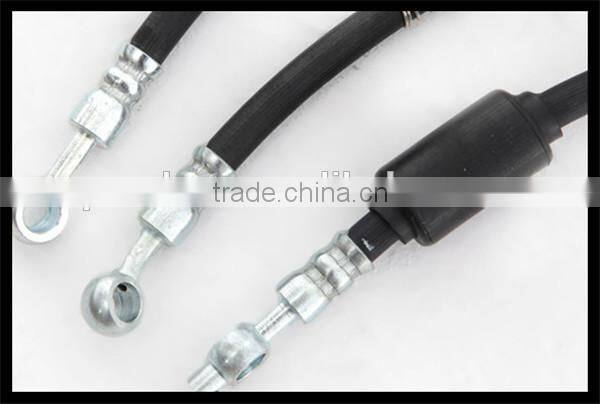

Hose Assembly can be supplied
| ID size(mm) OD size(mm) Wall (mm) Max. Expansion ml Min. Burst Pressure (Mpa) | |||||
| 3.2+-0.2 10.5+-0.3 3.65 <1.08 at 6.9mpa >49.03 | |||||
| 4.8+-0.2 13+-0.3 4.35 <1.81 at 6.9mpa >34.5 | |||||
| 6.3+-0.2 15+-0.3 3.75 <2.69 at 6.9mpa >34.5 |
1.Q:Are you a factory or trading company?
A:We are manufacturer
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?

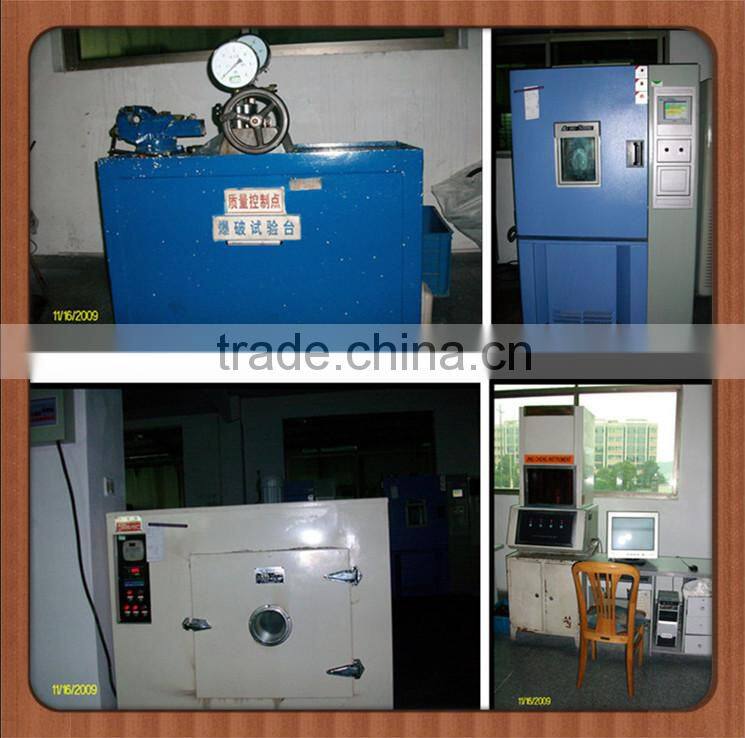

A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
