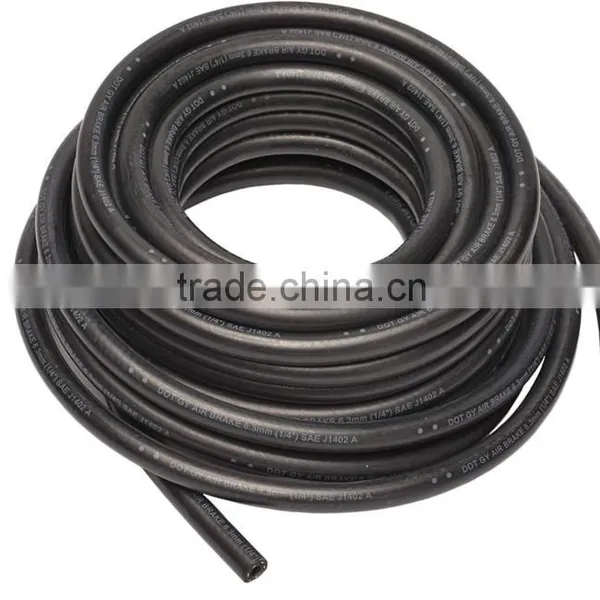

SAE J1402 DOT Flexible Rubber Brake Hose
- 100000 Meter / Meters per Month
- Ningbo or Shanghai port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | PASSION | Model Number: | 3/8" |
Product Description
Applicable standard: SAE J1402-2006, GB7128-86
Structure: Inner Tube: EPDM
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Bend radius: 10 times of proper diameter dimension
Application: Mainly used for vehicle air brake system. The application includes the flexible connection between frame and axle, tractor and trailer and between trailers, as well as unprotected air circuit with air pressure coming to 1.0 MPa when the air circuit is possibly to be dragged or bumped.
Applicable temperature: -40℃ - +100℃
Standard length: 50m, 100m.
Specification:
Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
HPR1 | 3/8" | 9.5 | 19 | 15 | 225 | 62 | 900 | 100 | 0.05 | 0.34 |
HPR2 | 1/2" | 12.7 | 22 | 15 | 225 | 62 | 900 | 100 | 0.08 | 0.48 |

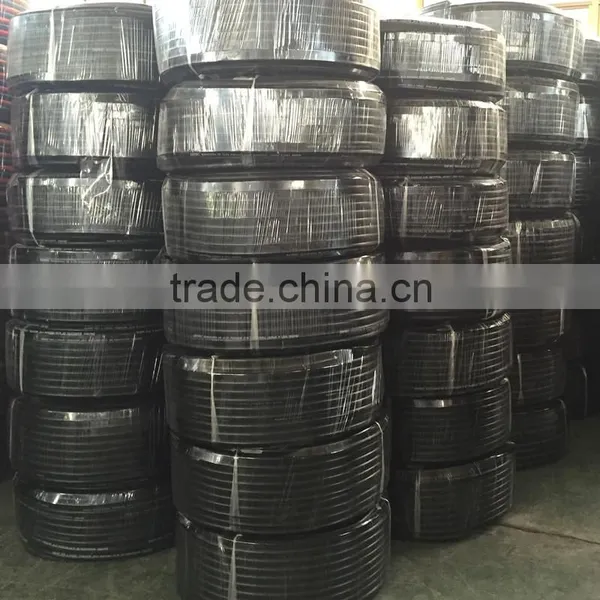

ID 3/8''x100m ( 800 rolls for a 20ft container)
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
