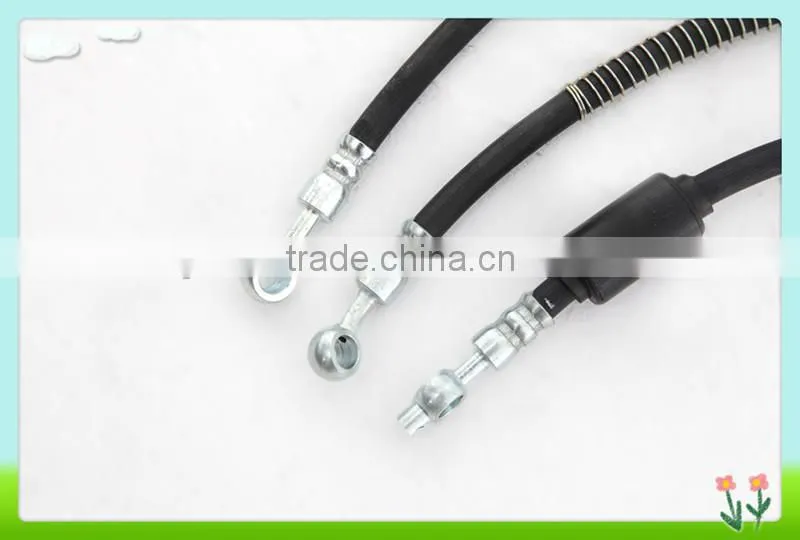

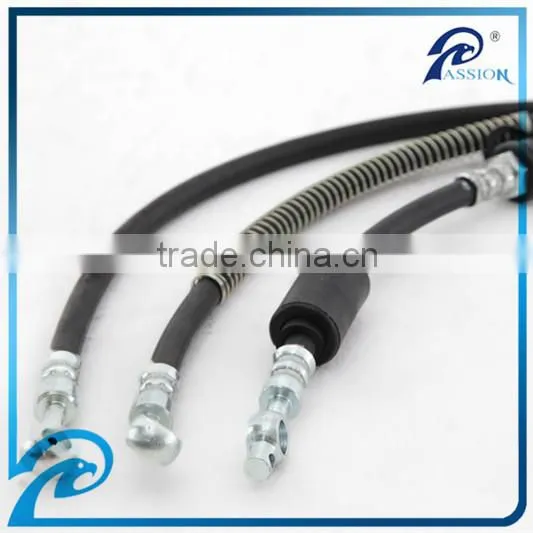

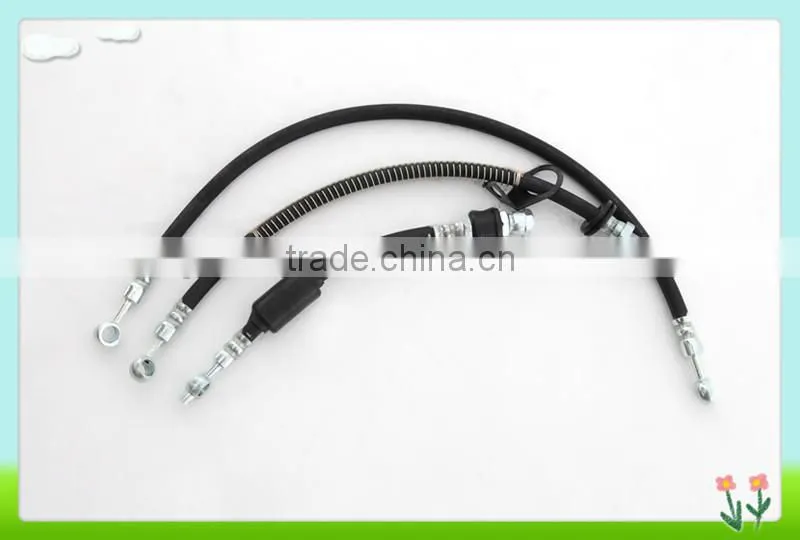

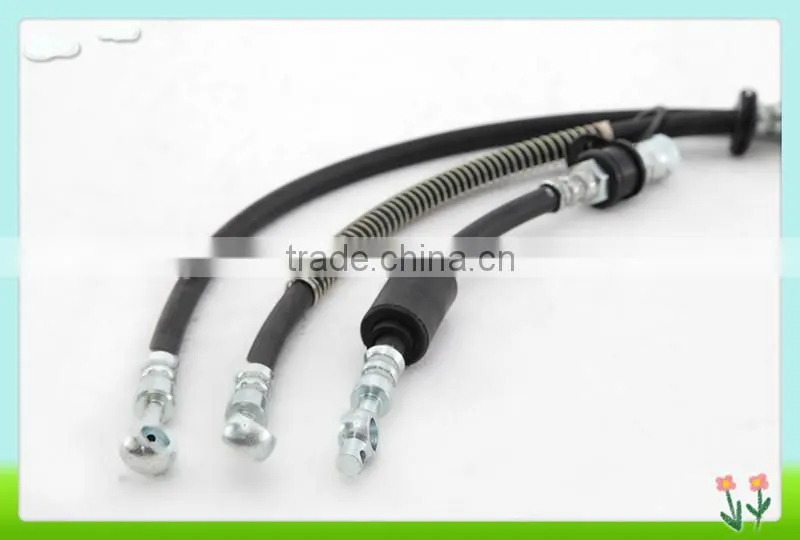

3/16" SAE J1401 Hydraulic Brake Hose for Automobile
Hydraulic Brake Hose
Standard: SAE J1401 GB16897-1997 MS263-49
Inner Tube: NBR/EPDM
Reinforcement: PET and PVA
Outer Tube: CR/EPDM
Temperature Range: -40℃~+100℃
Uses: Act as pressure transmission for auto hydraulic pressure brake system.
Features: The hoses are braided with high strength, manifold, polyester yards and have very good performances as the followings: good flexibility bursting resistance, high tensile strength, low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance and good compatibility with stable, safe and reliable braking effects.
Sizes and Performance Parameters Information:
Item Code |
Inside Diameter |
Outside Diameter |
Wall |
Wall Diff max. |
Expansion ml/m max |
Burst Press Min. |
||
inch |
mm |
mm |
mm |
mm |
6.9mpa |
10.3mpa |
mpa |
|
PRJ1401-1 |
1/8 |
3.2 +0.1 - 0.2 |
10.5 +0.3 -0.2 |
3.65 |
≤0.25 |
<1.08 |
<1.38 |
>49.03 |
PRJ1401-2 |
3/16 |
4.8±0.2 |
13±0.3 |
4.35 |
≤0.30 |
<1.81 |
<2.36 |
>34.5 |
PRJ1401-3 |
1/4 |
6.3±0.2 |
15±0.3 |
3.75 |
≤0.30 |
<2.69 |
<3.84 |
>34.5 |

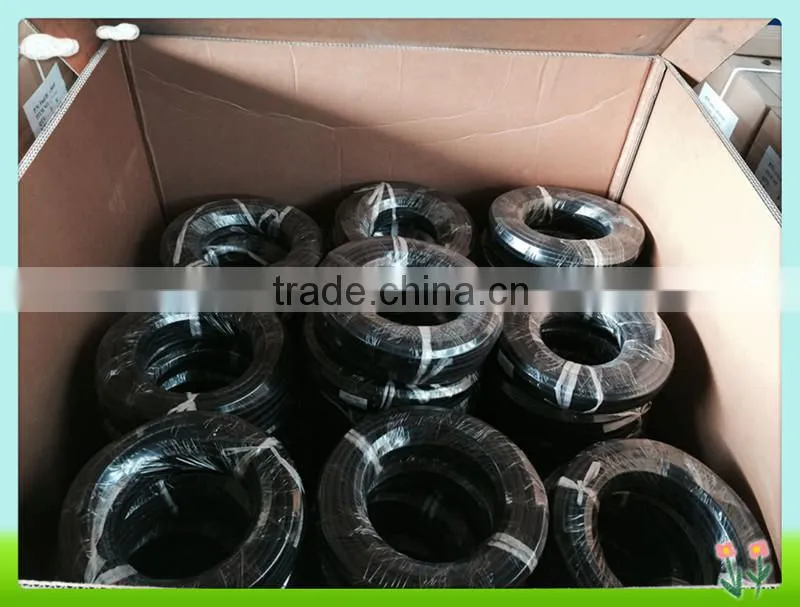

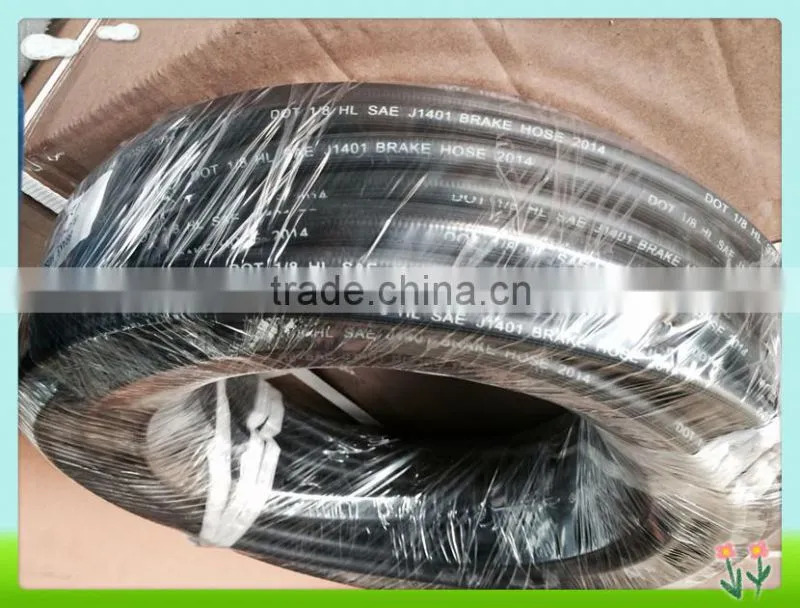

Packaging of J1401 Hydraulic Brake Hose:
About Us:
<passion>
High quality products, Low prices, Convenient payment procedure
We are a leading manufacturer specialized in designing and manufacturing various kinds of rubber hoses and hydraulic high pressure in China with experience more than 10 years, manufacturing in accordance ISO 9001: 2008, ISO / TS CE, 29001 and API Q1. We help our clients to develop special qualities and hydraulic rubber hose for their needs.

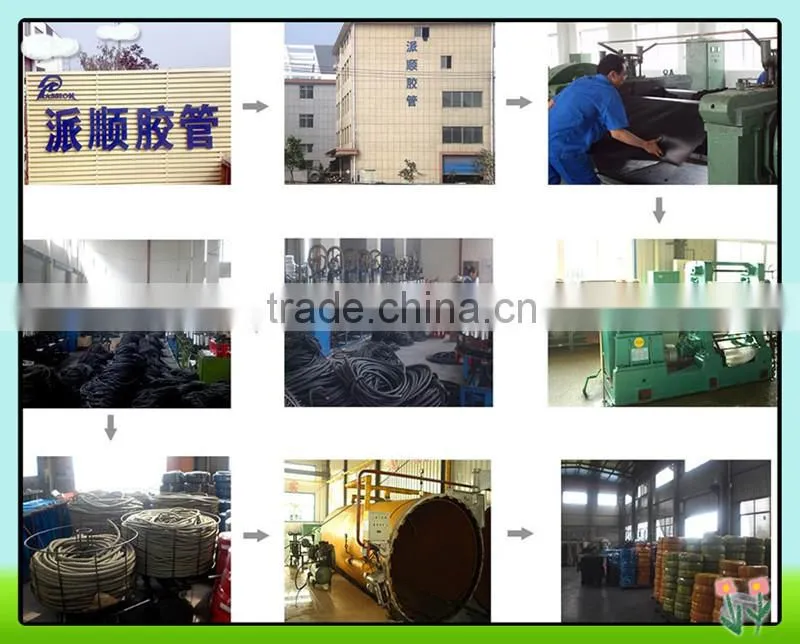

Factory of J1401 Hydraulic Brake Hose:
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we can offer OEM services.
Choosing us ------ choose the best
