Help Center5/16'' Fiber Braided SAE J1402 Flexible Rubber Brake Hose
Related Products
-
Sell Power Steering And Braking Rubber HoseUS$ 0.80 - 0.88MOQ: 5000 Meters -
3/16" SAE J1401 Hydraulic Brake Hose for AutomobileUS$ 0.74 - 1.35MOQ: 1000 Meters
-
SAE J1402 Flexible Air Brake Hose Assembly Exported to America Quality ChoiceUS$ 0.32 - 0.58MOQ: 1000 Meters
-
SAE J1402 Rubber Air Brake Hose With Factory Crimped FittingUS$ 0.32 - 0.58MOQ: 1000 Meters
-
SAE J1402 Straight Air Brake Hose 15' BlackUS$ 0.32 - 0.58MOQ: 1000 Meters

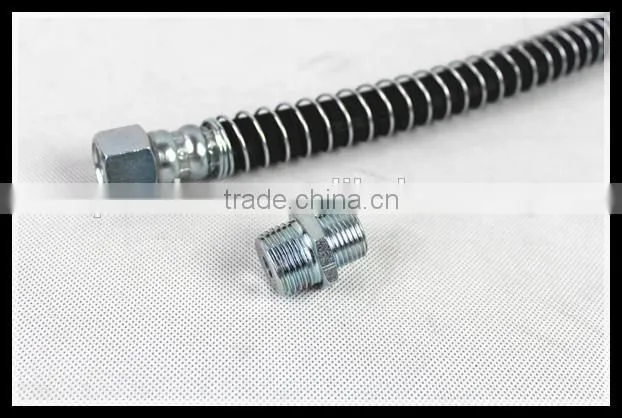

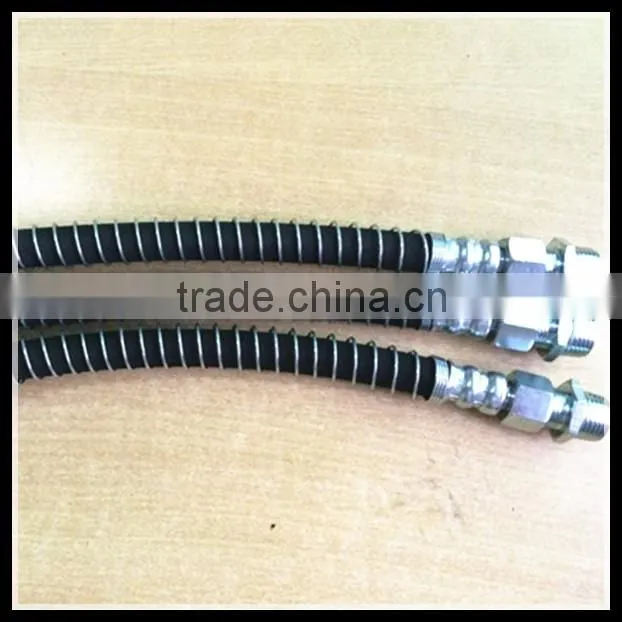

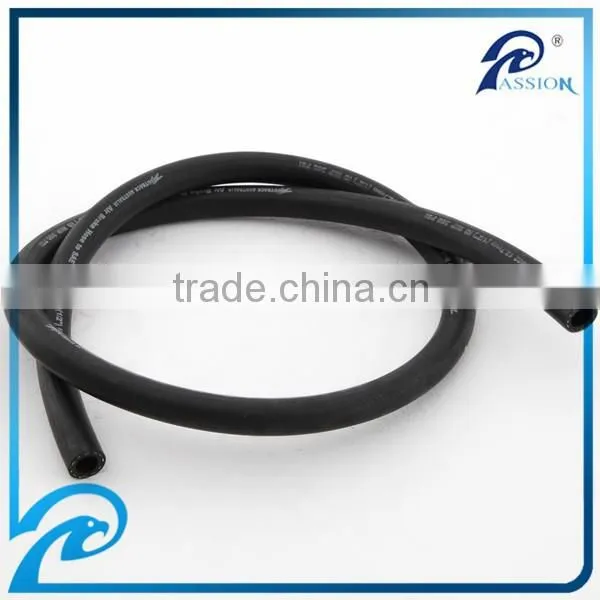

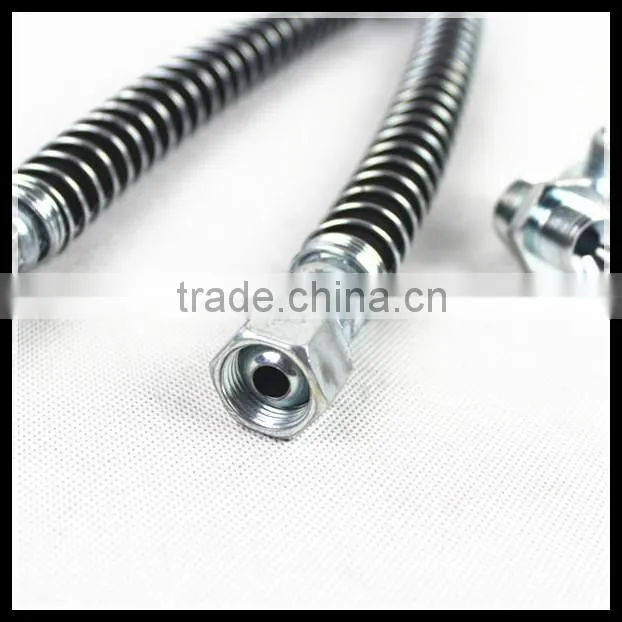

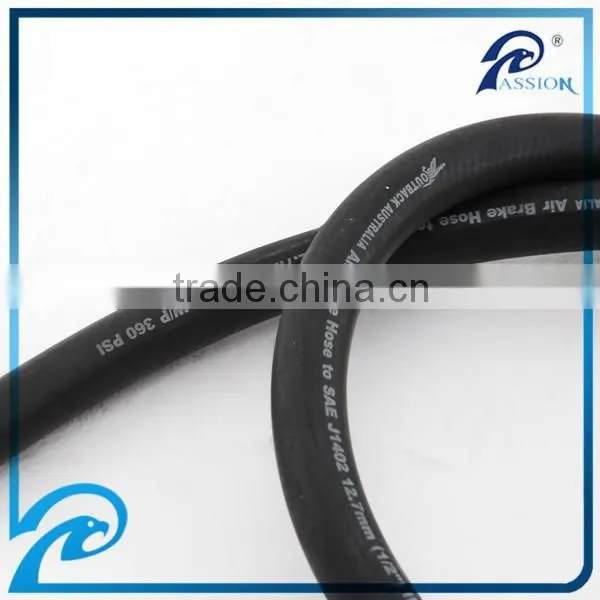

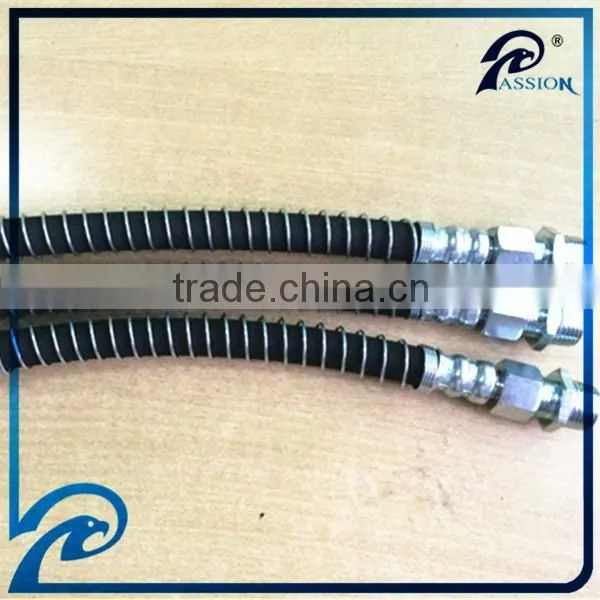

J1402 Hydraulic Rubber Brake Hose
Hose Construction
Inner Tube: Black, Smooth, NBR/SBR Rubber Compound.
Reinforcement: Synthetic textile yarns.
Cover: Black, smooth, abrasion, ageing
and weather-resistant CR rubber compound.
Applications:
Widely used in automotive air brake systems.
Temperature Range:
-40 °C (-40 °F) to + 93 °C (+200 °F).
Tolerances:
According to SAE J1402 – TABLE A
Technical Specifications:
|
Size
|
I.D. (inch) |
I.D. (mm) |
O.D (mm) |
Wall(mm) |
Wall Diff (mm) |
W.P. Max.Mpa |
B.P. Min Mpa |
5 |
3/16" |
5±0.2 |
14±0.3 |
3.50 |
<0.3 |
1.1 |
>12 |
6 |
1/4" |
6±0.2 |
15±0.4 |
4.50 |
<0.3 |
1.1 |
>12 |
8 |
5/16" |
8±0.2 |
15±0.3 |
3.50 |
<0.3 |
1.1 |
>12 |
10 |
3/8" |
10±0.3 |
17±0.4 |
3.75 |
<0.3 |
1.1 |
>12 |
13 |
1/2" |
13±0.3 |
23±0.4 |
3.50 |
<0.4 |
1.1 |
>12 |
14 |
9/16" |
14±0.3 |
23.5±0.4 |
3.80 |
<0.4 |
1.1 |
>12 |
16 |
5/8" |
16±0.3 |
24±0.4 |
4.00 |
<0.4 |
1.1 |
>12 |
We care what you care about:
The most suitable products for you.
The most effecctive communication.
A large powerful engineer team.
No worry about "time difference" every Wednesday.
Quick delivery time.
Offer the best service we can offer.
1) What is your payment term?
For small amount: By T/T, 30% deposit, 70% balance, total by USD currency; Western Union and MoneyGram is also available.
For big amount: By papal.
2) What is your delivery time?
Usually within 25 days after we have received the advanced payment.
3) What is your brand name?
Our brand name is Paishun Rubber, customers can also use theirown brand if they need.
4) What is your port of loading?
Our port of loading is NINGBO or SHANGHAI.
5) Can you produce according to the drawing?
Yes, we can.
6) Can you send samples?
Yes, we can send you samples, the samples are for free.
7) Why should I choose your company?
We believe long-term business based on the superior service and trust.
1. We will provide you with accurate, detailed Quotation.
2. We will offer you reliable shipping agent for reference.
3. The package will be stout based on your request.
5. The product will be delivered timely based on the lead-time.
Dear friends, please send your request for the product, we would like to quote for you. Thanks!
Alice J
Sales Supervisor
Tel: +86-571-81023091
Mobile: +86-15968806735
Skype: paishun_ocean
