Card PBX with 64 Exts for hotel WS824(9)H
Advanced Hybrid System : 4 Outside (CO) lines ;16-port Hybrid Extensions max. 8 Outside (CO) lines, 64-port Extensions
1.3S Call Managment Software.(Selection Item)By the function,system can monitor all of Co.Lines and Extension Status,also can monitor,program,revise and call charge account.
2.Built-in Caller ID for inner line(FSK);
3.Two mode Caller ID function(FSK and DTMF) for Outside Line.(Selection Item);
4.Can be connected with 4 Key Phone at most;
5.Call queuing;
6.Trunk nember integrateds;
7.Built-in Six Sections 78s Outgoing message(can be up to two routes);
8.Voice Extension number;
9.Automation Answer Mode and group ringing;
10.255 group accompany passwords;
11.IP economical routing can save call charge;
12.Eight-party conference call;
13.Multi-station setting,system can support 3 statopms at most;
14.Hot-line dialing;
15.Call Pick-up and forwarding.

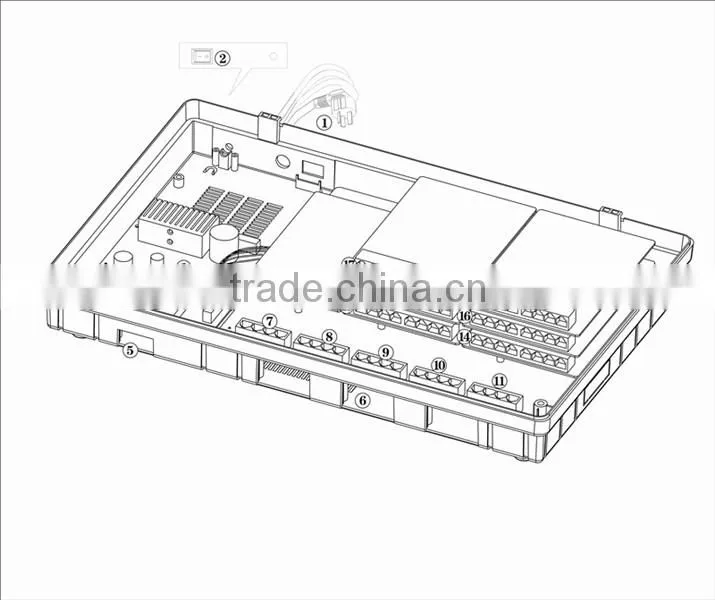

WS824(9)H structural
Remarks:
(1) Power Cable
(2)Power Switch
(3) Power Supply Board:P01 board and P02 board
(4) Cable between Power Supply Board and Mother Board
(5) Ground
(6)Outlet port
(7)Outer for CO1-4
(8)Outer for EXT001-004
(9)Outer for EXT005-008
(10)Outer for EXT009-012
(11) Outer for EXT013-016
(12) Inner for CO5-8
(17)Outer for EXT017-024
(15) Outer for EXT025-032
(13) Outer for EXT033-040
(18)Outer for EXT041-048
(16) Outer for EXT049-056
(14) Outer for EXT057-064
Specification
Power Specification
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 50W
Cross-talk attenuation: >70db
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m
Electrical specificaion
(1)Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
(2)Sound amplification output:
Output impedance:600Ω
Output audio level:025Vpp-0.4Vpp
(3)Battery backup supply:24VDC/7Ah
Installation
Station connection
Key phone
Key phone
3S software
