2015 Shenzhen Factory 48 Exts Telephone Switch Pabx

Model:WS824(10)A

WS824(10)A is an ideal telephone system for small offices and home offices. It is very easy to install and use. It has all the standard features comparable to those expensive PBX systems in the market. It works with your current analog phones and you do not need to spend extra money to buy proprietary telephones to work with the PBX.

Installation is simple, no special tools, test equipment or technical skills is required. The unit has been programmed to  work automatically out of the box.

  Main Feature

 1.Outgoing message(3 sections 30S)

2.Hot-call dialing

3.IP Econnomical Routing.

4.Accompany password.

5.Double mode switch.

6.Interrupt,disconnect a call

7.Do-not-Disturb.

8.Call forward.

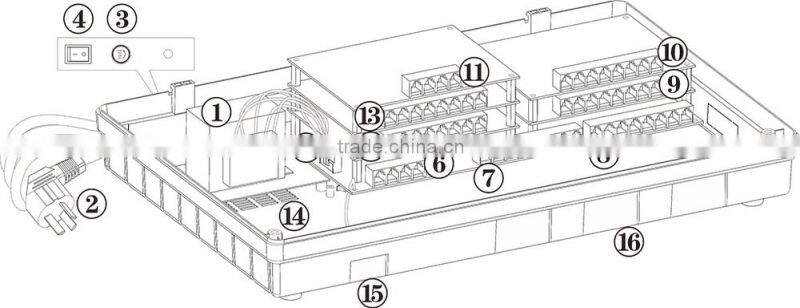

Installation

(1) Power supply voltage: 110VAC or 220 VAC, 50/60 Hz;

(2) Power line

(3) Protector tube (0.5A/250V);

(4) Power Switch;

(5) Single-end power line;

(6) Ports for Co. line: Co. 1---Co.4;

(7) Port for Ext. line: Ext01-Ext08;

(8) Port for Ext. line: Ext09-Ext16;

(9) The first extensional extension board :Ext17-Ext24;

(10)  The second extensional extension board: Ext25-Ext32;

(11)  The extensional Co. line board: Co.5---Co.8;

(12)  The third extensional extension board:Ext33-Ext40;

(13)  The forth extensional extension board:Ext41-48;

(14)  The cover fixes screw hole, one for each side;

(15)  Ground terminal;

(16)  Outlet line, three in total.

Key phone

  Power Supply
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz

  Environmental Limits
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation

CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)

Outgoing call: DTMF
Cross lose: > 70dBII

Special Key Phone
