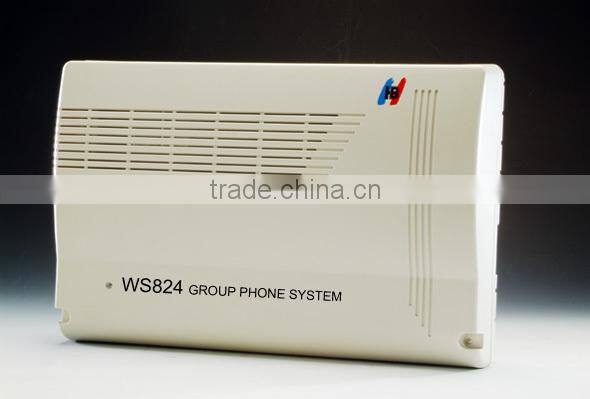

WS824 (9)H, series group phone systems is the advanced, newly-designed, high-reliability digital system, with all traditional and new functions.

The machines has the expansion boards showed as the table:

Remariks:

1.WS824(9)H-400L board,can connect with 4 port expansion Co lines:WS824(9)H-008C board, each one can connect with 8 normal phone, Installed from down to up.

2.Can be connect with 4 key phone at most.

3. The original extension number starting with 8,such as 001-8001,002-8002……,062-8064.

4.Four road Call to Exts When power off.,CO1 l to EXT005,CO2 to EXT006, CO3 to EXT007, CO4 to EXT008.

5.Can support WS824(9)H-P02 back up battery board(Option)

1.3S Call Managment Software.(Selection Item)By the function,system can monitor all of Co.Lines and Extension Status,also can monitor,program,revise and call charge account.

2.Built-in Caller ID for inner line(FSK);

3.Two mode Caller ID function(FSK and DTMF) for Outside Line.(Selection Item);

4.Can be connected with 12 Key Phone at most;

5.Call queuing;

6.Trunk nember integrateds;

7.Built-in Six Sections 78s Outgoing message(can be up to two routes);

8.Voice Extension number;

9.Automation Answer Mode and group ringing;

10.255 group accompany passwords;

11.IP economical routing can save call charge;

12.Eight-party conference call;

13.Multi-station setting,system can support 3 statopms at most;

14.Hot-line dialing;

15.Call Pick-up and forwarding.

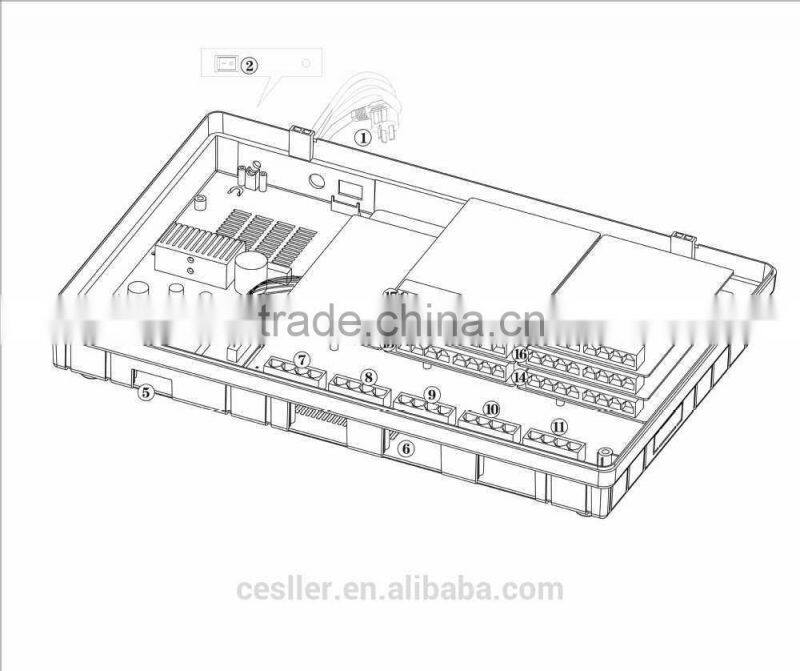

WS824(9)H structural

Remarks:

(1) Power Cable

(2)Power Switch

(3) Power Supply Board:P01 board and P02 board

(4) Cable between Power Supply Board and Mother Board

(5) Ground

(6)Outlet port

(7)Outer for CO1-4

(8)Outer for EXT001-004

(9)Outer for EXT005-008

(10)Outer for EXT009-012

(11) Outer for EXT013-016

(12) Inner for CO5-8

(17)Outer for EXT017-024

(15) Outer for EXT025-032

(13) Outer for EXT033-040

(18)Outer for EXT041-048

(16) Outer for EXT049-056

(14) Outer for EXT057-064

Specification

Power Specification

Power supply voltage: 110VAC or 220 VAC,50/60 Hz

Maximum power consumption: 50W

Cross-talk attenuation: >70db

Operating temperatures: 0°C to 45°C (32°F to 113°F)

Operating humidity: 10% to 95% without condensation

Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)

Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)

Connect with PC, connecting length:<30m

(1)Source of music:

Input impedance:600Ω

Input audio level:025Vpp-1Vpp

(2)Sound amplification output:

Output impedance:600Ω

Output audio level:025Vpp-0.4Vpp

(3)Battery backup supply:24VDC/7Ah

Installation

Station connection

Key phone

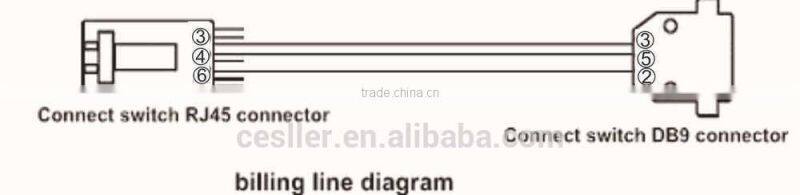

Connect with RJ45 turn DB9 billing port,the default is 3M connecting cable,extend to pressure cable:
