Specifications
144 port GSM gateway support SIP/H323 with FXS/fxNew&Original
RJ11 Port for VoIP FX
100% tested

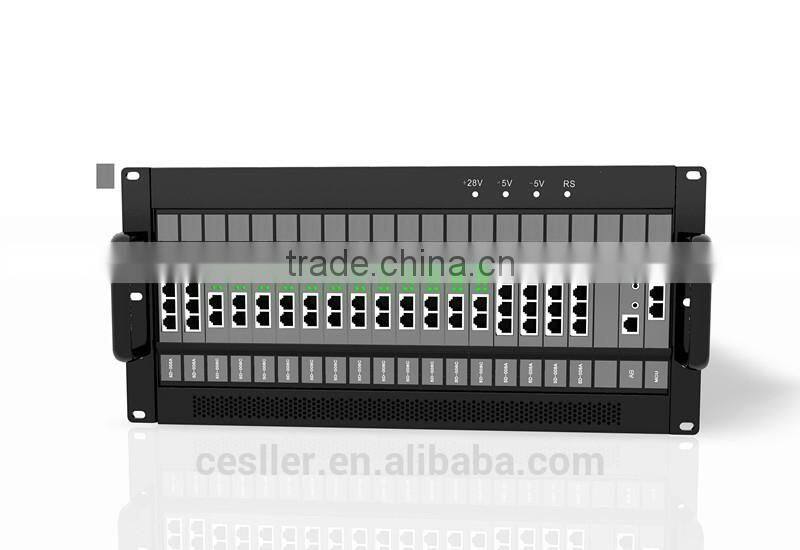

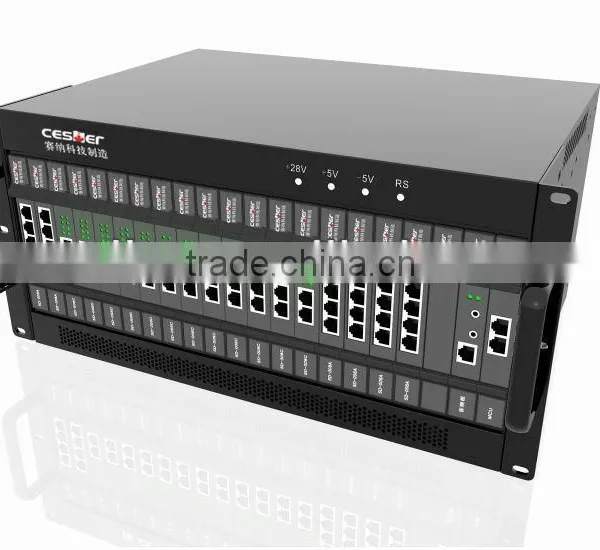

144 port GSM gateway support SIP/H323 with FXS/fx
System TFTP upgrade
Data backup and restore
WEB remote interface management
Multiple voice codec format
300 IP extension Account
30 TDM-IP concurrent access
40 IP platform concurrent calls
IP voice calls bypass
IP extension account, IP trunking support SIP Type

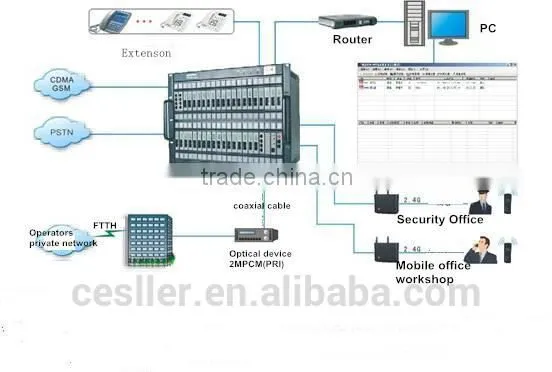

Flexible networking
DID number across the equipment through the call
Resonance
IP call extension account level limite
Relay equipment sharing
Pass through the number
General IP phone support
Open standard interface protocols
High system integration
1)Professionaltelephone recording system(Optional)
2)Professional IVR voice navigation system(Optional)
3)Intelligent economy routing
4)Professional Forward to mobile phone function
5)Built-in Six Sections 75S intelligent computer operator
Specification Parameter
Model |
NSN9000Si |
NSN9000Mi |
Size |
435*265*140mm |
435*311*368mm |
FXS |
144 |
312 |
FXS(PSTN) |
32 |
64 |
E1 |
1 |
4 |
FXS+FXO |
144 |
312 |
E1+FXS |
1E1+136 |
4E1+280 |
CDMA/GSM |
YES |
YES |
Number of IP user |
300 |
300 |
Number of IP concurrent |
40 |
40 |
Concurrent IP and TDM channel |
4+26(optional) |
4+26(optional) |
Number of SIP trunk |
30 |
30 |
LANPort |
1 |
1 |
SIP Protocol |
YES |
YES |
Record(TDM) |
Optional |
Optional |
Technical Specification
Model |
NSN9000Si |
NSN9000Mi |
AC input |
110VAC/220VA±10%/50Hz-60Hz |
110VAC/220VA±10%/50Hz-60Hz |
Internal feeding voltag |
+48VDC/30mA |
+30VDC/25mA |
Internal ringing voltage |
75VAC/25Hz |
75VAC/25Hz |
Backup battery voltage |
+24VDC |
+24VDC |
Exts line port voltage |
<60VDC |
<60VDC |
Exts line port ringing voltage |
>35VAC/25Hz/>35VAC/50Hz |
>35VAC/25Hz/>35VAC/50Hz |
System power voltage |
85W |
150W |
Line impedance |
600Ω |
600Ω |
Input level |
250MV, max 1V RMS |
250MV, max 1V RMS |
Exchange mode |
TDM+IP |
TDM-IP |
Enviroment temperature |
0-45℃(32-113℉),25±5°Best |
0-45℃(32-113℉),25±5°Best |
Enviroment humidity |
10%-95% noncondensing |
10%-95% noncondensing |
Exts lines with Caller ID display |
FSK |
FSK |
Co lines with Caller ID display |
DTMF/FSK |
DTMF/FSK |
Detection sensitivity |
01-33db(nosie<-3-db) |
01-33db(nosie<-3-db) |
Exts failure time effectively |
80ms-800ms |
80ms-800ms |
Dial tone |
||
Busy tone |
||
Invalid sound |
Single frequency 440Hz,0.25s open,0.25s break, Cycle 0.5s |
|
Ring-back tone |
Single frequency 440Hz,1s open,4s break, Cycle 5s |
|
4 core key phone |
<100m(0.4@ twisted two pair,impedance<22.5Ω
|
|
2 core key phone |
<1500m(0.5@ twisted two pair,impedance<200Ω
|
|
Common phone |
<1000m(0.4@ twisted two pair,impedance<225Ω |
Billing wires |
<30M |

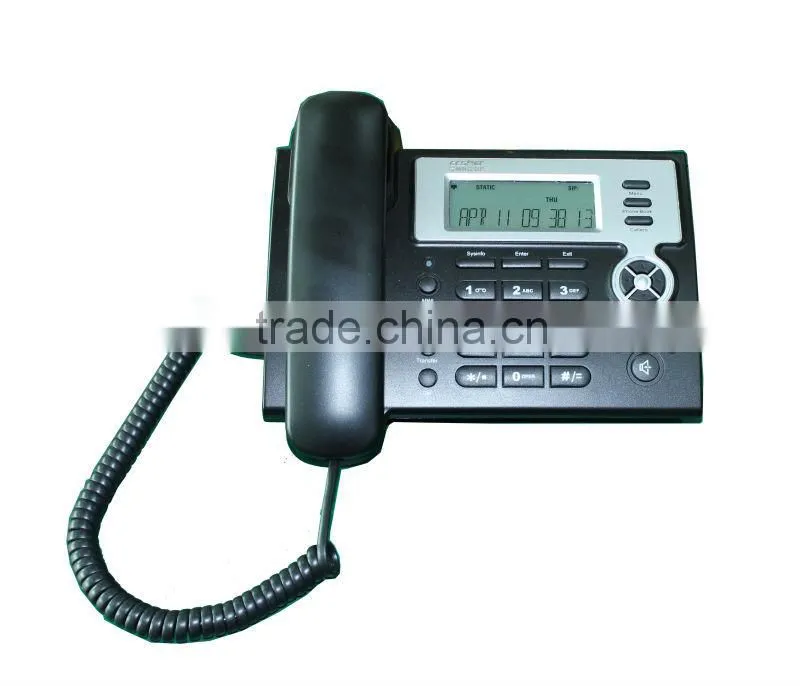

SIP Phone

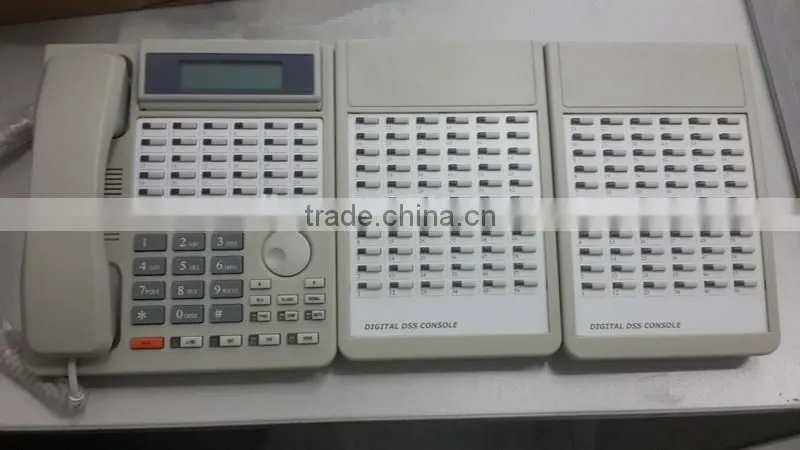

Key Phone
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
