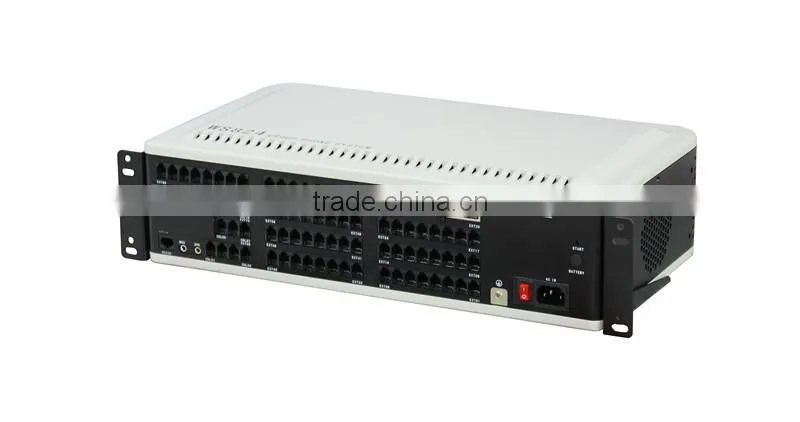

Hotel IP PBX Switch ,100 ip Extension

Hotel IP PBX Switch ,100 ip Extension photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CE or OEM
Model Number:
NSN9000Mi PRI to SIP VoIP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name CE or OEM
Model Number NSN9000Mi PRI to SIP VoIP

Specifications

Hotel IP PBX Switch ,100 ip Extension
SIP trunks for least cost calls
100 IP users
Billing,MOIVR,Record


 Hotel IP PBX Switch ,100 ip Extension



 Hotel IP PBX Switch ,100 ip Extension





Detail Picture



WS824(9)i mother boad





WS824(9)i ip board for hotel



Note:Connect the mainboard EXPCN1 slot or extension of the slots on the board expansion slots (50P)





WS824(9)i-008C exts board





WS824(9)i-008A exts  board





Note:1-4 extension port can connect with key phone,   008A board only can  connect the Exts lines slot COPCN1  1 and 2  of  mother board





WS824(9)i-300L Co lines board







Note:300L board only can connect the  Co lines slot COPCN1  1 and 2  of  mother board







WS824(9)i-P02 power board(optional)





Advantages





Smooth over, compatible with traditional and future



Inherited the traditional digital switch technology, Realization of the digital switching exchange to smooth over IP, compatible with both traditional digital switching, IP switching and rich terminal interface, allowing users to continue to use that traditional digital switching functions, while experience using advanced IP switching technology.



Remote calls zero cost



Through IP technology, remote IP phones, computer softphone, soft phone and smart phone company headquarters zero cost of calls between extensions.



Through the IP network to achieve the company's headquarters system with dispersed between the distribution system free fast extension call.



WIFI mobile and wired network combined



Unique IP extension and desktop extension bundled with vibration function, you can turn your smartphone into a mobile extension.whether you're in the company within the scope of any place, or at home or a business trip with WIFI or 3G environment movement, any person whether it is your customers, or other employees call your desktop extension, your phone IP extension will ring together. Your mobile phone has become a truly mobile IP extension.



You can also use a special WIFI cordless handset as an IP extension. So by the smart phone, WIFI sub-phone into WIFI mobile communication network, and the wired desktop extension, wired IP phones posed fixed wireline communications network will seamlessly together, to truly improve the communication efficiency of enterprises.







Product Description

System TFTP upgrade

Data backup and restore

WEB remote interface management

Multiple voice codec format

300 IP extension Account

30 TDM-IP concurrent access

40 IP platform concurrent calls

IP voice calls bypass

IP extension account, IP trunking support SIP Type

Flexible networking

DID number across the equipment through the call

Resonance

IP call extension account level limite

Relay equipment sharing

Pass through the number

General IP phone support

Open standard interface protocols

High system integration



Specification Parameter





                     Size                         430*240*124mm
Weight3kgs
FXS(PSTN)4/10
FXO+FXS4/88 or 10/72
CDMA/GSMOptional
IP user100
IP concurrent20

IP and Traditional voice concurrent channel

4
SIP trunk9
LAN Port1
SIP ProtocolYES
                       Record                       Optional





Power Specification


Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 65W

Operating temperatures: 0°C to 45°C (32°F to 113°F) ,26±5°c for best
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m


(1)Source of music:
Input impedance:600Ω

Input audio level:025Vpp-1Vpp
Output impedance:600Ω
(2)Battery backup supply:24VDC/76Ah




installation drawing





 SIP Phone



Hotel IP PBX Switch ,100 ip Extension





Special Key Phone



 Hotel IP PBX Switch ,100 ip Extension









Company Information





Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.

Hotel IP PBX Switch ,100 ip ExtensionHotel IP PBX Switch ,100 ip ExtensionHotel IP PBX Switch ,100 ip Extension





Application as follow show



Hotel IP PBX Switch ,100 ip Extension
