Specifications
300 ip extension hotel voip pbx systemSupport ISDN PRI signaling and SIP protocol
T.38 fax realy
SIP to PRI converter
Model:NSN9000Si
System TFTP upgrade
Data backup and restore
WEB remote interface management
Multiple voice codec format
300 IP extension Account
30 TDM-IP concurrent access
40 IP platform concurrent calls
IP voice calls bypass
IP extension account, IP trunking support SIP Type

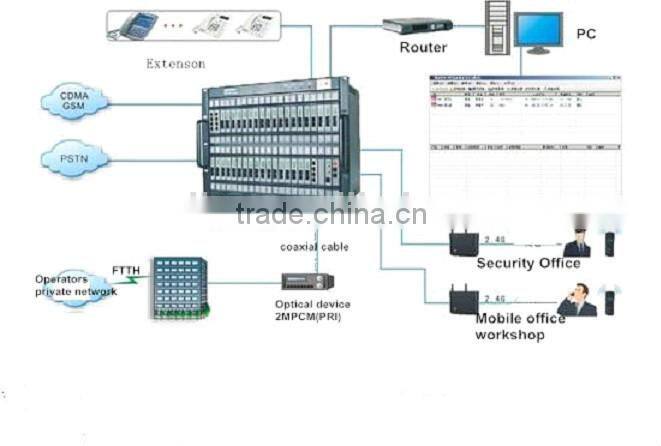

Flexible networking
DID number across the equipment through the call
Resonance
IP call extension account level limite
Relay equipment sharing
Pass through the number
General IP phone support
Open standard interface protocols
High system integration
Special Function
Professionaltelephone recording system(Optional)

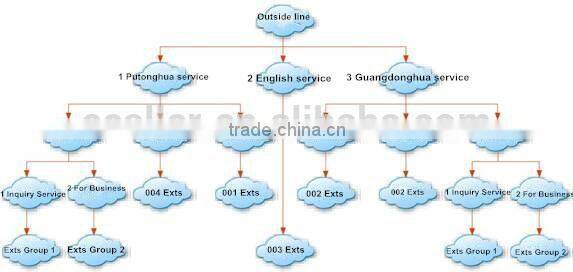

Professional IVR voice navigation system(Optional)

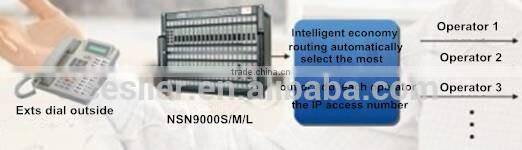

Intelligent economy routing
NSN9000L carriers can provide a variety of trunk interfaces to meet the different operators access. According to user's routing, and call a automatically select the most economical operators, so as to save money for your company.
Specification Parameter
Model | NSN9000Si | NSN9000Mi |
Size | 435*265*140mm | 435*311*368mm |
FXS | 144 | 312 |
FXS(PSTN) | 32 | 64 |
E1 | 1 | 4 |
FXS+FXO | 144 | 312 |
E1+FXS | 1E1+136 | 4E1+280 |
CDMA/GSM | YES | YES |
Number of IP user | 300 | 300 |
Number of IP concurrent | 40 | 40 |
Concurrent IP and TDM channel | 4+26(optional) | 4+26(optional) |
Number of SIP trunk | 30 | 30 |
LANPort | 1 | 1 |
SIP Protocol | YES | YES |
Record(TDM) | Optional | Optional |
Technical Specification
Model | NSN9000Si | NSN9000Mi |
AC input | 110VAC/220VA±10%/50Hz-60Hz | 110VAC/220VA±10%/50Hz-60Hz |
Internal feeding voltag | +48VDC/30mA | +30VDC/25mA |
Internal ringing voltage | 75VAC/25Hz | 75VAC/25Hz |
Backup battery voltage | +24VDC | +24VDC |
Exts line port voltage | <60VDC | <60VDC |
Exts line port ringing voltage | >35VAC/25Hz/>35VAC/50Hz | >35VAC/25Hz/>35VAC/50Hz |
System power voltage | 85W | 150W |
Line impedance | 600Ω | 600Ω |
Input level | 250MV, max 1V RMS | 250MV, max 1V RMS |
Exchange mode | TDM+IP | TDM-IP |
Enviroment temperature | 0-45℃(32-113℉),25±5°Best | 0-45℃(32-113℉),25±5°Best |
Enviroment humidity | 10%-95% noncondensing | 10%-95% noncondensing |
Exts lines with Caller ID display |
FSK |
FSK |
Co lines with Caller ID display | DTMF/FSK | DTMF/FSK |
Detection sensitivity | 01-33db(nosie<-3-db) | 01-33db(nosie<-3-db) |
Exts failure time effectively | 80ms-800ms | 80ms-800ms |
Dial tone | ||
Busy tone | ||
Invalid sound | Single frequency 440Hz,0.25s open,0.25s break, Cycle 0.5s | |
Ring-back tone | Single frequency 440Hz,1s open,4s break, Cycle 5s | |
4 core key phone | <100m(0.4@ twisted two pair,impedance<22.5Ω
| |
2 core key phone | <1500m(0.5@ twisted two pair,impedance<200Ω
| |
Common phone | <1000m(0.4@ twisted two pair,impedance<225Ω
|
Billing wires | <30M |
SIP Phone
Special Key Phone
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
