12t hydraulic loading dock ramps for sale
Mobile Hydraulic Dock Ramp is special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
1. Applications and advantages:
1. Mobile dock ramp is suit for: often material handling, warehouse, wharf, logistics center working place, forklift work, loading and unloading goods from container or truck.
2. The ramp can be operated by single person easily, in this way saving people work and promoting work efficiency.
3. Manual power or electricity power for your choice.
4. The regular model of this ramp is: width-2.08m, length-11m, adjusting height range-0.9m to 1.8m. And it also can be designed and produced according to customers' requirements.
5. Exclusive design of triangle structure of guardrail is more stable and can uniform stress.

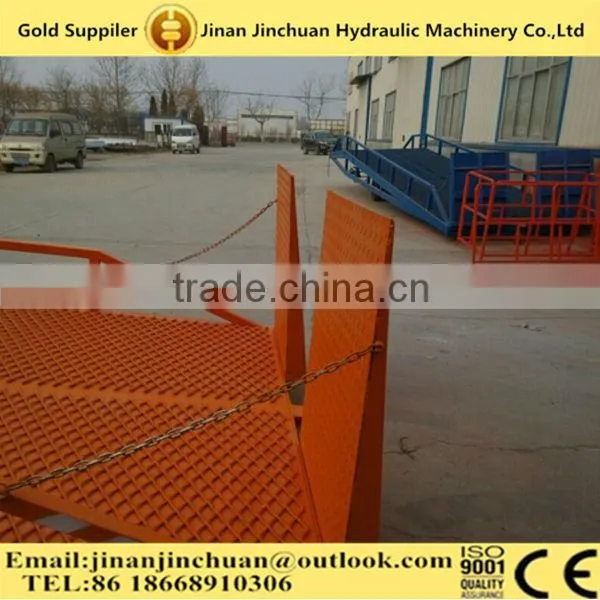

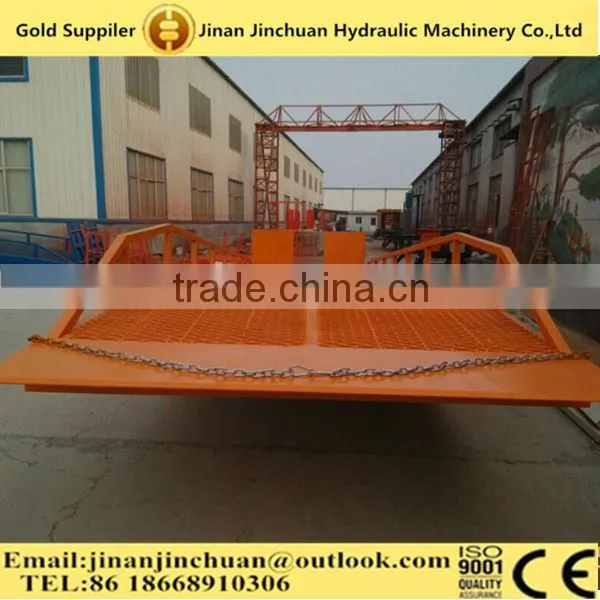

6. The chain can help to maintain stable when equipment is under operation.

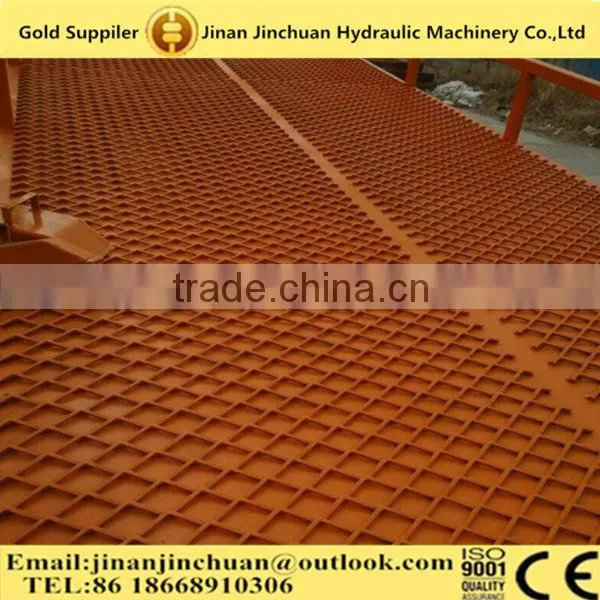

7. Both forklift suspensive board and floor are made of antiskid plate.
8. ISO/CE certified
Specifications of 12t load capacity dock ramp
1. Overall size: 12000mm*2010mm
2. Body: 7500mm*2500mm
3. Forklift suspensive board: 2500mm*2000mm
4. Leading board: 500mm* 600mm
5. Junction: 400mm*2000mm
6. Capacity: 12 000kg
7. Moving model: pulled
8. Adjusting: manual
9. Elevations: ≤13o
10. Self weight: 3100kg

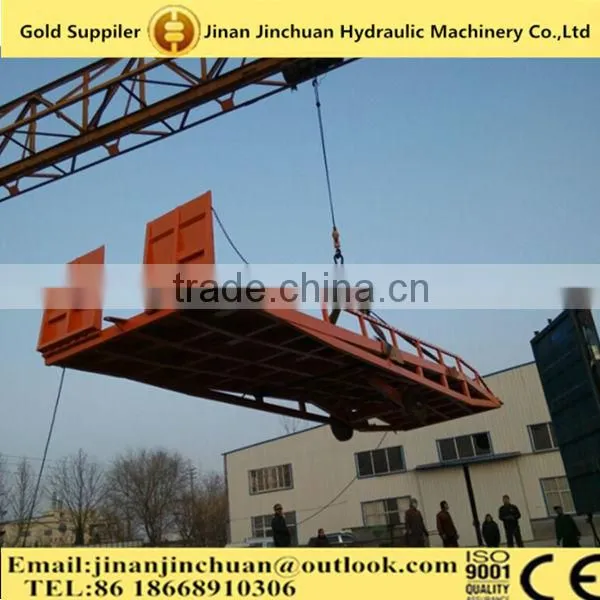

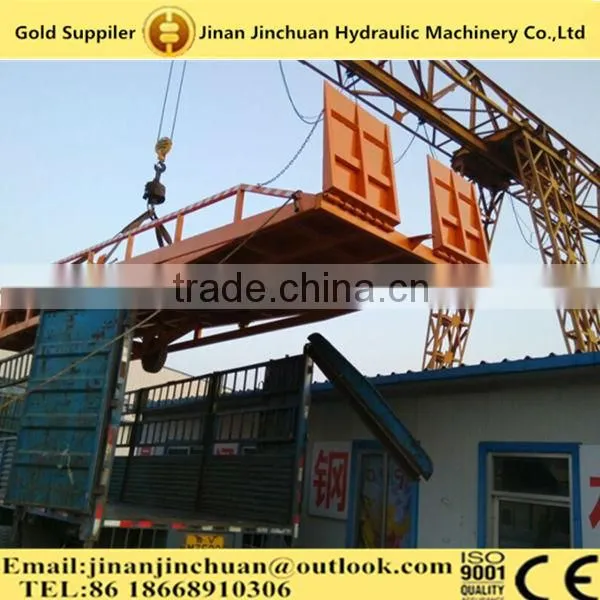

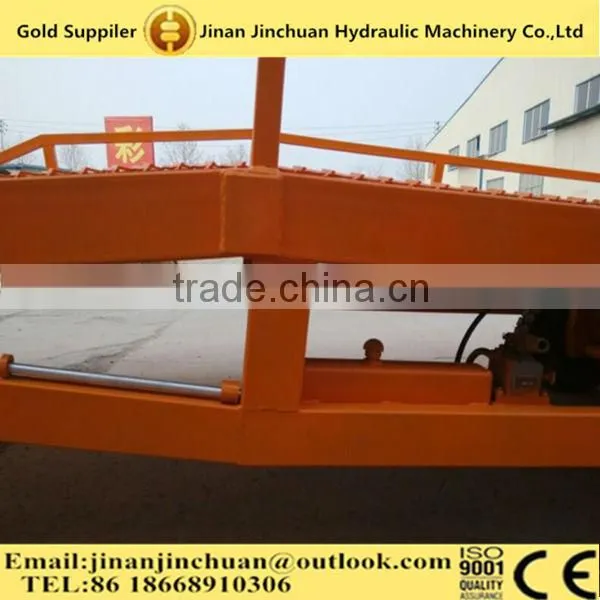

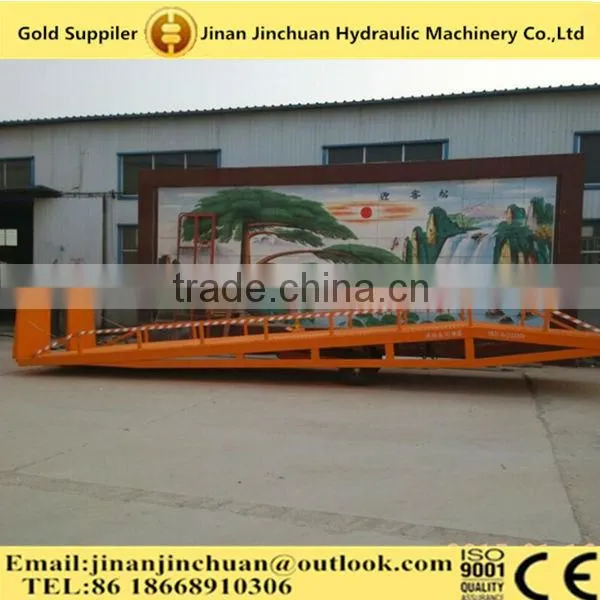

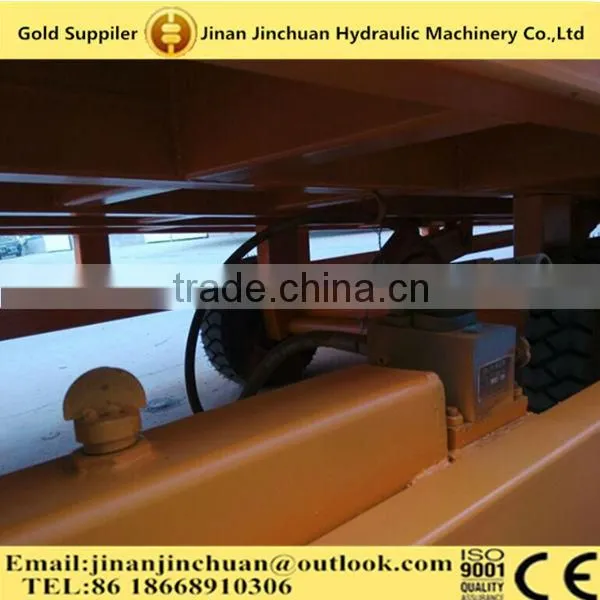

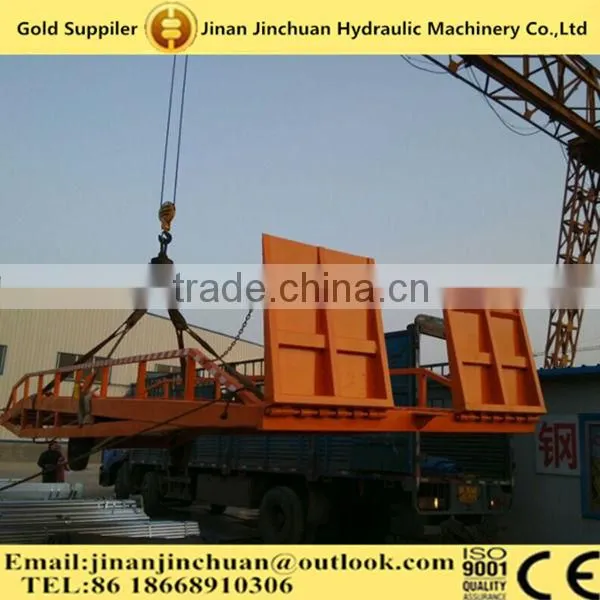

Product pic and parts:
2. Standard model list for 5-15ton load:
| MDR series | Load(T) | Working height(m) | Working grade | Dimensions(m) | Driving force |
| DCQY-5 | 5 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 |
Manual or electric drive |
| DCQY -6 | 6 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 | |
| DCQY -8 | 8 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 | |
| DCQY -10 | 10 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 | |
| DCQY -12 | 12 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 | |
| DCQY -15 | 15 | 0.9 ~ 1.8 | ≤13° | 11*2.08*1.3 |
3. Safety Precaution:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
Mobile dock ramp for forklift:
