19VATC Coaxial Cable
US$ 0.1 - 1
MOQ: 5 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHAUNGYUAN/OEM
Model Number:
19PATC
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
CHAUNGYUAN/OEM
Model Number
19PATC
Type
Coaxial
Number of Conductors
1
19PATC

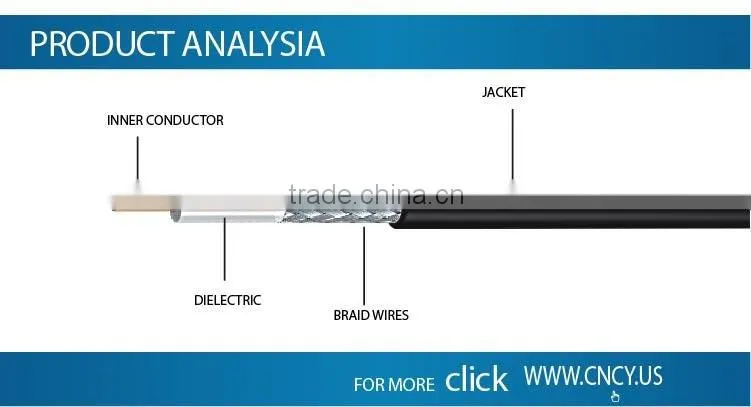

1) Construction | ||
Center Conductor: |
1.02±0.01mm CU/CCS |
|
Dielectric: |
4.7±0.1mmFoam PE |
|
Shield: |
Al Foil |
|
Braid Coverage: |
40%-95% Al-Mg |
|
Jacket: |
6.70±0.1mm PE |
|
UL: |
CMX, CM, CATV, CL2 |
|
Jelly/APD |
Per Customer’ Special Requirement |
|
2) Characteristics | ||
Sparker Test: |
4000VAC |
|
Impedance: |
75±3 Ohm |
|
Capacitance: |
50±3pF/m |
|
Velocity of Propagation: |
83% |
|
Return Loss: |
20dB min (5-1000MHz) |
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
5 |
0.58 |
1.90 |
55 |
1.60 |
5.25 |
187 |
2.85 |
9.35 |
300 |
3.55 |
11.64 |
450 |
4.40 |
14.43 |
600 |
5.10 |
16.73 |
750 |
5.65 |
18.54 |
865 |
6.10 |
20.01 |
1000 |
6.55 |
21.49 |
