high quality antenna cable, rg58 cable antenna,rg58 coaxial cable

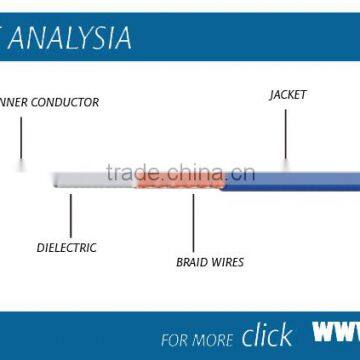

1) Construction | ||
Center Conductor: | 19*0.18±0.01mm TC | |
Dielectric: | 2.95±0.05mmSolid PE | |
Shield: |
| |
Braid Coverage: | 45%-90%TC | |
Jacket: | 5.08mm PVC/PE | |
Jelly/APD | Per Customer’ Special Requirement | |
2) Characteristics | ||
Sparker Test: | 3000VAC | |
Impedance: | 50±2 Ohm | |
Capacitance: | 66±3pF/m | |
Velocity of Propagation: | 83% | |
Return Loss: | 20dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
30 | 1.90 | 6.30 |
50 | 2.46 | 8.10 |
150 | 4.30 | 14.10 |
220 | 5.20 | 17.10 |
450 | 7.50 | 24.60 |
900 | 10.70 | 35.00 |
1500 | 13.40 | 45.60 |
1800 | 15.30 | 50.10 |
2000 | 16.10 | 53.00 |
Length: 100m/200m/305m/500m, according to your requirements;
Packing: coil/ paper reel/plastic reel/wooden drum, ect.
75 OHMS
--Braid cable
RG59 RG6 RG11
--Trunk cable
QR500
50 OHMS
RG58 RG213 RG214 8D-FB
5D-FB LMR400 LMR240 LMR600
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
