Popular!! China manufacture high quality car antenna rg174 50 ohm coaxial cable
RG174 SPECS

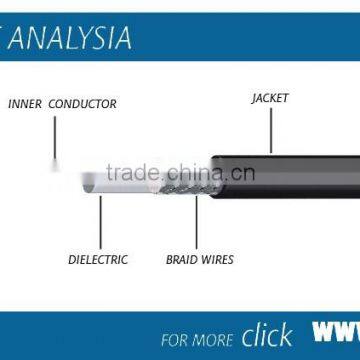

1) Construction | ||
Center Conductor: | 7*0.16mm(0.48mm) BC/CCS | |
Dielectric: | 1.9mm±0.05mm PE | |
Shield: | TC Braiding | |
Braid Coverage: | 90% | |
Jacket: | 2.7±0.10mm PVC | |
Jelly/APD | Per Customer’ Special Requirement | |
2) Characteristics | ||
Sparker Test: | 3000VAC | |
Impedance: | 50±2 Ohm | |
Capacitance: | 100±3pF/m | |
Velocity of Propagation: | 66% | |
Return Loss: | 22dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
10 | 2.99 | 9.8 |
100 | 9.50 | 31.0 |
400 | 22.57 | 74.0 |
1000 | 36.60 | 120.0 |
2000 | 51.85 | 170.0 |
3000 | 64.05 | 210.0 |
Length: 100m/200m/305m/500m, according to your requirements;
Packing: coil/ paper reel/plastic reel/wooden durm, ect.
50 OHMS
RG58 RG213 RG214 8D-FB
5D-FB LMR400 LMR240 LMR600
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
