RG223 50 Ohm Coaxial Cable for Telecommunication

FOB Price

US$ 0.1 - 1 / Meter

5000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

HOT Sale China manufacture high quality car antenna rg223 50 ohm coaxial cable

Product Description

RG223 SPECS

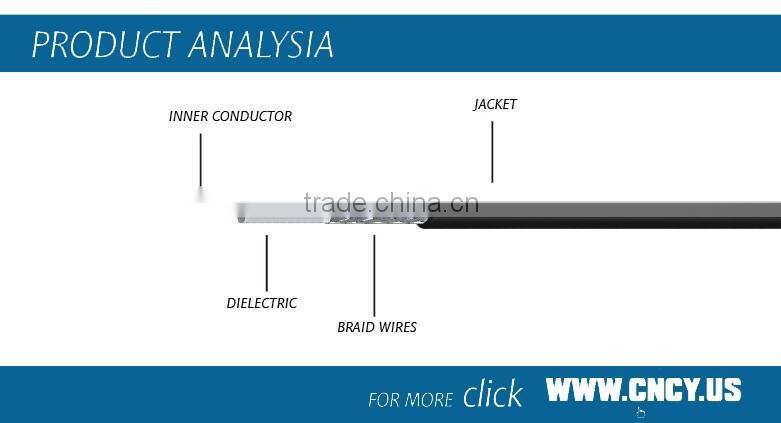

1) Construction
Center Conductor:	0.90±0.01mm SC/TC
Dielectric:	3.2mm±0.05mm PE
Shield:	SC Braiding
Braid Coverage:	90%
Jacket:	5.4±0.10mm PVC
Jelly/APD	Per Customer’ Special Requirement
2) Characteristics
Sparker Test:	3000VAC
Impedance:	50±2 Ohm
Capacitance:	100±3pF/m
Velocity of Propagation:	66%
Return Loss:	25dB min (5-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
10	9.8	4.40
100	31.0	13.9
400	74.0	29.3
1000	120.0	50.1
2000	170.0	80.0
3000	210.0	98.0

Packaging & Shipping

Length: 100m/200m/305m/500m, according to your requirements;

Packing: coil/ paper reel/plastic reel/wooden durm, ect.

Hot Sale Products

50 OHMS

RG58 RG213 RG214 8D-FB

5D-FB LMR400 LMR240 LMR600
