Help Center4D-FB Coaxial Cable
Related Products
-
QR320 QR 320 Coaxial CableUS$ 0.01 - 1MOQ: 5000 Meters -
LMR Series Coaxial Cable(LMR100/LMR195/LMR200/LMR240/LMR400) Quality ChoiceUS$ 0.01 - 1MOQ: 5000 Meters
-
Low Loss LMR400 Coaxial Cable 300m/rollUS$ 0.01 - 1MOQ: 5000 Meters
-
Low Attenuation Braided Outer Conductor Lmr400 CableUS$ 0.01 - 1MOQ: 5000 Meters
-
Quality Lmr400 Coaxial Cable for TV and VideoUS$ 0.01 - 1MOQ: 5000 Meters

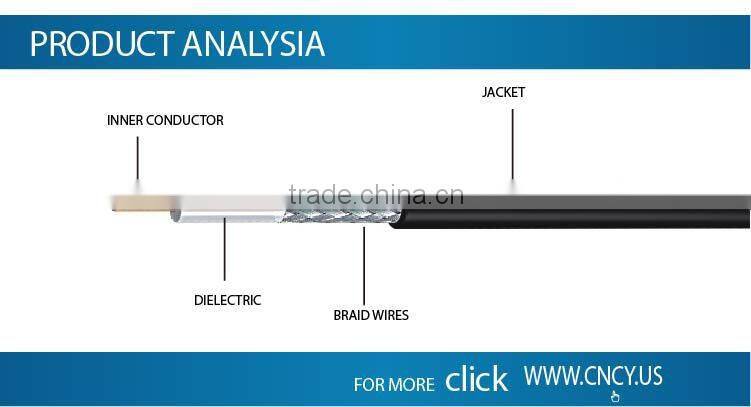

Construction & Basic Characteristics
1) Construction | ||
Center Conductor: |
1.42±0.01mm CU/CCA |
|
Dielectric: |
3.80±0.1mmFoam PE |
|
Shield: |
Al Foil |
|
Braid Coverage: |
35%-85%TC |
|
Jacket: |
6.10±0.10mm PVC/PE |
|
Jelly/APD |
Per Customer’ Special Requirement |
|
2) Characteristics | ||
Sparker Test: |
3000VAC |
|
Impedance: |
50±2 Ohm |
|
Capacitance: |
81±3pF/m |
|
Velocity of Propagation: |
82% |
|
Return Loss: |
20dB min (150-900MHz) |
|
|
16dB min (900-3000MHz) |
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
150 |
3.05 |
10.00 |
200 |
3.51 |
11.50 |
280 |
3.93 |
12.90 |
350 |
5.03 |
16.50 |
400 |
5.37 |
17.60 |
800 |
7.20 |
23.60 |
900 |
7.47 |
24.50 |
1200 |
8.63 |
28.30 |
1500 |
10.22 |
33.50 |
2000 |
11.80 |
38.70 |
3000 |
14.82 |
48.60 |
Length: 100m/200m/305m/500m, according to your requirements;
Packing: coil/ paper reel/plastic reel/wooden durm, ect.
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
Send Inquiry to This Supplier
