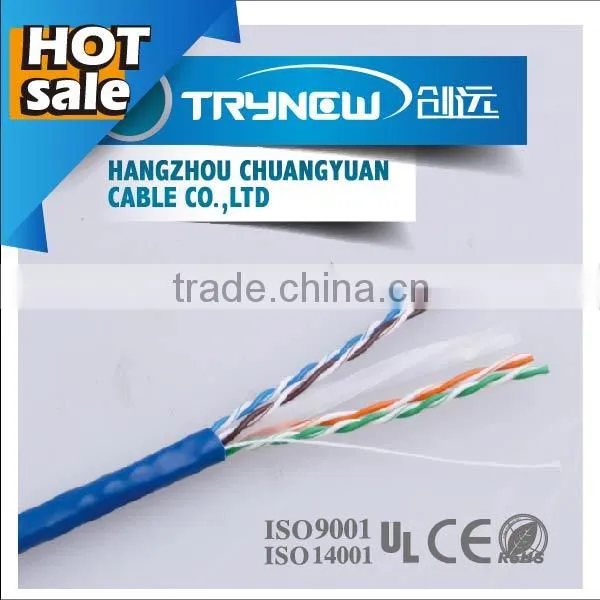

China Cable Factory High Quality Low Voltage Utp Cable Cat6 Price
- NINGBO/SHANGHAI
- T/T Money Gram
You May Like
-
China Cable Factory High Quality Low Voltage Amp Utp Cat 5e Cable
-
China Cable Factory High Quality Low Voltage Pull Box of 305 m Cat5e Utp Cable
-
4D-FB Coaxial Cable
-
QR320 QR 320 Coaxial Cable
-
LMR Series Coaxial Cable(LMR100/LMR195/LMR200/LMR240/LMR400) Quality Choice
-
Low Loss LMR400 Coaxial Cable 300m/roll
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHAUNGYUAN/OEM | |
| Model Number | UTP CAT6 | Type | Cat 6 | |
| Number of Conductors | 8 |
Product Description
1) Construction | ||||||||||
Center Conductor: | 0.565±0.01mm CU/CCA | |||||||||
Dielectric: | 1.03mm PE | |||||||||
No.of Pairs | 4 | |||||||||
Jacket: | 6.3±0.1mm PVC | |||||||||
Remark: | 250MHz | |||||||||
2) Characteristics | ||||||||||
Sparker Test: | 1 | 4 | 8 | 10 | 16 | 20 | 25 | 31.25 | 62.5 | |
Impedance | 100±15 | |||||||||
RL(dB) | 20 | 23 | 25 | 25 | 25 | 25 | 24 | 24 | 22 | |
Attenuation (dB/100m) | 1.9 | 3.7 | 5.3 | 5.9 | 7.5 | 8.4 | 9.5 | 10.6 | 15.4 | |
NEXT (dB/100m) | 74.3 | 65.3 | 60.3 | 59.3 | 56.3 | 54.8 | 53.4 | 51.9 | 47.4 | |
ELFEXT (dB/100m) | 67.8 | 55.8 | 49.7 | 47.8 | 43.7 | 41.8 | 39.8 | 37.9 | 31.9 | |
PS NEXT (dB/100m) | 72.3 | 63.3 | 58.8 | 57.3 | 54.3 | 52.8 | 51.4 | 49.9 | 45.4 | |
PS ELFEXT (dB/100m) | 64.8 | 57.7 | 46.7 | 44.8 | 40.7 | 38.7 | 36.8 | 34.9 | 28.8 | |
Delay Skew (ns/100m) | ≤45 | |||||||||
Propagation Speed (m/s) | 0.6c | |||||||||
Sparker Test: | 100 | 155 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | ||||||
Impedance | 100±15 | 100±20 | ||||||||||||||
RL(dB) | 21 | 21 | 21 | 18 | 17 | 16 | 16 | 16 | 15 | 15 | ||||||
Attenuation (dB/100m) | 19.8 | 25.1 | 29.0 | 32.8 | 36.4 | 39.8 | 43.0 | 46.3 | 48.9 | 51.8 | ||||||
NEXT (dB/100m) | 44.3 | 41.5 | 39.8 | 38.3 | 37.2 | 36.2 | 35.3 | 34.5 | 33.8 | 33.2 | ||||||
ELFEXT (dB/100m) | 27.8 | 23.9 | 21.8 | 19.8 | 18.2 | 16.9 | 15.7 | 14.7 | 13.8 | 12.9 | ||||||
PS NEXT (dB/100m) | 42.3 | 39.5 | 37.8 | 36.3 | 35.2 | 34.2 | 33.7 | 32.5 | 31.8 | 31.2 | ||||||
PS ELFEXT (dB/100m) | 24.8 | 20.9 | 18.7 | 16.8 | 15.2 | 13.9 | 12.7 | 11.7 | 10.8 | 9.9 | ||||||
Delay Skew (ns/100m) | ≤45 | |||||||||||||||
Propagation Speed (m/s) | 0.6c | |||||||||||||||

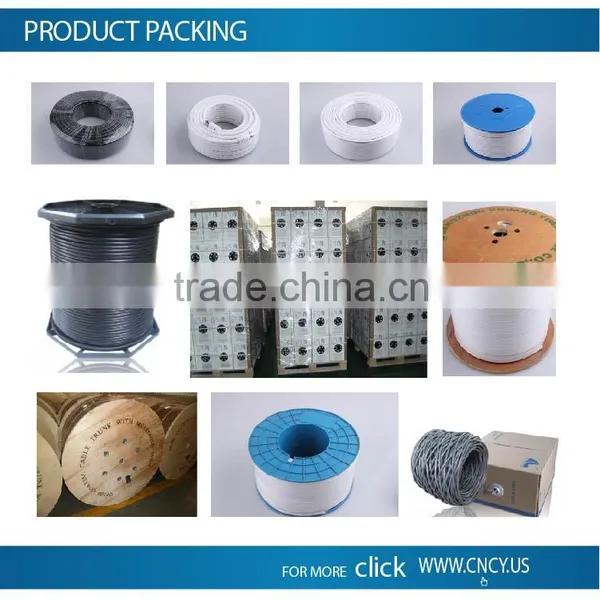

305/1000ft/Pull Box 2Box/Carton
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
