Specifications
1.fire sealing gasket factory2.material:ceramic fiber
3.45%AL2O3
4.sealing insulation/heat protection
5.density 280kg/m3
Applications
Peep holes for the industrial furnace
Patch holes for thermometer
Nozzle and door sealing for the industrial furnace
Non-ferrous metal molten channel
Lining for pad,cap,of found,electrical equipment connect gaskets
Application:
Electric equipment:
1.Thermal and electric insulation material for electric heating device
2.Thermal resistance for sealing washer, insulation gaskets
Automotive industry:
1.Sound absorber
2.Thermal insulation
3.Sound absorption function for auto exhaust pipe, heat shield.
Furnace construction:
1.Insulation, high-temperature material for industrial furnaces, ladles and submerged nozzle.
2.Asbestos backup.
3.Expansion joint sealing and filling insulation (vehicle, pipeline, door and so on)
4.The ceramic fiber lining for high temperature furnaces or heating equipment
5.Inspecting hole in industry furnace, expansion joint
6.Furnace door the burner set pieces and inserting hole of thermometer

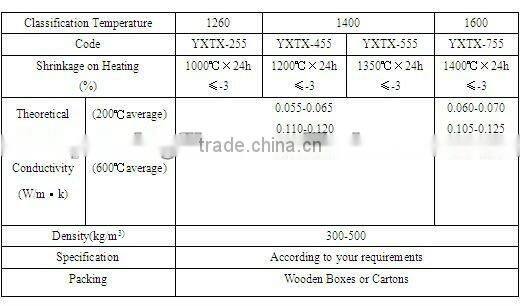

Technical Index
Classification Temperature |
1260 |
1400 |
1400 |
||
Code |
YXTX-255 |
YXTX-455 |
YXTX-555 |
YXTX-755 |
|
|
Shrinkage on Heating (%) |
1000°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
1000°CX24h ≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k)
|
(200°Caverage) (400°Caverage) (600°Caverage)
|
0.055-0.065 0.110-0.120 0.160-0.170 |
0.060-0.070 0.105-0.125 0.170-0.180 |
||
Density(kg/m3) |
300-500 |
||||
Specification |
According to your requirements |
||||
Packing |
Wooden Boxes or Cartons |
||||
